ST Development Board STM32F407VGT6 ST-LINK/V2 Integration STM32F4DISCOVERY
US$ 10 - 100
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
S
Model Number:
STM32F407VGT6
Payment & Shipping
Payment Methods:
Port of Shipment:
HK
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
STM32 Development Board Core Board /STM32F407VGT6 Minimum System Board M4 168MHzUS$ 20 - 100MOQ: 1 Piece -
STM32F407VGT6100 STM32-ETH-47V/UET Pin With Ethernet Core Board FourUS$ 20 - 100MOQ: 1 Piece
-
5050 Pink LED Strip Non-waterproof 5M 300Leds Fleible Strip String Light DC 12V Led Ribbon Tape Bombillas Led Lamp LightUS$ 0.1 - 100MOQ: 1 Piece
-
5M / Roll 5050 SMD RGB LED Strip Light + DC 12V 3A Power Supply Adapter EU / US Plug Transformer + 44Keys IR Remote ControllerUS$ 0.1 - 100MOQ: 1 Piece
-
3A 12V DC 36W Power Supply LED Driver Adapter Transformer Switch For Led Strip Lighting 3528 5050 LED Ribbon With CE ROHS FCCUS$ 0.1 - 100MOQ: 1 Piece
Brand Name
S
Model Number
STM32F407VGT6
[type] STM32F4DISCOVERY
STM32F4DISCOVERY is the ST company launched a high-performance STM32F4 series designed for the Corte-M4 development board.
The development board based on the STM32F407VGT6 design, but also integrates the ST-LINK/V2 simulation download (but only provides the SWD interface), eempt from your other procurement simulator or download the trouble. Added sensor LIS302DL or LIS3DSH, digital microphone MP45DT02, speaker driver and a USB Micro-AB interface.
ST to provide a wealth of sample procedures, so that you more quickly get started STM32F4 microcontroller. Let's release your creativity!
[key features]
-
STM32F407VGT6 micro controller
- TenFLASH 192KB, RAM 24KB
- Ten0 pin, LQFP package
- ST-Link/V2 development board integrated simulation debugger (but only to provide eternal SWD interface)
-
Indicator light
- LD1:USB communication indicator light
- LD2:3.3V power indicator light
- LD3: application indicator
- LD4: application indicator
- LD5: application indicator
- LD6: application indicator
- OTG LED LD7:USB (VBus)
- OTG LED LD8:USB (over-current)
-
Key
- Reset button
- Application button
-
Power Supply
- By USB to get electricity 5V
- Eternal power supply 5V and 3V
-
OTG FS USB
- micro-AB
-
sensor
- Or LIS3DSH LIS302DL (MEMS 3-ais accelerometer ST)
- MP45DT02 (MEMS audio sensor omni-directional, digital microphone ST)
-
Audio driver
- CS43L22 (DAC with integrated audio class D speaker driver)
- Rules are drawn out of all the IO is not occupied, easy to do the relevant eperiment
[development information]
STM32F4DISCOVERY there is no distribution of CD, please visit the official website of ST Download

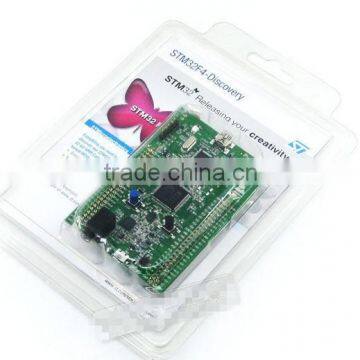

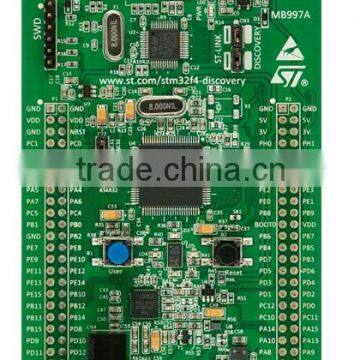

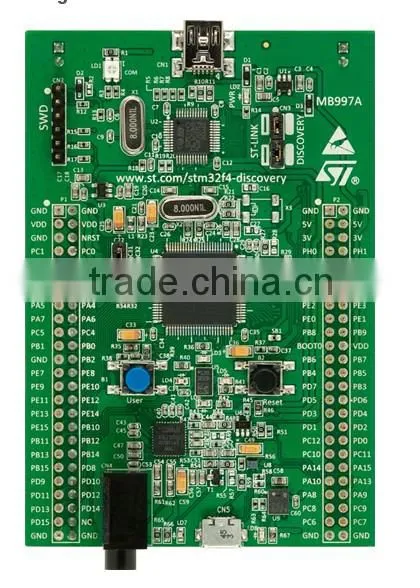

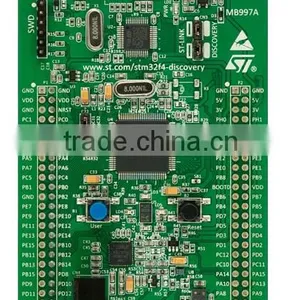

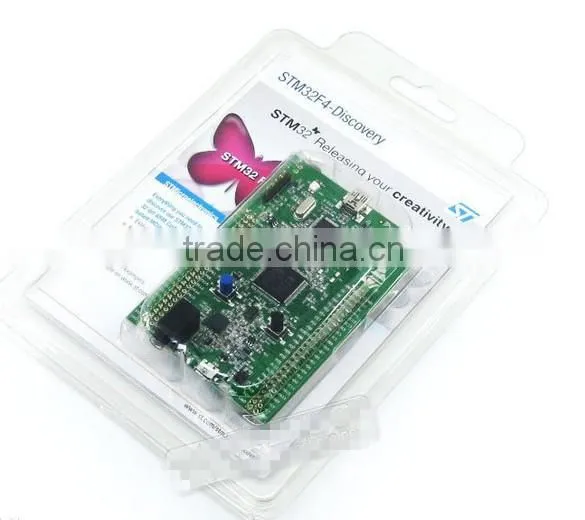

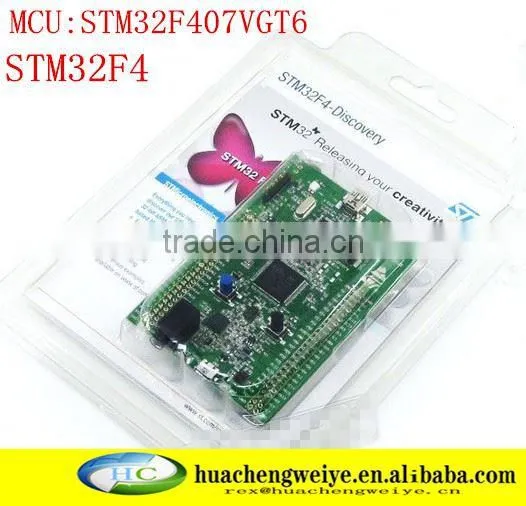

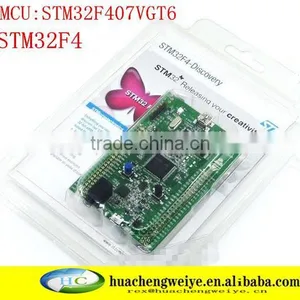

Product picture:
