26inch Full HD Multitouch Touch Screen Monitor
- 200000 Piece / Pieces per Month
- Beijing /Tianjin
- T/T Credit Card
- negative segment character running machine lcd display,practical STN,blue backlight, fitness equipment
- digital fire alarm installation module display, HTN segment display with blue led lcd panel
- negative autoreclose circuit-breaker lcd display, segment module with blue led
- charger negative character lcd display,white led ,battery segment small flexible display
- character small charger lcd display ,custom battery display ,white led
- segment positive temperature time clock lcd display,blue TN white backlight
Product Details
Place of Origin: | Beijing, China | Brand Name: | LeadingTouch | Model Number: | TM-2658 |
Type: | TFT |
Product Description
Specifications
1,26inch open frame touch screen monitor2, Multitouch infrared technology
3, Full HD (resolution)
LeadingTouch is professsional manufacture of touch screen and touch monitor.
TM-2658 is 26inch open frame (complet housing) touch screen monitor, infrared touch technology, Full HD resolution, good choice for Kiosk, ATM, Gaming, Advertising, Vender Machine or widely application.
Model | TM-2658 | |||
Description | 26" Rear Mount (Open Frame) Touch Monitor | |||
Case/Bezel Color | Black | |||
Display | 16:9 | |||
Optimal (native) Resolution | 1920×1080 | |||
Sychronzation Range | Horizontal: 65-70 kHz, Vertical: 57-63 Hz | |||
Useful Screen Area | 576mm × 324mm | |||
Colors | 1.06B | |||
Brightness | LCD panel: 400 cd/m2 | |||
Pixel Pitch | 0.3 × 0.3 mm | |||
Response Time | 8ms (Typically) | |||
Contrast Ratio | 1000:1 (Typical) | |||
Viewing Angle(CR≥10) | Horizontal: ±89° or 178° total | |||
Vertical: ±89° or 178° total | ||||
Backlight Lamp Life | 50,000 hrs to 1/2 brightness | |||
Input Video Format | VGA Analog/ DVI Video/ HDMI | |||
Input Video Signal Connector | VGA/ DVI - D | |||
On Screen Display(OSD) | Controls (back): power, left, right, menu, VGA/ DVI | |||
Touch Technology | LeadingTouch Infrared | |||
Touch Interface | USB interface | |||
Mounting Options | VESA Mount (75mm or 100mm) , Side Mount or Front Mount with optional bracket | |||
Power Supply | 100-240VAC, 50-60Hz | |||
Power Consumption | 124W Max | |||
Temperature Range | Operating: 0°C to 50°C; Storage: -20°C to 60°C | |||
Humidity Range (no condensing) | Operating: 20%-80%; Storage: 10%-90% | |||
Dimension and Weight | Item | QTY (UNIT) | Dimension (mm) | Weight (KGS) |
Touch Monitor | 1 | |||
Box After Packing | 1 | |||
Box After Packing | ||||
Warranty | 1 year | |||
Agency Approvals | FCC, CE, RoHS |
Factory
Production Line

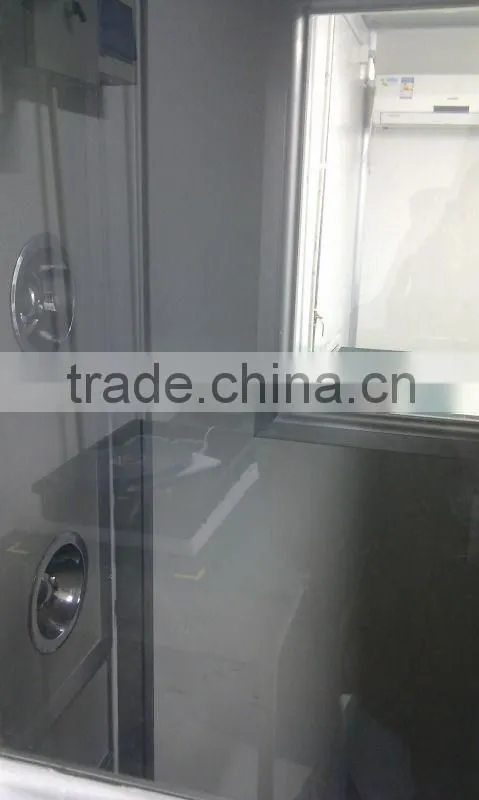

Million Clean Room

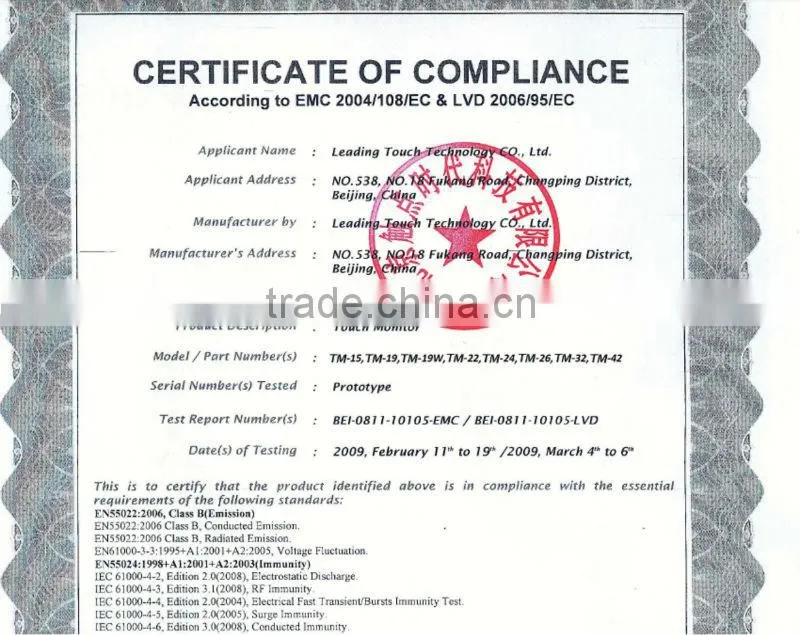

Certifaction CE
Certification FCC
ISO Certification
LeadingTouch is always focus on product with good quality and service to customer.
