Long lifetime solar water heater element
- 100000 Piece / Pieces per Month
- qingdao
- T/T
- Ozone generator drinking water treatment (3000L/HR ,150bottles/HR)
- 2-6g/hr ozone generator air purifier,air cleaner,air freshener
- 3-10 LPM PSA oxygen plant for industrial use
- 3-10 LPM PSA oxygen generator for industrial use
- 50G/Hr ozone sterilizer drinking water purification
- 20 G/Hr water treatment ozone generator
Product Details
Type: | Activated Carbon | Use: | Other, Household Pre-Filtration, water treatment filter cartridge | Certification: | CE |
Power (W): | 80 | Voltage (V): | 220 | Place of Origin: | Henan, China |
Brand Name: | D.KING, D.KING | Model Number: | XLDM-20*, XLDM, RP, CR |
Product Description
Specifications
solar water heater element1.Material:PP/stainless steel ect.
2 Timely delivery
3 Manufacturer, factory
Long lifetime solar water heater element

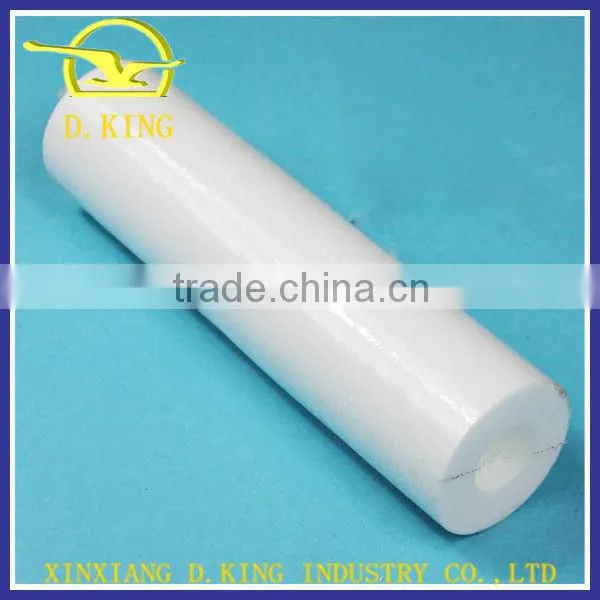

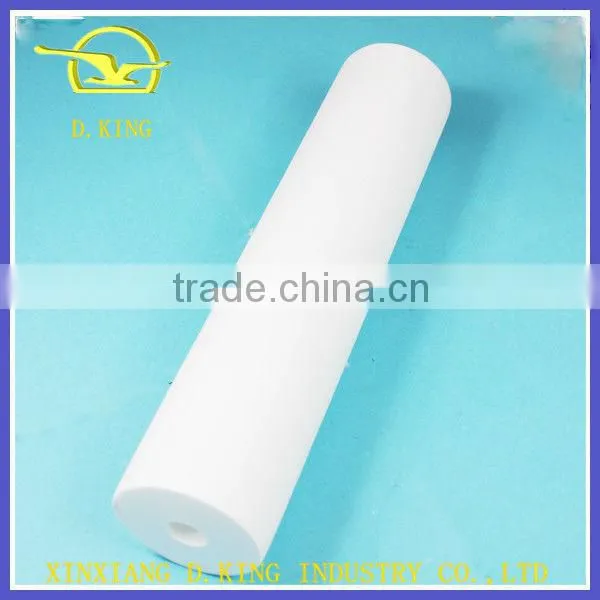

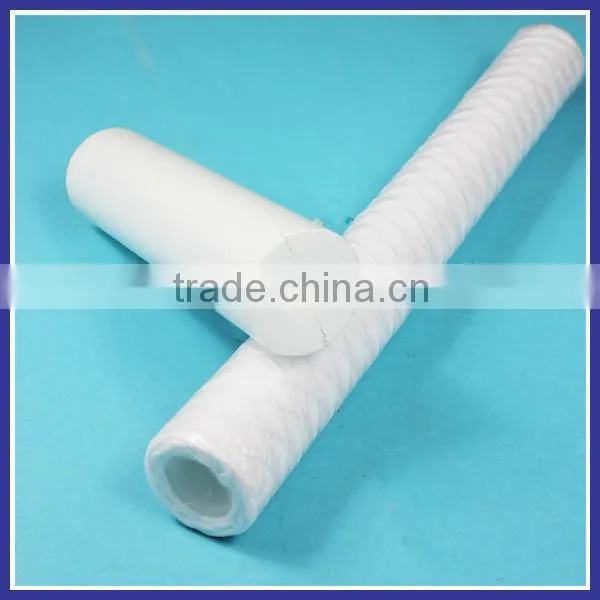

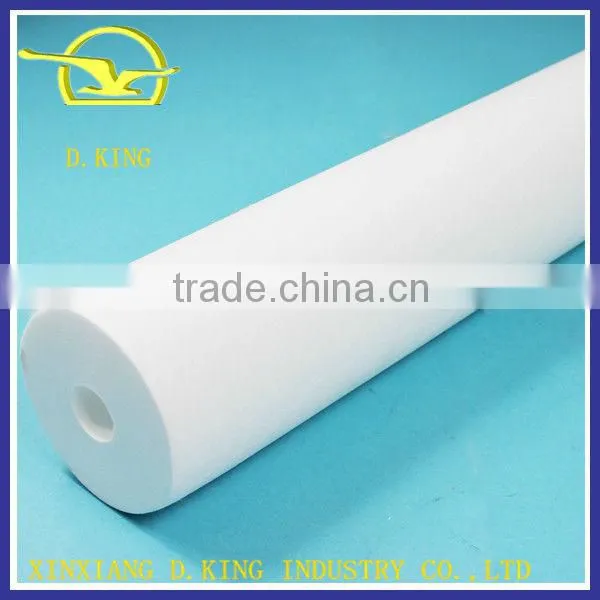

solar water filter heater element pictures
Solar Water Filter Heater Element Introduction
The Ultipleat High Flow filter is suited for applications such as cooling water, pre-RO, and resin trap filtration.
It is a large diameter, coreless, single open-ended, pleated cartridge with an inside to outside flow pattern.
The filters patented crescentshaped pleat geometry, combined with its large 6"/ 152 mm diameter, reduces the
number of filters and size of housing required. The cartridge is also available in a wide range of Pall media types for
other applications.
Solar Water Filter Heater Element Benefits
· Up to 50% smaller filter system possible
· Up to forty times fewer elements to change out
· Very high flow rates per filter cartridge, up to 500 gpm / 114 m3/hr
· Available in 20"/ 508 mm, 40" / 1016 mm and 60" / 1524 mm lengths
· Coreless construction to minimize waste disposal
· Absolute rated filter medium for reproducible performance
· Inside to outside flow configuration - all contaminants held within the single open ended filter
Materials of Construction
· Filter Medium:
Pleated polypropylene depth structure
· Support/Drainage:
Polypropylene
· Endcaps:
Glass filled polypropylene
· O-ring:
Ethylene propylene
Solar Water Filter Heater Element Removal Ratings
· 3.2 µm, 4.5 µm, 10 µm, 20 µm, 40 µm, 70 µm, 100 µm
Solar Water Filter Heater Element Configuration
· Single open end, 6" / 152 mm diameter filter
Solar Water Filter Element Heater Operating Conditions
· Maximum Operating Temperature:
180°F / 82°C
· Maximum Differential Pressure1(nominal inside to outside flow):
50 psid at 180°F / 3.4 bar at 82°C
Model and Size
Name | Model | Length | Filtr. | 0D | Temperature | Flow (L/min) | Press. | Loss Pressure (Mpa) | |
Initial | Max | ||||||||
Big flow | XLDM-20×* | 20 | 1~70 | 6 | 70 | 632 | 20°C:0.34 | ≤0.08 | 0.25 |
XLDM-40×* | 1260 | ||||||||
XLDM-60×* | 1890 |
Name | Model | Length | Filtr. | 0D | ID | Temperature | Press. | Loss pressure (Mpa) | |
Initial | Max | ||||||||
Melt&spurts | RP-L×micron | 5~60 | 1~50 | φ60 | φ28 | ≤60 | 0.5 | ≤0.02 | 0.2 |
Name | Model | Length | Filtr. | 0D | ID | Temperature | Press. | Loss pressure(Mpa) | |
Initial | Max | ||||||||
Yarn-wound | CR-L×micron | 5~60 | 1~50 | φ60 | φ28 | ≤70 or ≤90 | 0.5 | ≤0.02 | 0.2 |
