Specifications
1.AWM Cable Ethernet Network Cable2.1 year warranty
3.UL ROHS ISO Compliance
4.7 years professional cable manufacturer
AWM Cable Ethernet Network Cable
Specification
Inner Conductor |
Number of Pairs |
4 |
Total Number of Conductors |
8 |
|
Conductor Material |
BC-Solid Bare Copper |
|
Wire Gage |
24AWG |
|
Conductor Diam(ø)mm |
Φ0.50±0.03mm |
|
Elongation |
≥15% |
|
Insulation |
Insulation Material |
HDPE - Polyethylene |
Nom. Thickness |
0.215mm |
|
Insulation Dia. |
Φ0.95±0.05mm |
|
Elongation |
≥300% |
|
Color Cord |
Pair 1:White-Blue & Blue; Pair 2:White-Orange & Orange Pair 3:White-Green & Green; Pair 4:White-Brown & Brown |
|
Paired |
Length of Lay |
<30mm |
Filled |
Jelly filled |
No |
Cabling |
Order of the Pair |
See the Cross Section |
Out Sheath |
Sheath Material |
PVC (Flame Retardant / RoHS ...) |
Color |
Blue |
|
Rip Cord |
200D×3 |
|
Nom. Thickness |
0.60±0.05mm |
|
Min. Thickness |
0.55mm |
|
Max. overall Dia. |
Φ5.30±0.3mm |

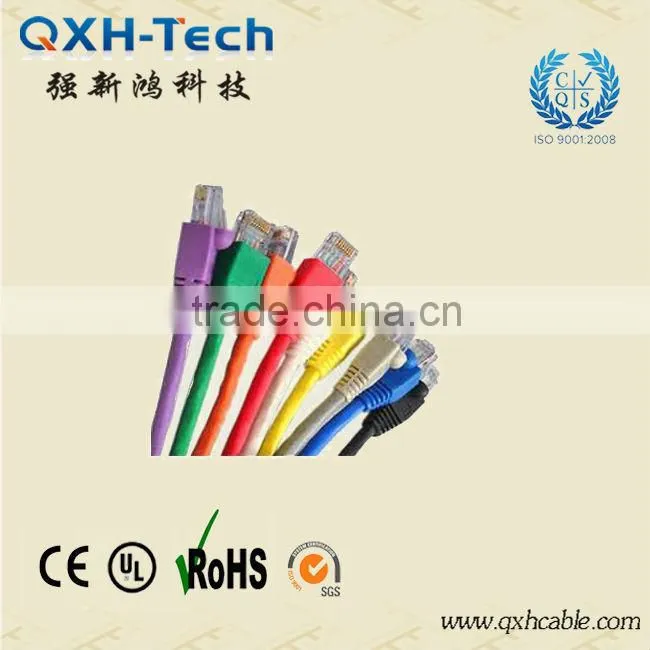

Photo for network cable
Hot sell network cable Vendita calda cavo lan e rete
Certification
OUR FACROTY PICTURE
