AWM 2835 Flat RJ45 FTP Cable High Speed Factory Supply
Specifications:
Wire Spec: AWM 2835 24AWG/4P 75°c 30V FT2 E164571 ETL VERIFIED CAT..5e UTP TIA/EIA568-B..2
CM 01870626FT UL Compliant are Available
Connector Spec: RJ11 / RJ12 / RJ45 / RJ48
3µ,6µ,15µ,30µ,50µ Male Gold Plated
FCC, UL Standard are Available
Cable Spec:
1. Mould : Normal Mould, Mould with a Boot
2. Color: Blue,Beige,Black,Green,Red,Grey and Yellow or other color you request
3. Length: 1.5m / 3m / on request
4. OD: 6.0mm
5. Shiedlding: None Foil,AL Foil
Conductor |
Material/Size |
Solid Bare Copper/24AWG |
|
Insulation |
Material |
PE or FRHDPE |
Thickness |
Nominal: 0.19 mm |
|
Diameter |
Nominal: 0.96 mm |
|
|
Colors
|
Blue/White/grey/yellow. |
|
| ||
Unaged Elongation |
Min. 300% |
|
Unaged Tensile Strength |
Min. 1.683 Kgf/mm2 |
|
|
Jacket
|
Material |
PVC or FRPVC, Low-Smoke |
Thickness |
Nominal: 0.5 mm |
|
Diameter |
Nominal: 5.2 mm |
|
|
Color
|
Assorted upon request |
|
Unaged Elongation |
Min. 125% |
|
Unaged Tensile Strength |
Min. 0.917 Kgf/mm2 |
|
Aging @ 100°C for 168Hrs |
Min. elongation retention:75% |
|
|
Min. tensile strength retention: 70% |
Features:
- All Material of our Category lan cables are RoHS compliance
- 100% tested wiring sequence and continuity
- Our Cat5e and Cat6 LAN cable Supports high density installations
- Our Cat5e and Cat6 LAN cable is exceeds cordage requirements of TIA/EIA 568B and ISO/IEC 118801
- Our Cat5e and Cat6 LAN cable Maintains channel performance
- Our Cat5e and Cat6 LAN cable Strong component performance
- Our Cat5e and Cat6 LAN cable Etherent Hi-Performance High Quality 550MHz Cat6 UTP Lan Cables
- Our Cat5e and Cat6 LAN cable Standard: Meets or exceeds Category 6 TIA/EIA- 568-B-2.1, draft 9
- Our Cat5e and Cat6 LAN cable Perfect in conjunction with 10 and 100 Base-T, and even 1000 Base-T networks
- Constructed of High-Performance Cat 5E cable suitable for 1000MHZ High-speed data applications, gigabit ethernet, fast ethernet, 155Mbps TP-PMD/CDDI .
- Boots offer cable-end color ID, strain relief and RJ45 plug tab protection from snagging on cables or connectors when routing in ceiling and under floors, suitable for indoor installations.
Electrical Characteristic:
1.1.0-100.0MHz Impedance (ohms):100 +/- 15
2.1.0-350.0MHz Delay Skew (ns/100m):<=45
3.Pair-to-Ground Capacitance Unbalance (pF/100m):<=330
4.Max. Conductor DC Resistance 20 degree(ohms/km):93.8
5.Resistance Unbalance (%):<=5
Applications:
Designed For: Network Adapters, Hubs, Switches, Routers, DSL/Cable Modems, Patch Panels and other twisted-pair applications
Packing Details:
| Cable Length | Quantity Per Carton | Carton Size | Gross Weight | Diameters |
| 2Meter | 200pcs | 46*30*18mm | 6kg | 0.0249m3 |

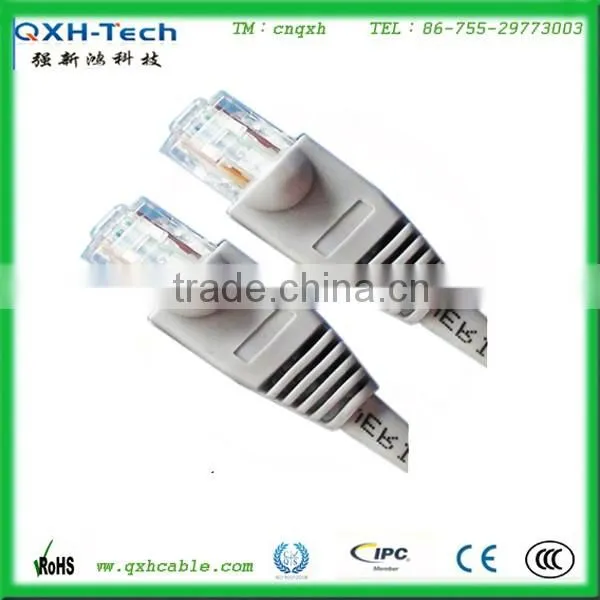

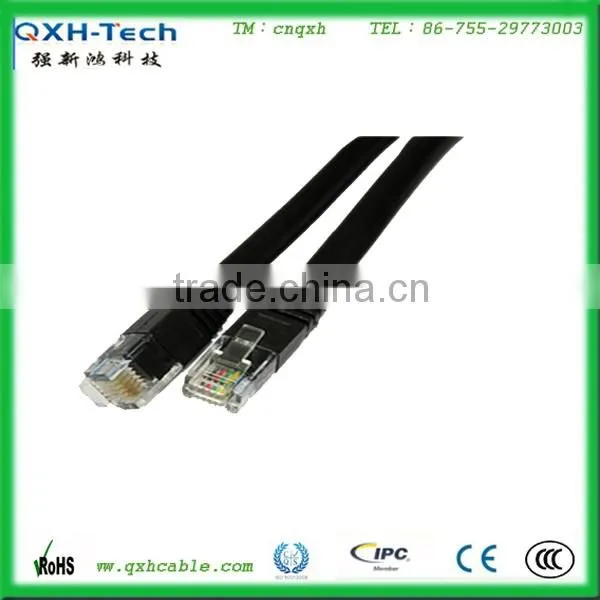

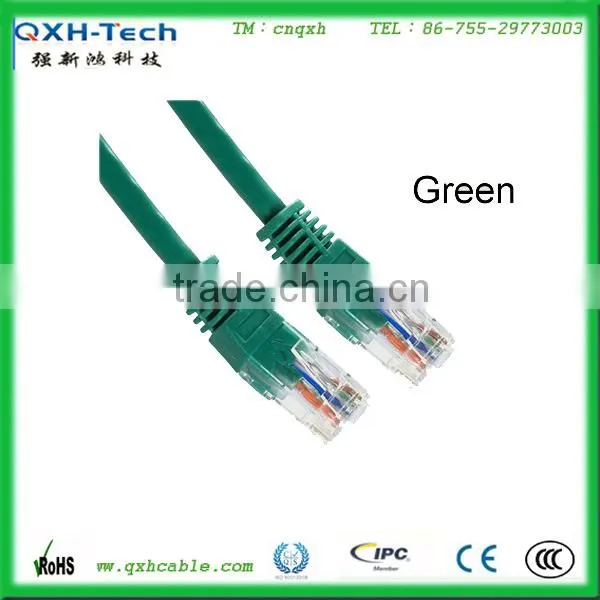

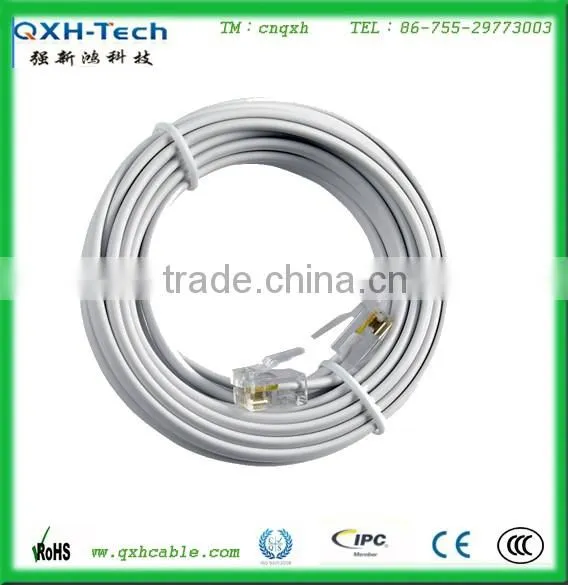

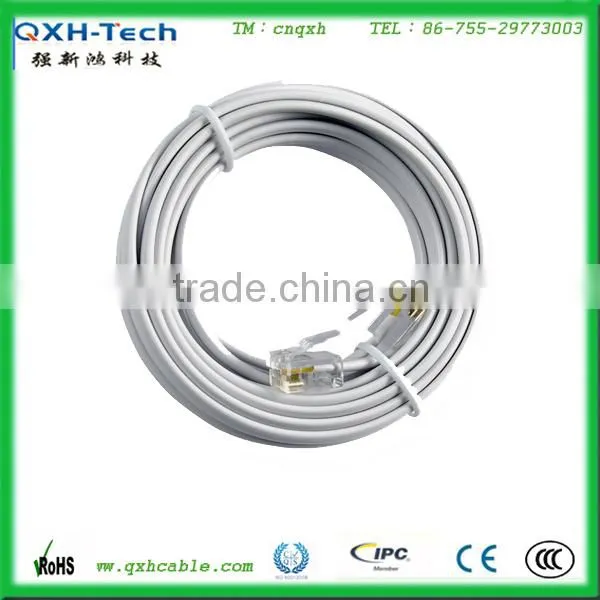

Product Photo:
Certificate Photo:
Factory Photo:
