Specifications
1.cat6 patch cable2.free OEM design
3.24AWG*4P,copper
4.factory price
5.7yrs experience
Network cable UTP Cat6 Patch cable
Cat6 network patch cable
cat6 network patch cord
Description:
Constructed of High-Performance Cat 6 cable suitable for 1000MHZ High-speed data applications, gigabit ethernet, fast ethernet, 155Mbps TP-PMD/CDDI . Boots offer cable-end color ID, strain relief and RJ45 plug tab protection from snagging on cables or connectors when routing in ceiling and under floors, suitable for indoor installations.
Cat6 Patch cable Features and benefits
1. 6-50 micron RJ-45 staggered gold plated connectors .
2. Fitted with strain relief boots
3. With or without reports made to the order
4. 100% tested wiring sequence and continuity
5. Excellent attenuation and crosstalk characteristics
6. With or without reports made to the order
7. Connector with staggered pin configuration to limit cross talk .
8. Exceed Category 5E requirement .
9. They are available in a variety of the lengths
Cat6 Patch cable Technical data
Inner Conductor |
Number of Pairs |
4 |
Total Number of Conductors |
8 |
|
Conductor Material |
BC-Solid Bare Copper |
|
Wire Gage |
24AWG |
|
Conductor Diam(ø)mm |
Φ0.50±0.03mm |
|
Elongation |
≥15% |
|
Insulation |
Insulation Material |
HDPE - Polyethylene |
Nom. Thickness |
0.215mm |
|
Insulation Dia. |
Φ0.95±0.05mm |
|
Elongation |
≥300% |
|
Color Cord |
Pair 1:White-Blue & Blue; Pair 2:White-Orange & Orange Pair 3:White-Green & Green; Pair 4:White-Brown & Brown |
|
Paired |
Length of Lay |
<30mm |
Filled |
Jelly filled |
No |
Cabling |
Order of the Pair |
See the Cross Section |
Out Sheath |
Sheath Material |
PVC (Flame Retardant / RoHS ...) |
Color |
Blue |
|
Rip Cord |
200D×3 |
|
Nom. Thickness |
0.60±0.05mm |
|
Min. Thickness |
0.55mm |
|
Max. overall Dia. |
Φ5.30±0.3mm |
Cat6 Patch cable assembly specification
Conductor |
Insulation |
Core Number |
Filler |
Shielded |
Braid |
Jacket |
||||
AWG |
Specification mm |
Material |
Thickness (NOM.mm) |
Material |
Thickness (NOM.mm) |
OD (NOM.mm) |
||||
24 |
7/0.20 |
HD-PE |
0.20 |
4P |
PE Cross |
AL/Mylar |
TC or AL-MG |
PVC or LSNH |
0.60 |
7.8 |
26 |
7/0.16 |
HD-PE |
0.20 |
4P |
PE Cross |
AL/Mylar |
TC or AL-MG |
PVC or LSNH |
0.60 |
6.8 |
28 |
7/0.12 |
HD-PE |
0.20 |
4P |
PE Cross |
AL/Mylar |
TC or AL-MG |
PVC or LSNH |
0.60 |
6.5 |
Cat6 Patch cable Electrical Characteristic:
1.1.0-100.0MHz Impedance (ohms):100 +/- 15
2.1.0-350.0MHz Delay Skew (ns/100m):<=45
3.Pair-to-Ground Capacitance Unbalance (pF/100m):<=330
4.Max. Conductor DC Resistance 20 degree(ohms/km):93.8
5.Resistance Unbalance (%):<=5
Our Lan Cable Pictures for you reference:

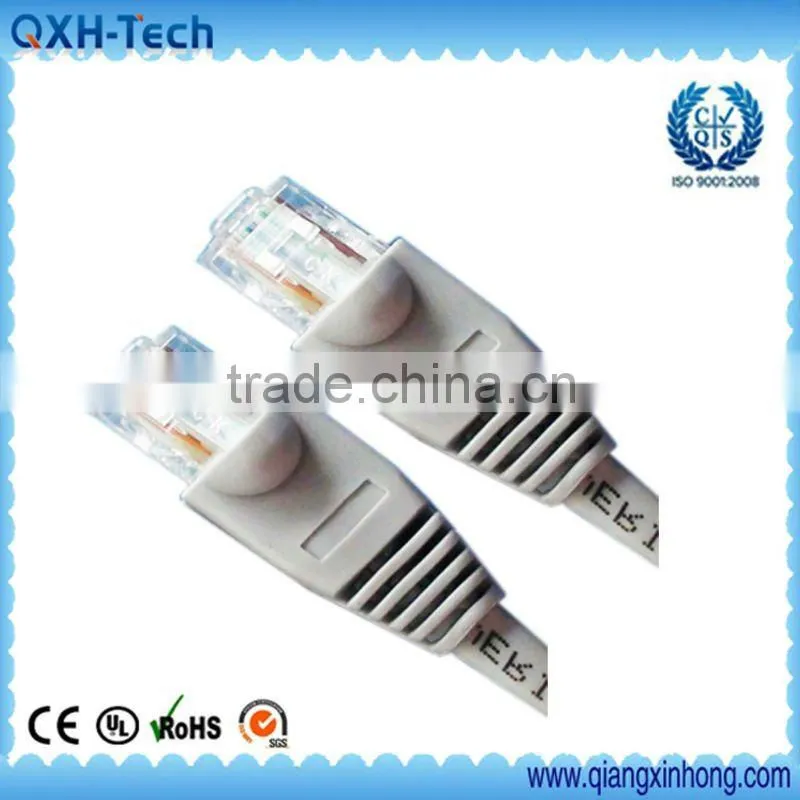

White Cat6 lan patch cable

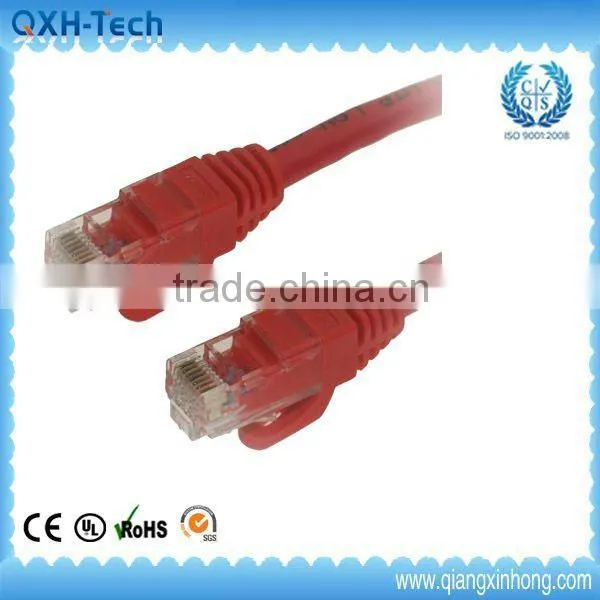

Red Cat6 LAN patch cable

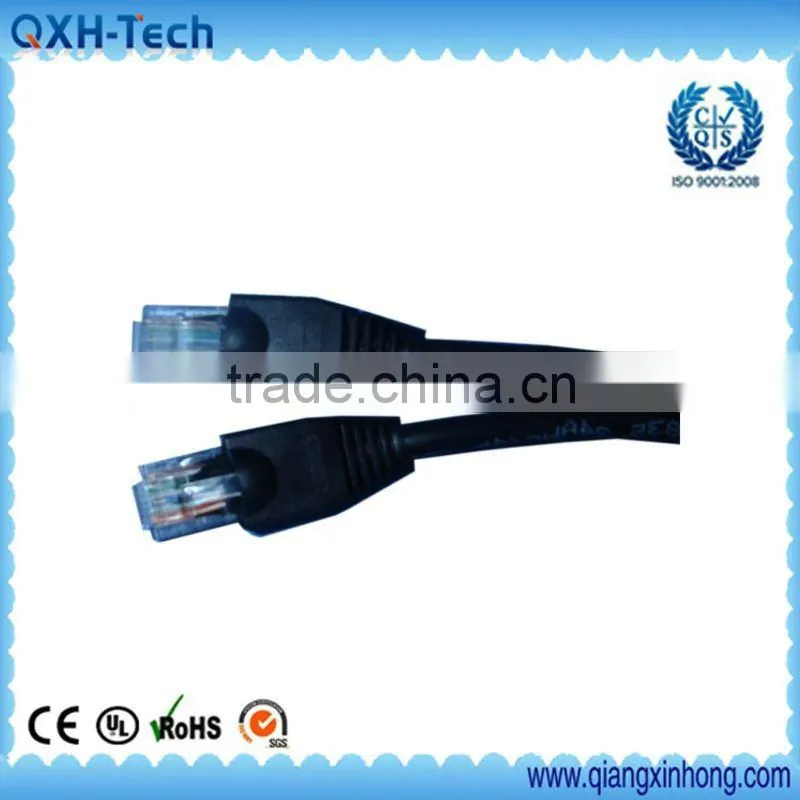

Black cat6 Lan patch cable
Welcom to viste our factory!
