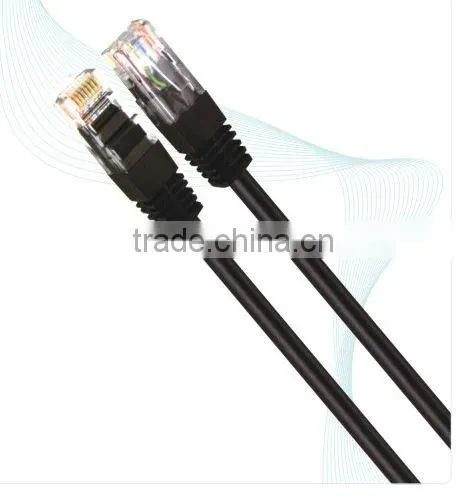

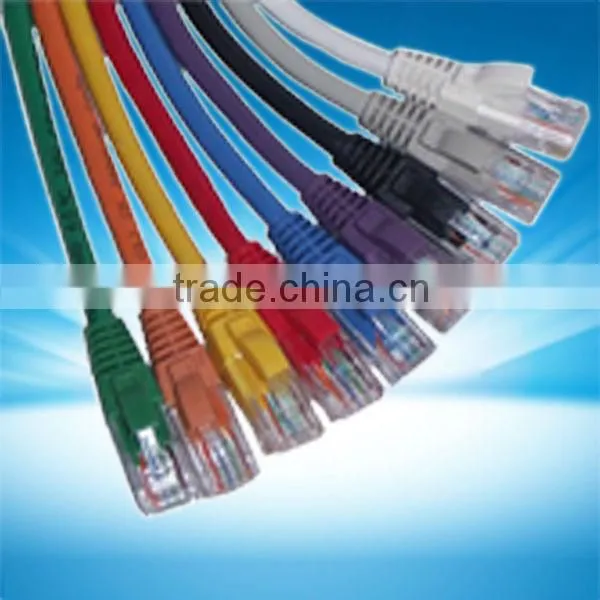

Cat6 Patch Cable RJ45

Name: Cat6 Patch Cable RJ45
Brand: QXH-TECH
SKU: 117648265
Availability: InStock

US$ 0.6 - 0.7 MOQ: 300 Rolls

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

QXH-TECH

Model Number:

012010301

Shenzhen Qiangxinhong Technical Development Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen/HK

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name QXH-TECH

Model Number 012010301

Type Cat 6

Number of Conductors 8

Specifications

1.Used in Ethernet
2.CCA and CU conductor
3.RoHS Complied PVC, PE or LSOH Jacket
4.Complied to TIA/EIA-568B & ISO/IEC 11801

Application

· Ethernet 10Base-T,100Base-T4,100Base-TX,

100Base-VG-ANYLAN, 155 Mbps ATM,

622Mbps ATM, 1000Base-T

Telephone

Multimedia

Trunk wiring

· 10Base-T,100Base-T4,100Base-TX,

100Base-VG-ANYLAN, 155 Mbps ATM,

622Mbps ATM, 1000Base-T

Cable Parameters:

Item No.	Construction	Nominal Conductor Dimension (MM)	Nominal Insulation Dimension (MM)	Pairs	Overall Diameter (mm)	Type of Jacket	Remark
DJH-2001	UTP	0.575	1.03	4	5.8	PVC/LSZH
DJH-2003	UTP	0.575	1.03	4	6.1	PE	Outdoor cable
DJH-2006	UTP	0.575	1.04	4	7.5	PVC+PE	Outdoor Double Jacket
DJH-2005	UTP	7/0.25	1.06	4	6.3	PVC/LSZH

Technical data

Inner Conductor	Number of Pairs	4
	Total Number of Conductors	8
	Conductor Material	BC-Solid Bare Copper
	Wire Gage	23AWG
	Conductor Diam. (ø)mm	Φ 0.575±0.03mm
	Elongation	≥ 15%
Insulation	Insulation Material	HDPE - Polyethylene
	Nom. Thickness	0.233mm
	Insulation Dia.	Φ 1.03±0.05mm
	Elongation	≥ 300%
	Color Cord	Pair 1: White-Blue & Blue; Pair 2: White-Orange & Orange Pair 3: White-Green & Green; Pair 4: White-Brown & Brown
Paired	Length of Lay	<20mm
Spacer	Material	HDPE
Spacer	Diameter	*4.50.45**
Cabling	Order of the Pair	See the Cross Section
Out Sheath	Sheath Material	PVC ( Flame Retardant / RoHS ...)
	Color	Black
	Rip Cord	200D×3
	Nom. Thickness	0.60±0.05mm
	Min. Thickness	0.55mm
	Max. overall Dia.	Φ 6.0±0.3mm
