Specifications
Mining industrial hot chute feeder machinemax feeding size 205~350mm
feeding capacity10.5~300t/h
wide application
BV,CE
Introduction:
The chute feeder is suitable for concentrating, coal, chemical, and other industry departments, the granular and pieces materials are carried into various installments from the storage bin, but not suitable for delivering concentrate fines and other powdery materials.
Technical parameters:
|
Specifications |
Discharging opening (W×H) (mm) |
Max. feeding size (mm) |
Reciprocating frequency of trough (min-1) |
Feeding capacity (t/h) |
Power (KW) |
Dimensions (L×W×H) (mm) |
Total weight (kg) |
600×500 |
600×500 |
205 |
38.9 |
10.5-25.5 |
4 |
2750×910×855 |
1054 |
980×1240 |
980×1240 |
350 |
23.7 |
36-90 |
7.5 |
3560×1000×1070 |
1700 |
1000×1900 |
1000×1900 |
300 |
27 |
300 |
7.5 |
3900×1590×1340 |
2691 |
Structure and working principles :

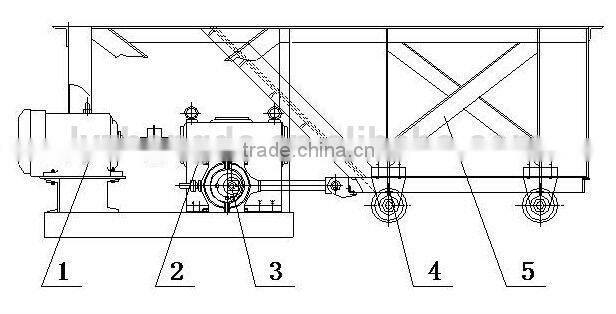

1,Motor 2,Reducer 3,eccentric mechanism 4,idler 5,chute frame
The devices are installed on the bottom of the ore bin outlet, the ore fall onto the leakage board at the chute bottom, the bottom of the leakage board is fixed on the idler, and through the eccentric institutions to connect the leakage board and the reducer together, and then through the coupling lined the motor. During the operation the motor drive the reducer through the coupling, and through the eccentric dish and the leaking plate, which is at the bottom of the frame also between the idlers, to move in reciprocating linear way, and achieve the feed uniformly.]
Pictures of chute feeder for reference:
Manufacturing pictures of chute feeder

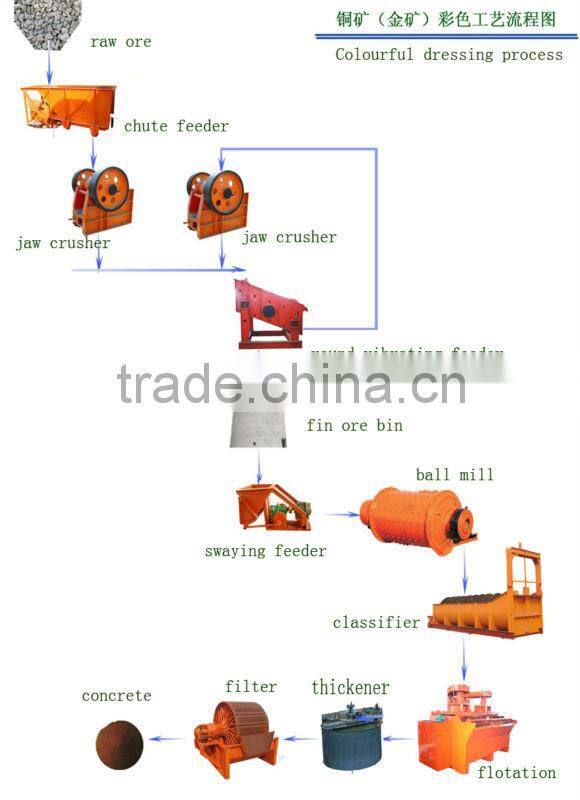

Usage in dressing plant such as gold, iron, copper, etc
a. Installation and adjustment: Should the installation service is needed, technicist will be provided by supplier for buyer to assist the work such as welding connection of shell body.
b. Quality Guarantee: Three-guarantees of product and warranty period is one year.
c. Technical support is provided from the beginning to the end.
d. Spare parts are serviced for sale in the whole year
- Luoyang Zhongde Heavy Industries Co., Ltd, whose predecessor was Luoyang Mining Machinery Cement Equipment Factory, was founded in 1959.
- Over the past fifty years, it has made significant contribution to the economic development in China.
- In 1995, it took the lead in changing into the joint stock company, which brought rapid development to the company .
- In 2006, the old factory relocated into the large modern industrial workshop in Luoxin Industrial Park.
How about the quality of your chute feeder ?
- Our chute feeder manufactured strictly according to national and international standard.
- We take a test on every chute feeder before delivery.
How about price of chute feeder ?
- We can give the lowest price of the chute feeder than market one.
- We do quotation of chute feeder as soon as possible for any custome.
- Discount of chute feeder can be given according to quantity.
How about the after-sale service of your company?
- Our engineer is aviliable to installation chute feeder overseas.
- The guarantee period of our chute feeder is one year.
