Help CenterHenan Zhongde Produced Small Mining Ball Mill With CE and ISO
Related Products
-
HOT SALE!!! Luoyang Zhongde Spiral ChuteUS$ 1,200 - 3,200MOQ: 1 Set -
Spiral Chute With Reliable Quality and Reasonable PriceUS$ 1,200 - 3,200MOQ: 1 Set
-
HOT SALE!!! Gravity Spiral Chute for Ore Seperator With High Quality Anf Best PriceUS$ 1,200 - 3,200MOQ: 1 Set
-
2014China Heavy-duty TH315 Series Vertical Bucket Elevator Manufacturer With ISO CertificateUS$ 2,000 - 60,000MOQ: 1 Set
-
Stone Crusher Jaw Crusher Jaw Stone Crusher by Luoyang ZhongdeUS$ 20,000 - 25,000MOQ: 1 Set
Specifications
1.Customized Wet or dry ball mill2.Professional manufacture with 50 years
3.Durable liner and discharging evenly
Application:
Ball mill is the key equipment for grinding after the crush process, and it is widely used in the manufacture industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics.
It also can be used for the dry and wet grinding for all kinds of ores and other grind-able materials.
Structure of Ball mill: The Ball mill machine is composed of feeding part, discharging part, turning part and driving part (reducer, small driving gear, electric motor and electric control).
The quill shaft adopts cast steel part and the liner is detachable. The turning gearwheel adopts casting hobbing process and the drum is equipped with wear-resistant liner, which has good wear-resistance.
Features of ball mill:
The ball mill, with compact structure, is easy to install & maintain, steady in running, and widely used for grind limestone, phosphate ore and other grindable materials of different hardness. The performance is advanced in domestic market. Wear parts are easy to change.
Technical parameters:
| Model | Rotation speed of shell(r/min) | Ball load(t) | Feeding size(mm) | Discharging size(mm) | Capacity(t/h) | Motor power(KW) |
| Φ900×3000 | 36 | 2.7 | ≤20 | 0.075-0.89 | 1.1-3.5 | 6.8 |
| Φ1200×2400 | 36 | 3 | ≤25 | 0.075-0.6 | 1.5-4.8 | 2 |
| Φ1200×3000 | 36 | 3.5 | ≤25 | 0.074-0.4 | 1.6-5 | 13.2 |
| Φ1500×4500 | 27 | 11 | ≤25 | 0.074-0.4 | 3-6 | 21 |
| Φ1500×5700 | 28 | 12 | ≤25 | 0.074-0.4 | 3.5-6 | 24.7 |
| Φ1830×3000 | 25.4 | 11 | ≤25 | 0.074-0.4 | 4-10 | 34.5 |
| Φ1830×6400 | 24.1 | 21 | ≤25 | 0.074-0.4 | 6.5-15 | 46 |
| Φ1830×7000 | 24.1 | 23 | ≤25 | 0.074-0.4 | 7.5-17 | 49 |
| Φ2100×4500 | 23.7 | 24 | ≤25 | 0.074-0.4 | 8-43 | 59 |
| Φ2100×7000 | 23.7 | 26 | ≤25 | 0.074-0.4 | 8-48 | 67.5 |
| Φ2200×4500 | 21.5 | 27 | ≤25 | 0.074-0.4 | 9-45 | 58 |
| Φ2200×6500 | 21.7 | 35 | ≤25 | 0.074-0.4 | 14-26 | 63 |
| Φ2200×7500 | 21.7 | 35 | ≤25 | 0.074-0.4 | 15-30 | 66.5 |
| Φ2400×3000 | 21 | 23 | ≤25 | 0.074-0.4 | 7-50 | 65 |
| Φ2400×4500 | 21 | 30 | ≤25 | 0.074-0.4 | 8.5-60 | 70 |
| Φ2700×4000 | 20.7 | 40 | ≤25 | 0.074-0.4 | 12-80 | 92 |
| Φ3200×4500 | 18 | 65 | ≤25 | 0.074-0.4 | Determined by the technological process | 137 |
| Φ3600×4500 | 17 | 90 | ≤25 | 0.074-0.4 | Determined by the technological process | 158 |
| Φ3600×6000 | 17 | 110 | ≤25 | 0.074-0.4 | Determined by the technological process | 175 |

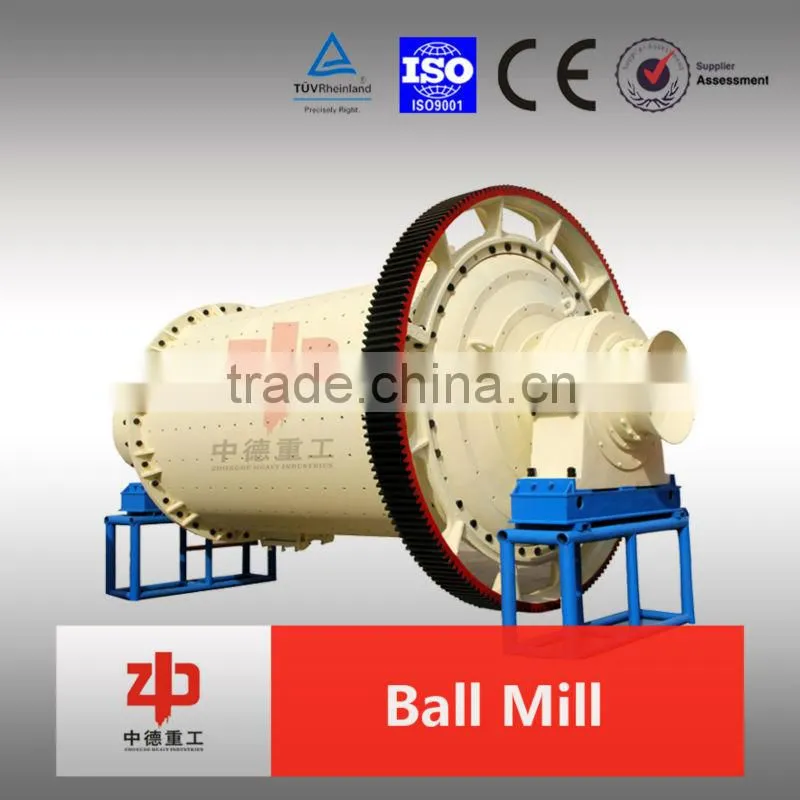

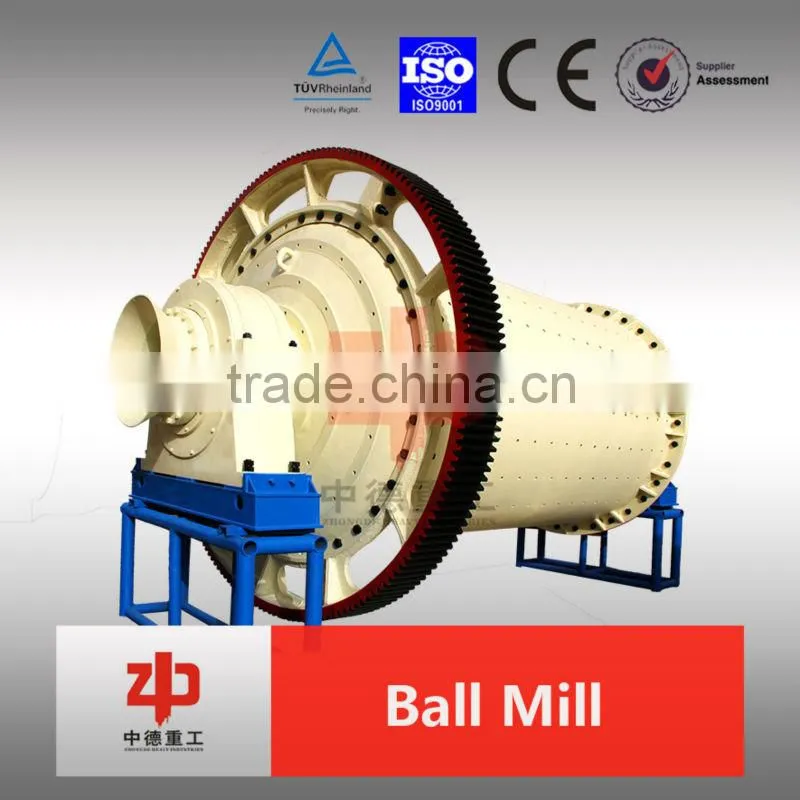

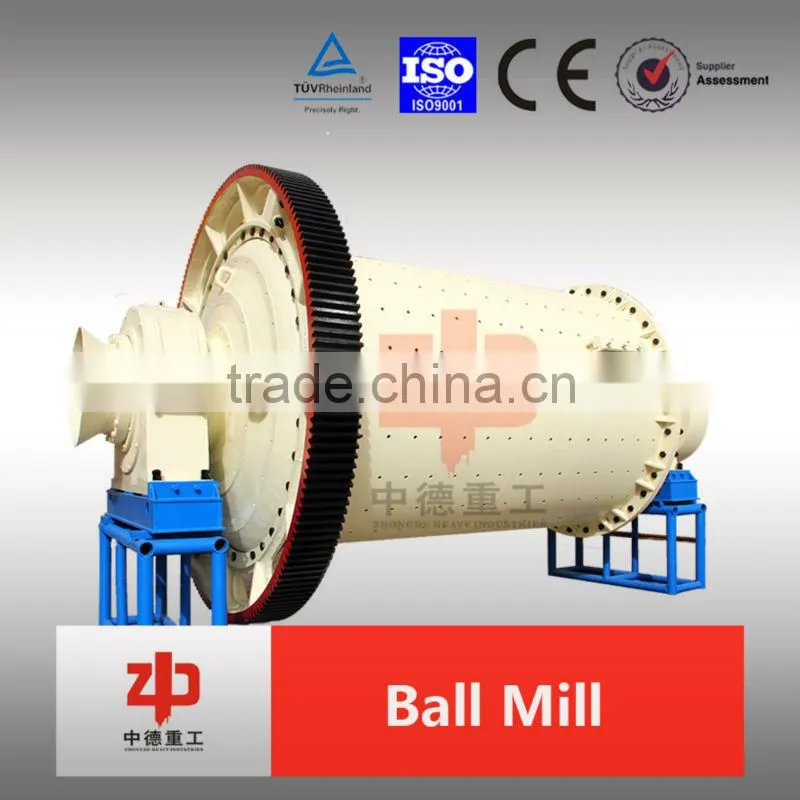

pictures for reference:

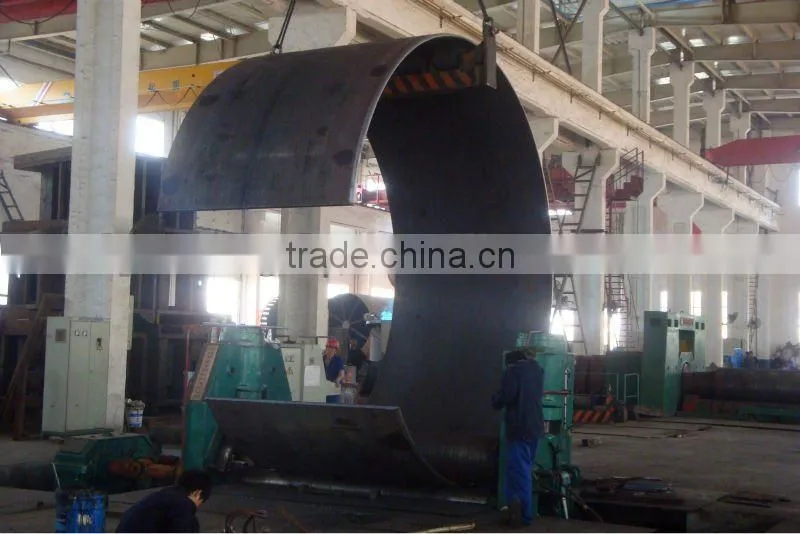

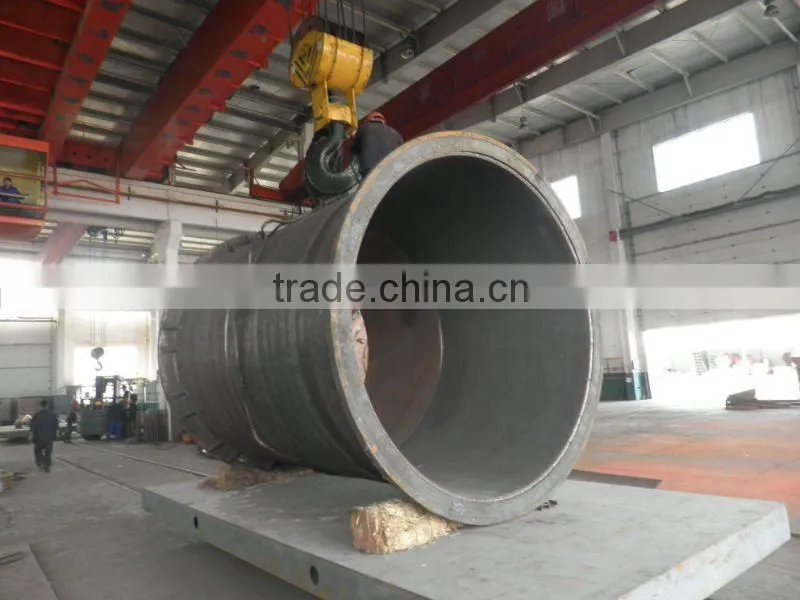

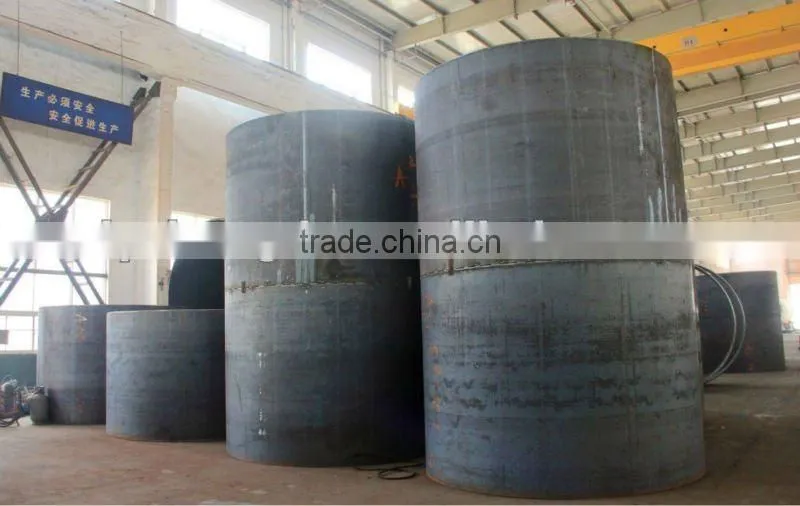

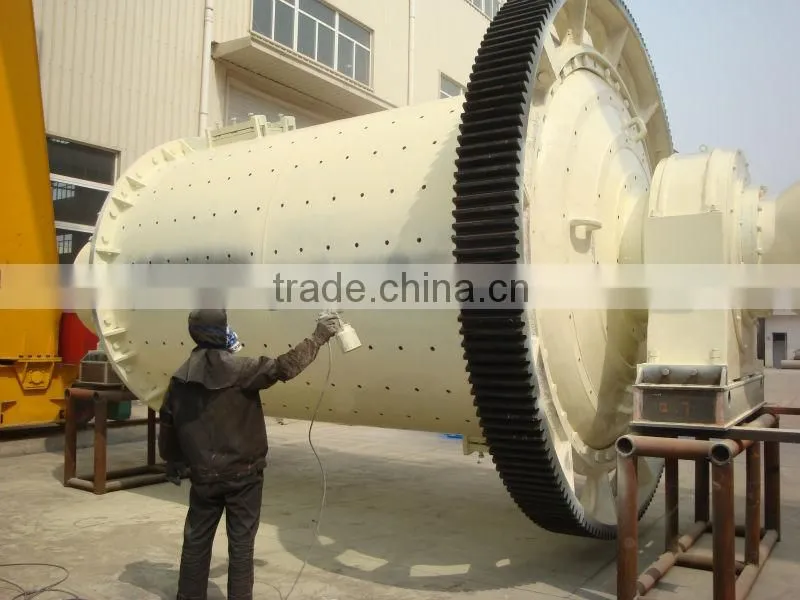

manufacturing process:

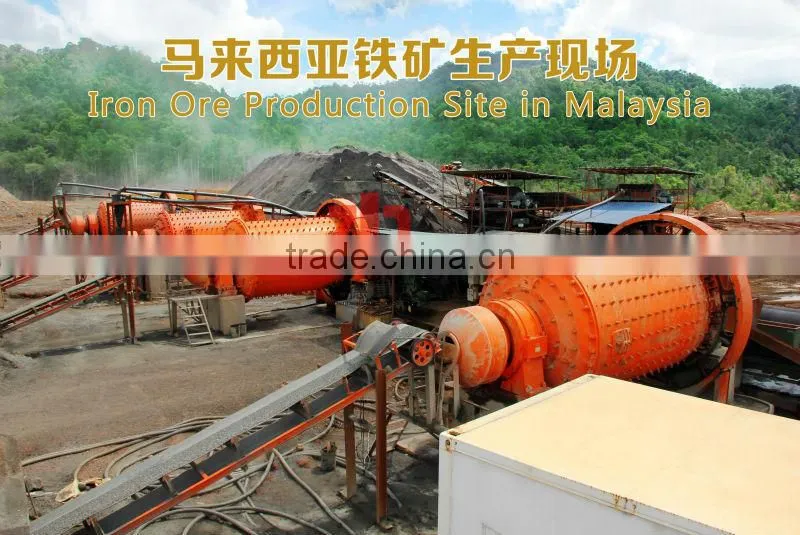

Ball mill on-site:
Our service of ball mill:
- Installation and adjustment of ball mill: The Installation and adjustment of our ball mill is provided by our company. Technicist of ball mill will provided by supplier for buyer to assist the work such as weding connecion of shell body ,equipment installation, adjustment, training etc.
- Quality of guarantee of ball mill: Three-guarantees of ball mill and warrantly period id one year.
- Technical support of ball mill is provided from the beginning to the end.
- Spare parts of ball mill are serviced for sale in the whole year.
- Luoyang Zhongde Heavy Industries Co., Ltd, whose predecessor was Luoyang Mining Machinery Cement Equipment Factory, was founded in 1959.
- Over the past fifty years, it has made significant contribution to the economic development in China.
- In 1995, it took the lead in changing into the joint stock company, which brought rapid development to the company .
- In 2006, the old factory relocated into the large modern industrial workshop in Luoxin Industrial Park.
