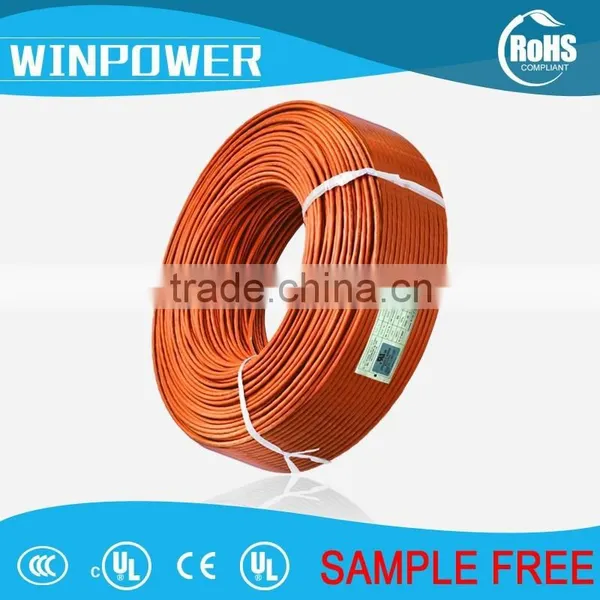

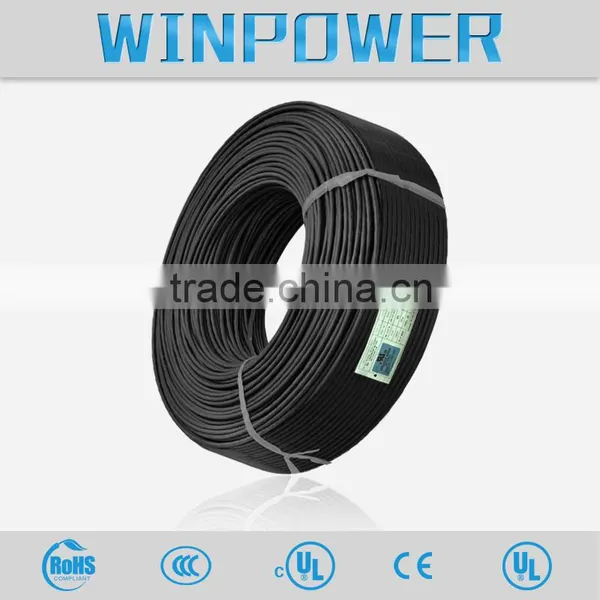

UL1061 20AWG PVC Insulated Copper Single Core Wire
US$ 0.001 - 99
MOQ: 6 Kilometers
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Winpower
Model Number:
UL 1061 20AWG 1/0.813mm
Payment & Shipping
Payment Methods:
Port of Shipment:
Port of Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
UL1061 PVC Solid Core 18 Guage Electrical WireUS$ 0.001 - 99MOQ: 6 Kilometers -
UL1061 18AWG Pvc Insulated Copper Coiled CableUS$ 0.001 - 99MOQ: 6 Kilometers
-
UL1061 SR- PVC Insulated 22 Guage Copper WireUS$ 0.001 - 99MOQ: 6 Kilometers
-
UL1061 30 Guage Copper Thin Solid WireUS$ 0.001 - 99MOQ: 6 Kilometers
-
UL 1061 Pvc Insulated 30 AWG Tin Plated Copper WireUS$ 0.001 - 99MOQ: 6 Kilometers
Place of Origin
Jiangsu, China
Brand Name
Winpower
Model Number
UL 1061 20AWG 1/0.813mm
Type
Insulated
Application
Other, internal wiring
Conductor Material
Copper
Conductor Type
Solid
Insulation Material
PVC
UL1061 20AWG PVC insulated copper single core wire
- Rated temperature: 105 degree centigrade
- Rated voltage: 300V
- Reference Standard: UL758, UL1581,CSAC22.2NO.210.2
- Conductor: Solid bare copper conductor 40~4/0AWG
- Insulation: PVC insulation, comply with ROHS environmental standard
- Flame Retardant Test: UL VW-1, CSA FT1 flame Test
- Uniform thickness to ensure stripping and cutting easily
- For general purpose internal wiring of appliance
MARKING:
E330446 AWM STYLE 1061 AWG NO. 105°C 300V VW-1 --- AWM I A 105°C 300V FT1 RoHS COMPLIANT DANYANG WINPOWER
CABLE CONSTRUCTION:
CONDUCTOR |
INSULATION |
MAX.COND. RESISTANCE (Ω/km,20°C,DC) |
DIELECTRIC STRENGTH (VAC,1min) |
|||
AWG |
CONSTRUCTION (No./mm) |
DIA. (mm) |
THICKNESS (mm) |
O.D. (mm) |
||
30 |
1/0.254 7/0.10 |
0.25 0.30 |
0.25 0.25 |
0.75 0.80 |
361 381 |
2,000 |
28 |
1/0.32 7/0.127 |
0.32 0.38 |
0.27 0.26 |
0.85 0.90 |
227 239 |
2,000 |
26 |
1/0.404 7/0.16 |
0.40 0.48 |
0.25 0.26 |
0.90 1.00 |
143 150 |
2,000 |
24 |
1/0.511 7/0.20 |
0.51 0.60 |
0.25 0.25 |
1.00 1.10 |
89.3 94.2 |
2,000 |
22 |
1/0.643 7/0.254 |
0.64 0.76 |
0.25 0.27 |
1.15 1.30 |
56.4 59.4 |
2,000 |
20 |
1/0.813 7/0.32 |
0.81 0.96 |
0.27 0.27 |
1.35 1.50 |
35.2 36.7 |
2,000 |
18 |
1/1.024 16/0.254 |
1.02 1.17 |
0.27 0.31 |
1.55 1.80 |
22.2 23.2 |
2,000 |
16 |
1/1.29 26/0.254 |
1.29 1.49 |
0.25 0.31 |
1.80 2.10 |
14.0 14.6 |
2,000 |
