UL 1061 22 AWG SR-PVC insulated copper thin electrical wire
- 200 Kilometer / Kilometers per Month
- Port of Shanghai
- T/T
- NF24Q100-01 Carlisle Tensolite Aviation cables
- GSC-13-84943-07 GORE Aviation fiber optic transmission cable
- RCN8687 GORE Advantage products RCN8687 8989 9053
- TE 10612-24-9 Cheminax Spot inventory can be shipped at any time
- Power Accessories Photovoltaic lines Wires UL10269 high voltage cable
- Factory Direct House Wiring 2.5mm2 Single Core Flexible Copper Wire Electrical Wire Installation Electric Cables Price
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | Winpower | Model Number: | UL 1061 22AWG |
Type: | Insulated | Application: | Other, internal wiring | Conductor Material: | Copper |
Conductor Type: | Stranded | Insulation Material: | Other, SR-PVC |
Product Description

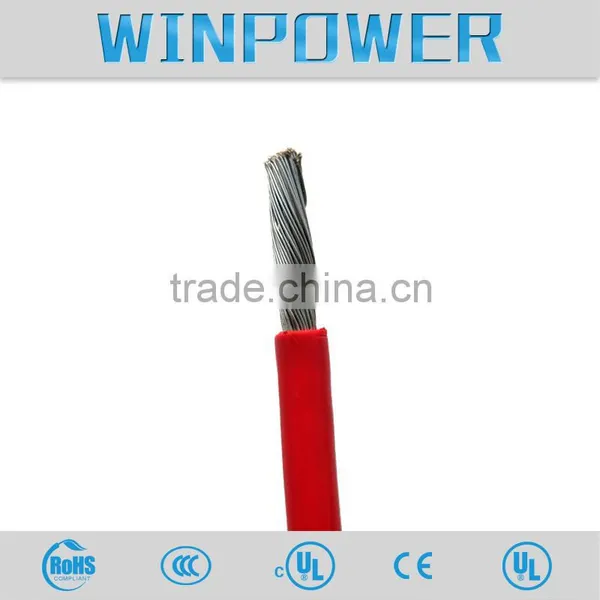

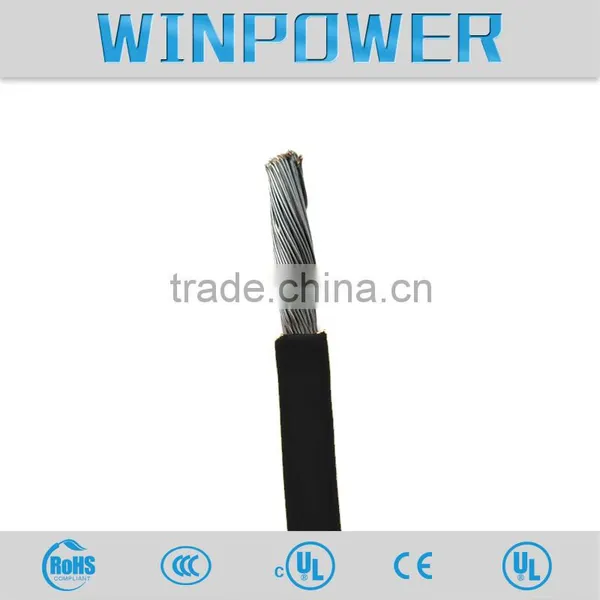

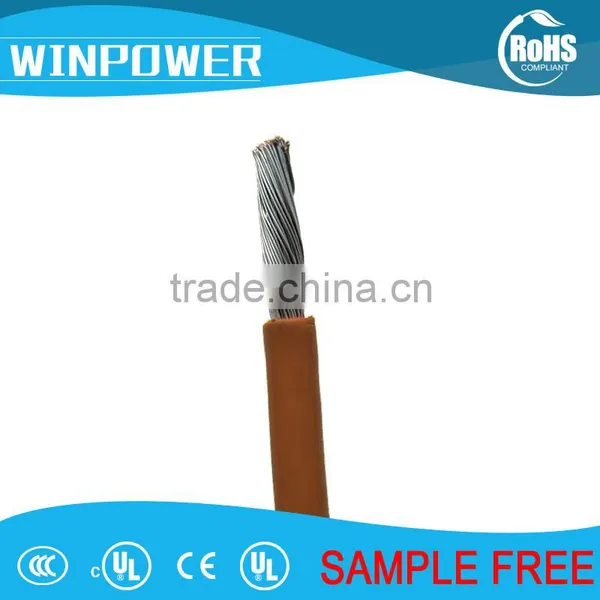

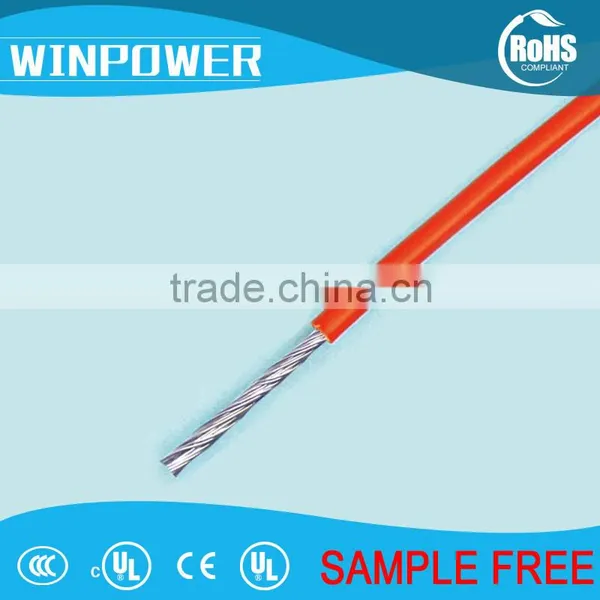

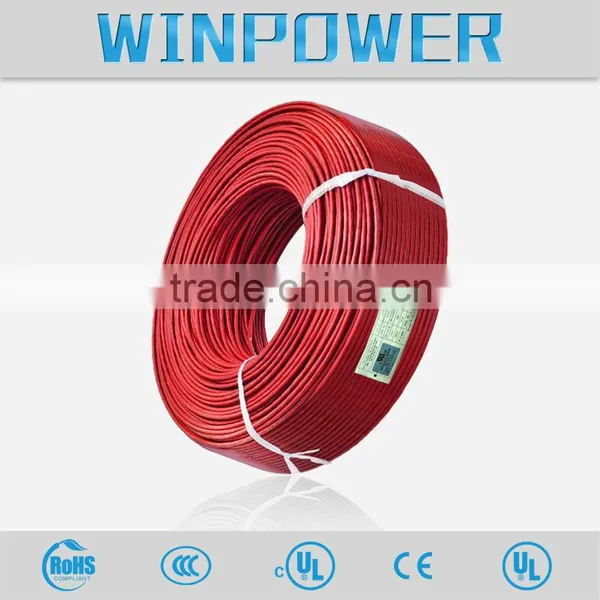

UL 1061 22 AWG SR-PVC insulated copper thin electrical wire
- Rated temperature: 80 degree centigrade
- Rated voltage: 300V
- Reference Standard: UL758, UL1581,CSAC22.2NO.210.2
- Conductor: stranded tinned copper conductor
- Insulation: SR-PVC insulation, comply with ROHS environmental standard
- Flame Retardant Test: UL VW-1, CSA FT1 flame Test
- Uniform thickness to ensure stripping and cutting easily
- For general purpose internal wiring of appliance
MARKING:
E330446 AWM STYLE 1061 AWG NO. 80°C 300V VW-1 --- AWM I A 80°C 300V FT1 RoHS COMPLIANT DANYANG WINPOWER
CONDUCTOR | INSULATION | MAX.COND. RESISTANCE (Ω/km,20°C,DC) | DIELECTRIC STRENGTH (VAC,1min) | |||
AWG | CONSTRUCTION (No./mm) | DIA. (mm) | THICKNESS (mm) | O.D. (mm) | ||
30 | 1/0.254 7/0.10 | 0.25 0.30 | 0.25 0.25 | 0.75 0.80 | 361 381 | 2,000 |
28 | 1/0.32 7/0.127 | 0.32 0.38 | 0.27 0.26 | 0.85 0.90 | 227 239 | 2,000 |
26 | 1/0.404 7/0.16 | 0.40 0.48 | 0.25 0.26 | 0.90 1.00 | 143 150 | 2,000 |
24 | 1/0.511 7/0.20 | 0.51 0.60 | 0.25 0.25 | 1.00 1.10 | 89.3 94.2 | 2,000 |
22 | 1/0.643 7/0.254 | 0.64 0.76 | 0.25 0.27 | 1.15 1.30 | 56.4 59.4 | 2,000 |
20 | 1/0.813 7/0.32 | 0.81 0.96 | 0.27 0.27 | 1.35 1.50 | 35.2 36.7 | 2,000 |
18 | 1/1.024 16/0.254 | 1.02 1.17 | 0.27 0.31 | 1.55 1.80 | 22.2 23.2 | 2,000 |
16 | 1/1.29 26/0.254 | 1.29 1.49 | 0.25 0.31 | 1.80 2.10 | 14.0 14.6 | 2,000 |
