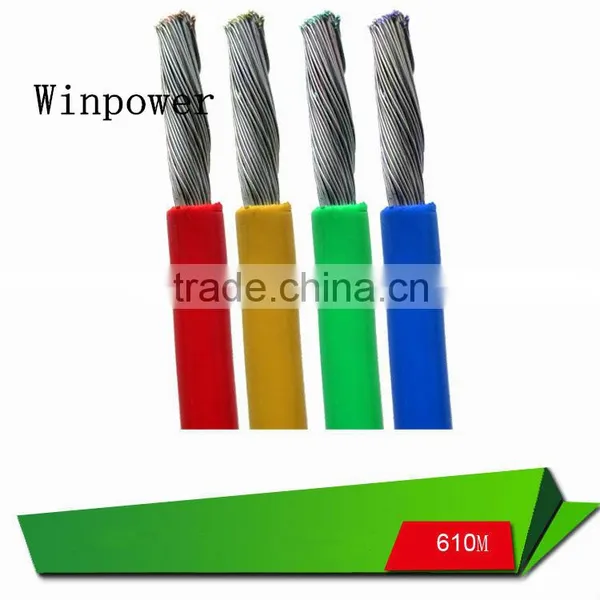

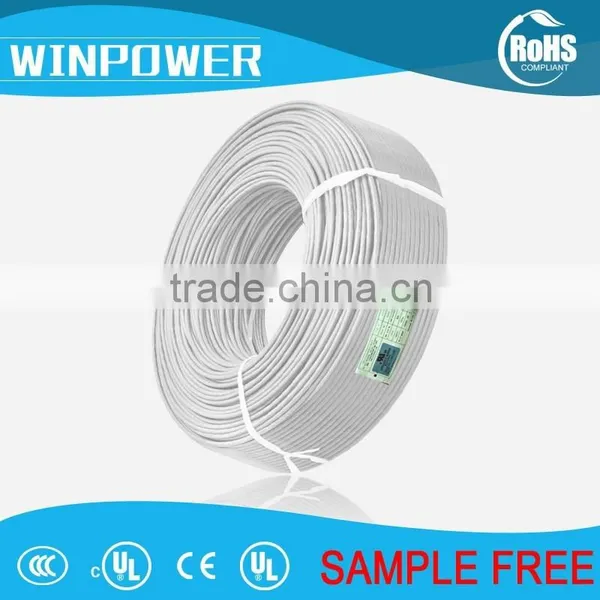

UL1007 AWM 30 pvc insulated electronic wire
SPECIFICATION: REFERENCE STANDARD: UL758,UL1581,CSA C22.2No.210.2
FLAME TEST: UL VW-1, CSA FT1 flame test
RATED TEMPERATURE:80 centigrade degree
RATED VOLTAGE: 300v
CONDUCTOR: 7/0.10mm tinned copper
INSULATION THICKNESS: 0.38mm pvc
OUTER DIAMETER: 1.15mm
MAX. CONDUCTOR RESISTANCE: 381Ω/km
DIELECTRIC STRENGTH: 2000v
MARKING:
E330446 AWM STYLE 1007 AWG NO. 80°C 300V VW-1 --- AWM I A 80°C 300V FT1 RoHS COMPLIANT DANYANG WINPOWER
|
CONDUCTOR |
INSULATION |
MAX.COND. RESISTANCE Ω/km,20,DC |
DIELECTRIC STRENGTH VAC,1min |
|||
|
AWG |
CONSTRUCTION (No./mm) |
DIA. (mm) |
THICKNESS mm |
O.D. (mm) |
||
30 |
1/0.254 7/0.10 |
0.25 0.30 |
0.40 0.40 |
1.05 1.10 |
361 381 |
2,000 |
28 |
1/0.32 7/0.127 |
0.32 0.38 |
0.39 0.41 |
1.10 1.20 |
227 239 |
2,000 |
26 |
1/0.404 7/0.16 |
0.40 0.48 |
0.43 0.41 |
1.25 1.30 |
143 150 |
2,000 |
24 |
1/0.511 11/0.16 |
0.51 0.61 |
0.42 0.40 |
1.35 1.40 |
89.3 94.2 |
2,000 |
22 |
1/0.643 17/0.16 |
0.64 0.76 |
0.43 0.42 |
1.50 1.60 |
56.4 59.4 |
2,000 |
20 |
1/0.813 21/0.178 |
0.81 0.94 |
0.42 0.43 |
1.65 1.80 |
35.2 36.7 |
2,000 |
18 |
1/1.024 16/0.254 34/0.178 |
1.02 1.17 1.20 |
0.41 0.47 0.45 |
1.85 2.10 2.10 |
22.2 23.2 23.2 |
2,000 |
16 |
1/1.29 26/0.254 |
1.29 1.49 |
0.46 0.46 |
2.20 2.40 |
14.0 14.6 |
2,00 |
