Meanwell Power Inverter Remote Control Remote Control Inverter

Name: Meanwell Power Inverter Remote Control Remote Control Inverter
Brand: Meanwell
Availability: InStock

FOB Price

US$ 1 - 10 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

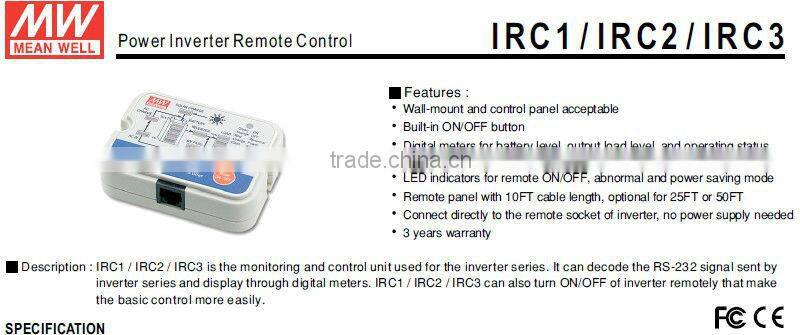

Product Overviews

Original MEAN WELL

IRC2

Warranty: 3 years

Certificates: CE

Specifications

MODEL		IRC2
OUTPUT	DIGITAL METER	Display the battery level, output load level, and operating status of inverter unit
	CONTROL OUTPUT	Remote ON/OFF for inverter unit
	LED INDICATOR	Remote turn ON(Green) ; Remote turn Off(Orange) ; Abnormal (Red) ; Saving mode (Orange flash)
FUNCTION	REMOTE ON/OFF CONTROL	The controlled inverter unit can be turned ON/OFF on the remote control panel for IRC1 / IRC2 / IRC3
	POWER SAVING CONTROL	Power saving enable / disable activation
	SUITABLE SERIES	TS-700 / 1000 / 1500 / 3000
PROTECTION	BAT. LOW SHUTDOWN	10± 0.5V
	OVER VOLTAGE	15 ~ 17V
	OVER TEMPERATURE	60± 5°C / 140± 9°C (case)
	OUTPUT SHORT	Shut-off
	REVERSE. POLARITY	By fuse open
ENVIRONMENT	WORKING TEMP.	-20~+50°C
	WORKING HUMIDITY	20~90% RH non-condensing
	STORAGE TEMP., HUMIDITY	-40~+85°C, 10~95%RH
	VIBRATION	10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY&EMC	EMC EMISSION	Compliance to EN55022 class A, EN61000-3-2,3, FCC PART 15 class A
SAFETY&EMC	EMC IMMUNITY	Compliance to EN61000-4-2,3,4,6,8

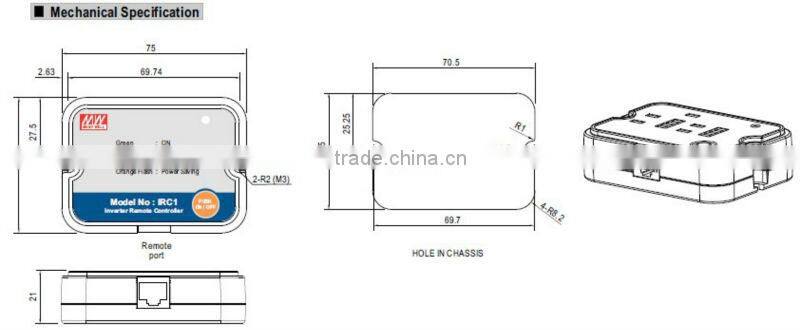

OTHERS	DIMENSION	755521mm (LWH)
OTHERS	PACKING	0.26Kg; 24pcs/7.3Kg/1.75CUFT
NOTE	1. The remote control can not re-power on for inverter at abnormal status.
