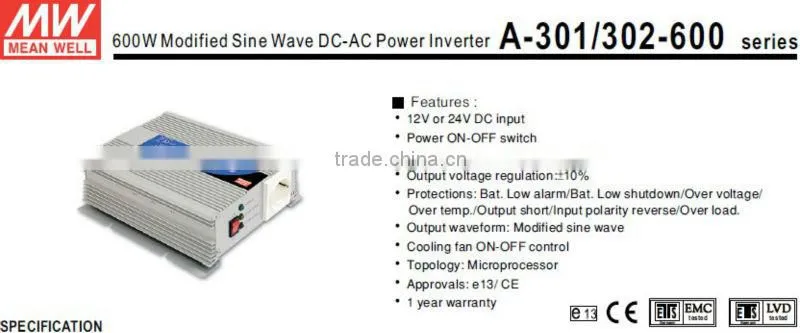

Help CenterMeanwell 600W Modified Sine Wave DC-AC Power Inverter ac Drive Inverter Power Inverter 600w
Related Products
-
Meanwell 300W Modified Sine Wave DC-AC Power Inverter Switching Power Supply Inverter Power/high Frequency InverterUS$ 1 - 30MOQ: 1 Piece -
Meanwell 300W Modified Sine Wave DC-AC Power Inverter Switching Power Supply Inverter DriverUS$ 1 - 10MOQ: 10 Pieces
-
Meanwell 150W Modified Sine Wave DC-AC Power Inverter Switching Power Supply ac Inverter 24v dc ac Power InverterUS$ 1 - 10MOQ: 1 Piece
-
Meanwell 150W Modified Sine Wave DC-AC Power Inverter 150w dc to ac Inverter dc InverterUS$ 1 - 10MOQ: 1 Piece
-
Meanwell 100W Modified Sine Wave DC-AC Power Inverter Switching Power Supply/inverter GeneratorUS$ 1 - 10MOQ: 1 Piece

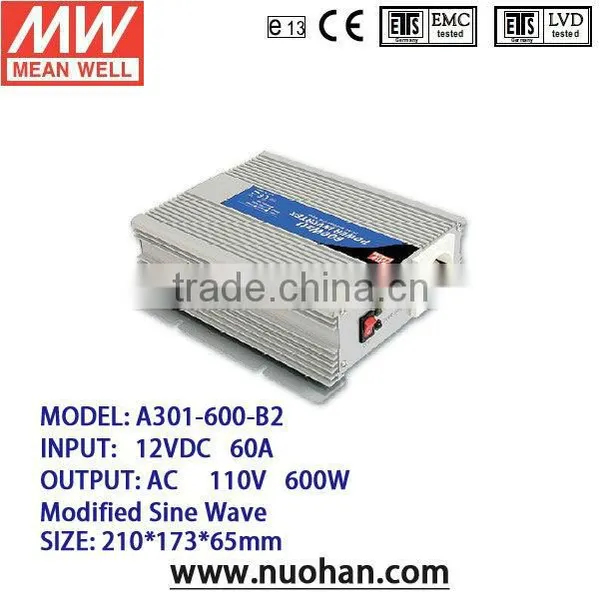

ORDER NO. |
A301-600-B2 |
|
OUTPUT |
SAFETY MODEL NO. |
A-300-600W |
AC VOLTAGE |
110V |
|
RATED POWER |
600W |
|
SURGE POWER |
1200W |
|
WAVE FORM |
Modified Sine Wave |
|
FREQUENCY |
60Hz ±1% |
|
AC REGULATION |
±10% |
|
STANDARD RECEPTACLES |
TYPE-2* 1ea |
|
LED INDICATOR |
Green LED for power on; Red LED for power failure status |
|
|
INPUT
|
DC CURRENT |
60A |
NO LOAD CURRENT DRAW |
0.5A |
|
DC VOLTAGE |
12V |
|
VOLTAGE RANGE |
10~ 15VDC |
|
EFFICIENCY (Typ.) |
82% |
|
DC CONNECTOR |
900mm Battery clip*1ea |
|
FUSE |
25 A * 3ea |
|
PROTECTION |
BAT. LOW ALARM |
10± 0.5V |
BAT. LOW SHUTDOWN |
9.5 ± 0.5V |
|
OVER LOAD |
>750W shut down o/p voltage, re-power on to recover |
|
OVER VOLTAGE |
15~17V |
|
OVER TEMPERATURE |
60± 5°C / 140± 9F |
|
OUTPUT SHORT |
Shut-off |
|
BAT. POLARITY |
By fuse open |
|
ENVIRONMENT |
WORKING TEMP. |
0~+30°C at 100% load, 40°C at 50% load |
WORKING HUMIDITY |
20%~90% RH non-condensing |
|
STORAGE TEMP., HUMIDITY |
-30~+70°C / -22~ +158 F, 10~95%RH |
|
TEMP. COEFFICIENT |
±0.05%/°C (0~50°C) |
|
SAFETY&EMC |
ISOLATION RESISTANCE |
I/P-O/P: 100M Ohms / 500VDC / 25°C/ 70% RH |
EMI CONDUCTION & RADIATION |
Compliance to EN55022 class B, 72/ 245/ CEE, 95/ 54/ CE |
|
EMC IMMUNITY |
Compliance to EN61000-4-2,3 |
|
LVD |
Compliance to EN60950 |
|
OTHERS |
MTBF |
100Khrs min. MIL-HDBK-217F (25°C) |
DIMENSION |
210*173*65mm (L*W*H) |
|
PACKING |
2.1kg ; 8pcs / 20kg / CARTON |
|
COOLING |
by fan, >50% load fan on |
|
APPLICATIONS |
Home appliance, Power tools, Office and Portable equipment and Vehicle ...etc. |
|
