Meanwell 100W Modified Sine Wave DC-AC Power Inverter Switching Power Supply/inverter Generator

Meanwell 100W Modified Sine Wave DC-AC Power Inverter Switching Power Supply/inverter Generator thumbnail-1
Meanwell 100W Modified Sine Wave DC-AC Power Inverter Switching Power Supply/inverter Generator photo-1
US$ 1 - 10 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Meanwell
Model Number:
A301-100-F3
Contact Supplier Request Quote Chat Now
Hangzhou Nuohan Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Meanwell
Model Number A301-100-F3
Output Power Other, 100W
Output Type Single
Size 65*170mm (Diameter*L)
Weight 0.55Kg
Input Voltage 12V
Output Voltage 230V
Type DC/AC Inverters
Output Frequency 50Hz
Output Current 0.43A

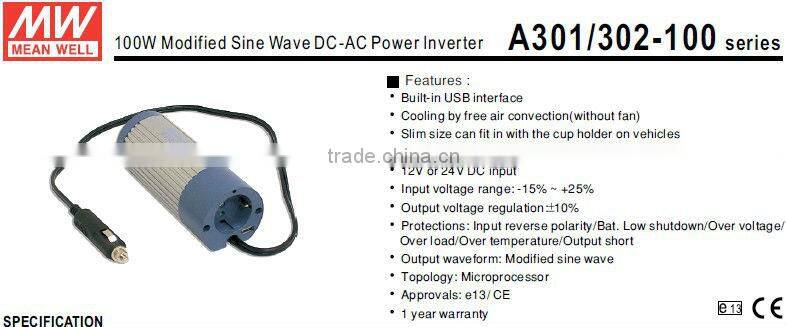

Meanwell 100W Modified Sine Wave DC-AC Power Inverter Switching Power Supply/inverter generator

ORDER NO.

A301-100-F3

OUTPUT

SAFETY MODEL NO.

A-100-150W(N)

AC RATED VOLTAGE   Note.1

230V

RATED POWER

100W

SURGE POWER

200W

WAVEFORM

Modified Sine Wave

FREQUENCY

50Hz ±1%

AC REGULATION

±10%

STANDARD RECEPTACLES

Europe*1ea

LED INDICATOR

Dual-color indicator display for power on / failure status

USB POWER

5VDC / 500mA (max.)

INPUT

DC CURRENT

15A

NO LOAD CURRENT DRAW

0.25A

DC VOLTAGE

12V

VOLTAGE RANGE

10 ~ 15VDC

EFFICIENCY (Typ.)

90%

DC CONNECTOR

650 ± 50mm Cigarette plug*1ea

FUSE

15A* 1ea

PROTECTION

BAT. LOW SHUTDOWN

10± 0.5V

OVER VOLTAGE

15 ~ 17V

OVER TEMPERATURE

60± 5°C / 140± 9°C (case)

OUTPUT SHORT

Shut-off

REVERSE. POLARITY

By fuse open

ENVIRONMENT

WORKING TEMP.

0~+30°C at 100% load, 40°C at 50% load

WORKING HUMIDITY

20~90% RH non-condensing

STORAGE TEMP., HUMIDITY

-30~+70°C / -22~ +158 F, 10~95%RH

TEMP. COEFFICIENT

±0.05%(0~50°C)

SAFETY&EMC

ISOLATION RESISTANCE

I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH

EMI CONDUCTION & RADIATION

Compliance to EN55022 class B, 72/ 245/ CEE, 2006/96/CE

EMC IMMUNITY

Compliance to EN61000-4-2,3

LVD

Compliance to EN60950-1

OTHERS

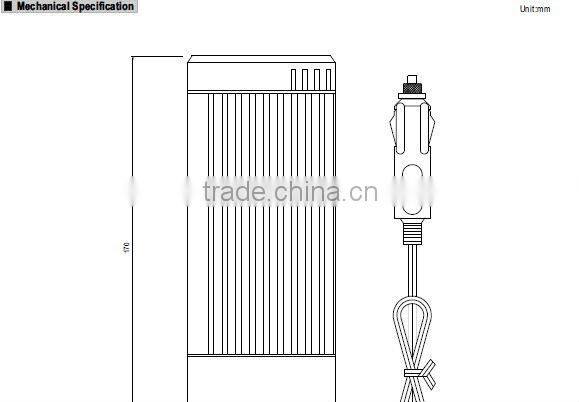

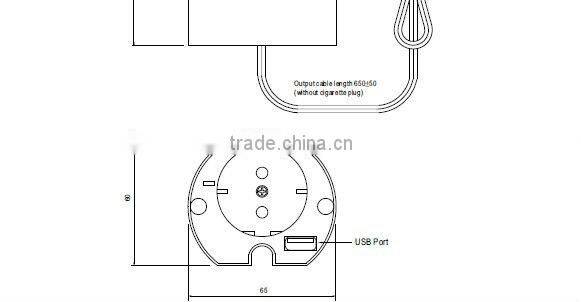

DIMENSION

65*170mm (Diameter*L)

PACKING

0.55Kg ; 30pcs / 17.5Kg / CARTON

COOLING

By air convection

APPLICATIONS

Home appliance, office and portable equipment and vehicle ...etc.

NOTE

1. AC rated output voltage is measured at 12.5VDC, 25VDC input voltage.















































































































Meanwell 100W Modified Sine Wave DC-AC Power Inverter Switching Power Supply/inverter generatorMeanwell 100W Modified Sine Wave DC-AC Power Inverter Switching Power Supply/inverter generator
