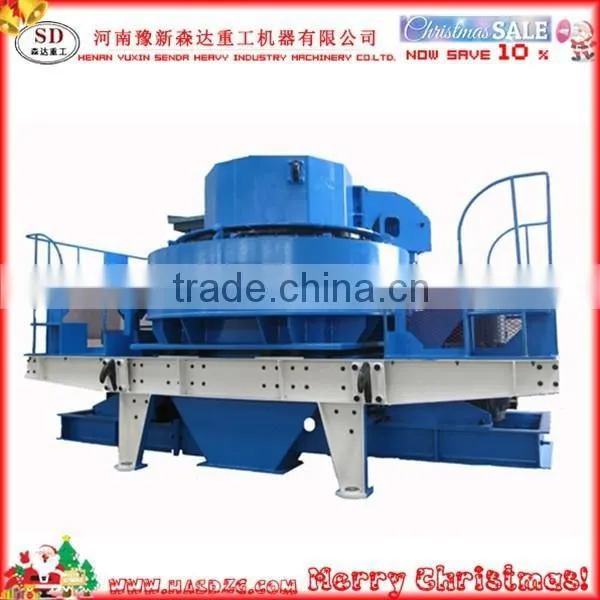

Henan Yuxinsanda made PCL vertical shaft impact crusher
- 20 Set / Sets per Month
- Qingdao Tianjin Shanghai
- T/T
-
Tertiary Reversible Impact Hammer Crusher with High Chrome Blow Bar
-
China Wheat and Grain Transport Vibrating Feeder Price in Shanghai
-
Good Quality Heavy Hammer Crusher for Crushing All Kinds of Ores
-
Sand Ore and Coal Vibrating Feeder Machinery Used in Mining Industry
-
High Efficiency Stone Crushing Plant Impact Stone Crusher
-
Sound Equipment Impact Crusher Machine for Stone Crushing Line
Product Details
Condition: | New | Type: | Other, PCL sand making machine | Application: | mineral,cement,corhart,bauxite,glass raw material,etc, mineral,cement,corhart,bauxite,glass raw material,etc |
Motor Type: | AC Motor | Power(W): | 60000-440000 | Capacity(t/h): | 20-360 |
Place of Origin: | Henan, China | Brand Name: | SD | Model Number: | PCL |
Dimension(L*W*H): | general | Weight: | 7.5-26.3(T), 7.5-26.3(t) | Certification: | ISO9001/CE |
Warranty: | 12 months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
Vertical Shaft Impact Crusher has been exported to many countries and earned a good reputation,china top ten brand,good price.
introduction of PCL vertical shaft impact crusher
features of PCL vertical shaft impact crusher
1.simple structure,low consumption
2.high efficiency
3.it is slightly influenced by the humidity of material and the mas humidity is 8%
4.it is more suitable for crushing mid-hardness materials and high-hardness materials
5. Controlled by double motor, small vibration force stable operation.
Working principle of PCL vertical shaft impact crusher
The material falls into the high-speed turning impellers from the top of machine and crushes with the materail distributed around the impeller under the effect of high speed centrifugal force.After the impact with each other ,the material is crushed between impeller and cavity and is discharged from the bottom.The material can be milled twice or more times in the whirlpool cavity ,the crushed materials will be excluded through the tottom airflow self-circulation in the whirpool cavity can eliminate the dust pollution well
Specification of PCL vertical impact crusher
technical parameters | ||||||
Type | Impeller speed (r/min) | Max feed size(mm) | Diposal capacity (t/h) | Power (kw) | Weight (t) | Overall dimension (mm) |
PCL-600 | 2000-2470 | 30 | 20-35 | 60-90 | 7.5 | 2800×1500×2030 |
PCL-750 | 1500-2045 | 35 | 35-55 | 90-150 | 9.3 | 3300×1800×2440 |
PCL-900(A) | 1200-1685 | 40 | 55-100 | 110-180 | 12.6 | 3750×2120×2660 |
PCL-603(B) | 1100-1580 | 40 | 65-130 | 150-180 | 14.5 | 3750×2300×2090 |
PCL-1050 | 1000-1430 | 45 | 90-160 | 180-264 | 17 | 4480×2450×2906 |
PCL-1250 | 850-1300 | 45 | 160-230 | 364-370 | 22.5 | 4563×2650×3716 |
PCL-1350 | 800-1185 | 50 | 200-360 | 320-440 | 26.3 | 5340×2940×3650 |
