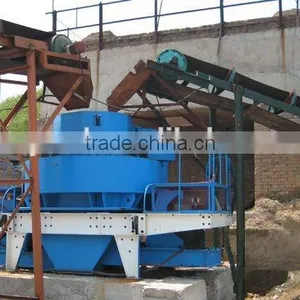

Large capacity PCL sand making machine made in China

Specifications

1.sand making machine
2.reasonable price and high quality
3.stable structure;easy maintenance
4.Factory
5.CE/ISO Certificate

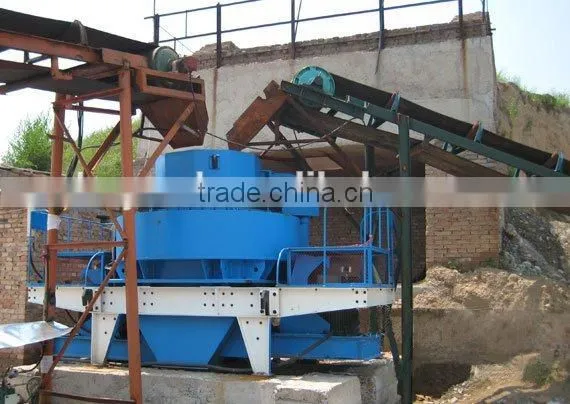

Large capacity PCL sand making machine made in China

The brief introduction of sand making machine

PCL Vertical shaft impact crusher is of high power and low consumption.It is widely used in all kinds of mineral,cement,corhart,bauxite,carborundum grain,glass raw material,machine made construction sand,stone stock and all kinds of metallurgy slag,especially carborundum,sintered bauxite,magnesite,and very hard and anticorrosion materials.And Sand Making Machine is more productive than other kind of crushers.



Characteristics

Simple structure and low operating cost;High efficiency and low consumption;sand making machine has the function of fine crush and cude grinding;slightly influenced by the moisture content of material and the max moisture content is 8%;More suitable for crushing mid-hardness and high-hardness materials'Cubic shape of final products,high density of piling up and low iron pollution;More wearable and easy maintenance;Low working noise and light dust pollution.



ing principle:

the material falls into the high-speed turning impellers from the top of machine and crushes with the materail distributed around the impeller under the effect of high speed centrifugal force.After the impact with each other ,the material is crushed between impeller and cavity and is discharged from the bottom.The material can be milled twice or more times in the whirlpool cavity ,the crushed materials will be excluded through the tottom airflow self-circulation in the whirpool cavity can eliminate the dust pollution well



4.Technical Parameters
type	impeller speed  (r/min)	max feed size(mm)	diposal capacity (t/h)                capacity (t/h)	power (kw)	weight (t)	overall dimension    (mm)
PCL-600	2000-2470	30	20-35	60-90	7.5	2800×1500×2030
PCL-750	1500-2045	35	35-55	90-150	9.3	3300×1800×2440
PCL-900(A)	1200-1685	40	55-100	110-180	12.6	3750×2120×2660
PCL-603(B)	1100-1580	40	65-130	150-180	14.5	3750×2300×2090
PCL-1050	1000-1430	45	90-160	180-264	17	4480×2450×2906
PCL-1250	850-1300	45	160-230	364-370	22.5	4563×2650×3716
PCL-1350	800-1185	50	200-360	320-440	26.3	5340×2940×3650



CHOOSE US

1. WE ARE NOT DEALER, WE ARE MANUFACTURER.

Henan Senda Heavy Industry Machine Co., Ltd. is located in ZhengZhou City,HeNan Province of China,which established in 2004, is an international heavy enterprise which expert on manufacturer,R&D and sales of stone crushers,power making machine,ore beneficiation machines.we have achieved ISO9001:2008 certificate and obtained import and export right at the beginning of our foundation. is the member of China heavy industry Machine Association,is the company which fixed on research and development,production and sales.We have a team that has reach practical experience and innovative ideas in research,development, and production.

Our products are selling to Russia,the Middle East,Southeast Asia,Africa,and other countries and regions.



2. Our mission



1].Saving the purchasing cost of our customer;



2].Shorten customer's Business Cycle.



3].Help our customer's business establish their reliability.



3. Quality

We take "quality first and customers first" as our tenet.So we take following measures to ensure product quality:

1]. Hire or cooperate with industry experts of the colleges and universities to build

2].Establish Technical&service team to solve any problems may occur at any time.

3].Found evaluation system for every suppliers,and evaluate them every quarter.



4.Certification





5.Ready to your place



Welcome to visit our factory !Welcome to inquiry !



l We will pick you up at Zhengzhou XingZheng Airport .



l We will treat your accommodation and diet during you are here.
