2014 Promotion small sand making machine with good price
- 200 Set / Sets per Month
- Qingdao Tianjin Shanghai
- T/T
- Mining Stone Crushing Machine Silica Quartz Sand Making Production Line
- High Efficiency Stone Fine Crusher 5X Series Sand Making Machine
- High Efficient Artificial Building VSI Crusher Sand Making Machine Equipment
- Automatic Zero Discharge Concrete Recycling System
- Concrete Batching Plant Parts
- Concrete Recycling Machine
Product Details
Condition: | New | Production Capacity: | 20-360(t/h) | Place of Origin: | Hunan, China |
Brand Name: | SD | Model Number: | PCL600-1350 | Voltage: | 380V |
Power(W): | 60000-440000 | Dimension(L*W*H): | generla | Weight: | 7.5-26.3(t) |
Certification: | ISO9001 | Warranty: | 12 months, Quality certificate | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
Small sand making machineSimple structure and low running cost;Less wear and use the principle of "stone hitting stone

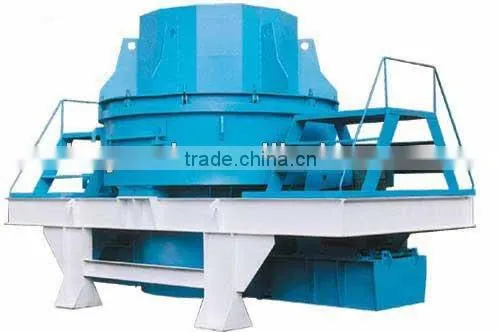

Introduction of small sand making machine
troduction :The vertical shaft impact crusher ,also called sand making machine and rubble shaping machine ,is a kind of crusher impacted by the material themselves .
Features of small sand making machine:
simple structure,easy maintenance
low producing cost and high efficiency
it is slightly influenced by the humidity of material and the mas humidity is 8%
it is more suitable for crushing mid-hardness materials and high-hardness materials
the final product is cube
low noise
working principle of small sand making machine:
The material falls into the high-speed turning impellers from the top of machine and crushes with the materail distributed around the impeller under the effect of high speed centrifugal force.After the impact with each other ,the material is crushed between impeller and cavity and is discharged from the bottom.The material can be milled twice or more times in the whirlpool cavity ,the crushed materials will be excluded through the tottom airflow self-circulation in the whirpool cavity can eliminate the dust pollution well
technical parameters of river stone crusher | ||||||
type | impeller speed (r/min) | max feed size(mm) | diposal capacity (t/h) capacity (t/h) | power (kw) | weight (t) | overall dimension (mm) |
PCL-600 | 2000-2470 | 30 | 20-35 | 60-90 | 7.5 | 2800×1500×2030 |
PCL-750 | 1500-2045 | 35 | 35-55 | 90-150 | 9.3 | 3300×1800×2440 |
PCL-900(A) | 1200-1685 | 40 | 55-100 | 110-180 | 12.6 | 3750×2120×2660 |
PCL-603(B) | 1100-1580 | 40 | 65-130 | 150-180 | 14.5 | 3750×2300×2090 |
PCL-1050 | 1000-1430 | 45 | 90-160 | 180-264 | 17 | 4480×2450×2906 |
PCL-1250 | 850-1300 | 45 | 160-230 | 364-370 | 22.5 | 4563×2650×3716 |
PCL-1350 | 800-1185 | 50 | 200-360 | 320-440 | 26.3 | 5340×2940×3650 |
