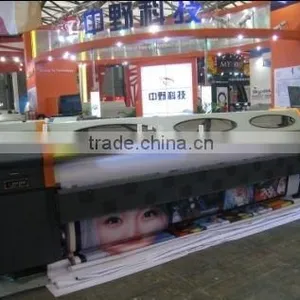

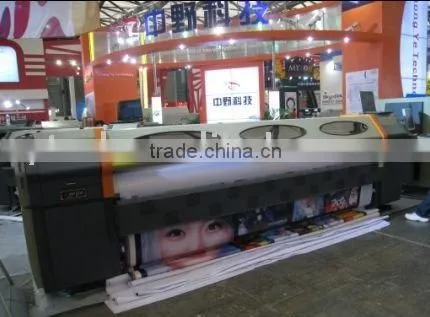

Large Format Solvent Printer

Large Format Solvent Printer photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Plate Type:
Other, Roll to roll
Place of Origin:
China
Brand Name:
ZY
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian China
Delivery Detail:
Delivery time depends on order quantity.
Plate Type Other, Roll to roll
Place of Origin China
Brand Name ZY
Model Number 3.20meter
Usage Other, outdoor advertising
Gross Power 3000w
Dimensions(L*W*H) 4.6m*0.8m*1.4m

Specifications

large format solvent printing,Max resolution 720dpi
Max printwidth 3.20m,6 pcs printhead adopting XAAR128

 ZhongYe XAAR series Large Format Solvent Printer:adopting  xaar 128print head, DC motor&raster locating mode,cost-effective and in high resolution up to 720dpi.The first choice forcommon customers newly to printing industry.


details

Large Format solventPrinter ZY-XAAR3206
Name  ZY-XAAR3206
Class ZY-XAAR series
Print technology Drop-on-demand Piezo electric
Printhead 6  XAAR128
Print width 3.2 m
Resolution 1440dpi max
Speed6psc 2pass 60m/h ; 4pass 35m/h ; 6pass 18m/h
Locating mode Raster /servo
Color C M Y K  LC LM
Media width 3.20m
Media handl Roll to roll
Media types Flex banner,vinyl sheet,one way vision,mesh,PVC fabrics,paper,etc
Ink Solvent/two-year outdoor lifetime
File format TIFF,JPEG,Postscript 3,EPS,PDF
Working process Printmon software for windows xp
Rip Photoprint /maintop
Power supply 50hz/60hz 220v(10%)20A
Operation environmeng (Tempperature )18-26(Humidity )40%-70%
Dimesion 4.8m*0.8m*1.5m
Weight 500Kg

Configuration below is according to different models:
Heating system:front&back double heating;
Feed-in&take-up system:IR controlled auto feed-in&take-up system;
Printhead cleaning system: positive pressure, vaccum
Ink system:German KNF ink supply system,Japanese negative pressure system.
