3.2m Solvent Outdoor Printer With Xaar382 Printhead

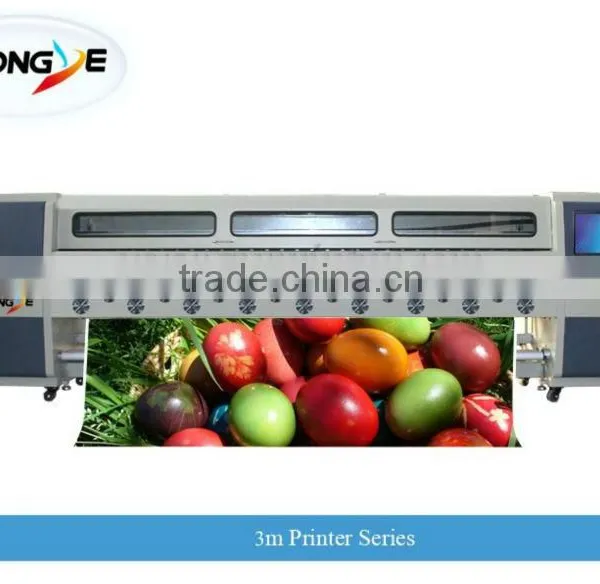

3.2m Solvent Outdoor Printer With Xaar382 Printhead photo-1
US$ 11,000 - 18,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
China
Brand Name:
ZhongYe
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin China
Brand Name ZhongYe
Model Number XR3200H-382
Automatic Grade Automatic
Dimensions(L*W*H) 5.2m*1.4m*1.5m
Weight 1500Kg/2200Kg
Certification CE ISO
After-sales Service Provided Engineers available to service machinery overseas

Roll to roll digital printing machine.We have 6.8m, 5.0m, 3.2m, 2.5m, 2.0m, can be with SPT510/1020,Xaar382/128 printhead,1440dpi CMYK LC LM color

Feature

ZhongYe Solvent Printer: adopting SPT and Xaar series printheads. Locating mode is combined with DC motor and raster. This kind of printer is widely used for outdoor printing.It will be your first choice of high-speed & high-resolution printing upto 90m2/h speed and 1440dpi resolution.
Above printing speed is at the basis of SPT510 printheads(180x180 dpi) or Xaar382 printheads (180x180 dpi).The printer can also adopt 255 printheads but the printing speed will decrease half.



Application

Flex banner,vinyl sheet,one way vision,mesh,PVC fabrics,paper,etc



Configuration below is according to different models
1.Motor: Japanese Panasonic, Fuji AC servo motor;
2.Rail:Japanese THK,Tawinese HWIN;
3.Heating system:front&back double heating;
4.Feed-in&take-up system:IR controlled auto feed-in&take-up system;
5.Printhead cleaning system: positive pressure, vaccum
6.Ink system:German KNF ink supply system,Japanese negative pressure system.



After sold service
1.Anytime on line technology support
support
3.send the technician to your place for helping



Technical parameter

XR3200H-382

Print technology:

Drop-on-demand Piezo electric

Printhead:

4/6/8/12(SAAR382)

Print width:

3.2m

Resolution:

1440dpi max

Speed:

2pass 110sqm/h ;4pass 55sqm/h ;6pass 35sqm/h(4/6 heads, half speed)

Locating mode:

Raster /servo

Color:

CMYK LC LM

Media width:

3.2m

Media handle:

Roll to roll

Media types:

Flex banner,vinyl sheet,one way vision,mesh,PVC fabrics,paper,etc

Ink:

Solvent/two-year outdoor lifetime

Drying system

Heater/Fans

File format:

TIFF,JPEG,Postscript 3,EPS,PDF

Working process:

Printmon software for windows xp

Rip:

Photoprint /maintop

Power supply:

50hz/60hz 220v(10%)20A

Operation enviroment:

(Temperature )18-26(Humidity )40%-70%

Dimesion:

5.2m*1.4m*1.5m

Weight:

1500Kg/2200Kg

 3.2m Solvent outdoor printer with Xaar382 printhead
