Home > Packaging & Printing > Printing Machinery > Digital Printing Machine > Large Format Solvent Printer: XR3208

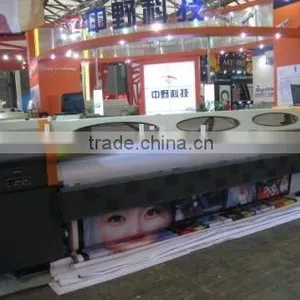

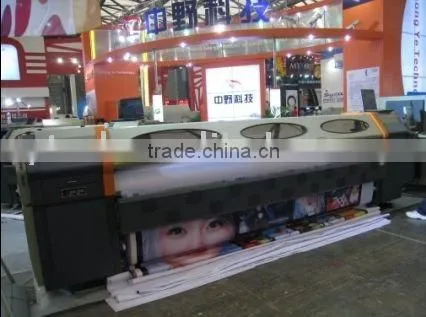

Large Format Solvent Printer: XR3208
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Plate Type:
Other
Place of Origin:
China
Brand Name:
ZY
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Big Advertisement Digital Inkjet Solvent Printer Large Format Solvent Printer ZY-XR2000HUS$ 7,000 - 10,000MOQ: 1 Piece -
3.2m Solvent Outdoor Printer With Xaar382 PrintheadUS$ 11,000 - 18,000MOQ: 1 Piece
-
3.2m Digital Witcolor Solvent Inkjet Printer With CE CertificationUS$ 12,000 - 23,000MOQ: 1 Piece
-
Large Format Digital Solvent Printer With Xaar HeadUS$ 5,000 - 10,000MOQ: 1 Piece
-
XR2500 Large Format Digital PrinterUS$ 6,500 - 11,800MOQ: 1 Set
Plate Type
Other
Place of Origin
China
Brand Name
ZY
Model Number
3200
Usage
Other, outdoor advertising
Voltage
220V
Gross Power
1500-3000W
Dimensions(L*W*H)
4.8m*0.8m*1.5m
Weight
650KG
Certification
CE,ISO
Specifications
large format solvent printing, Max resolution 720dpiMax printwidth 3.20m,8 pcs printhead adopting XAAR128,high speed
ZhongYe XAAR series Large Format Solvent Printer:adopting xaar 128print head, DC motor&raster locating mode,cost-effective and in high resolution up to 720dpi.The first choice forcommon customers newly to printing industry.
details
| Large Format solventPrinter ZY-XAAR3208 | |
| Name | ZY-XAAR3208 |
| Class | ZY-XAAR series |
| Print technology | Drop-on-demand Piezo electric |
| Printhead | 8 XAAR128 |
| Print width | 3.2 m |
| Resolution | 1440dpi max |
| Speed6psc | 2pass 60m/h ; 4pass 35m/h ; 6pass 18m/h |
| Locating mode | Raster /servo |
| Color | C M Y K |
| Media width | 3.20m |
| Media handl | Roll to roll |
| Media types | Flex banner,vinyl sheet,one way vision,mesh,PVC fabrics,paper,etc |
| Ink | Solvent/two-year outdoor lifetime |
| File format | TIFF,JPEG,Postscript 3,EPS,PDF |
| Working process | Printmon software for windows xp |
| Rip | Photoprint /maintop |
| Power supply | 50hz/60hz 220v(10%)20A |
| Operation environmeng | (Tempperature )18-26(Humidity )40%-70% |
| Dimesion | 4.8m*0.8m*1.5m |
| Weight | 670Kg |
Configuration below is according to different models:
Motor: Japanese Panasonic, Fuji AC servo motor;
Rail:Japanese THK,Tawinese HWIN;
Heating system:front&back double heating;
Feed-in&take-up system:IR controlled auto feed-in&take-up system;
Printhead cleaning system: positive pressure, vaccum
Ink system:German KNF ink supply system,Japanese negative pressure system.
