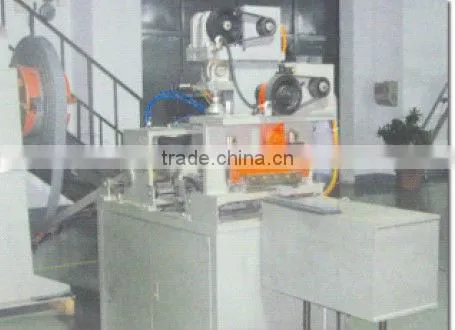

Reactor Machine
1. General Description
Uses: used for automatic cutting silicon steel sheet used for the reactor . With automatic punching
( Round hole, rectangular holes ) , Cut feature , Arbitrary number of holes, pitch and length of cut , as a special equipment for reactor core cutting.
2. Equipment composition and description for Reactor Machine
1)the single head of De-coiling machine ( load 2 ton , variable frequency control automatic discharge)
2)buffers ramp ( speed control , Automatic acceleration and deceleration , start a smooth)
3) AC servo feed mechanism ( closed-loop control , ensure that the cutting length precision)
4)punch ( electric eccentric mechanism , easy to mould , mould of cemented carbide)
5)shearing machine ( electric eccentric mechanism , easy to mould , mould of cemented carbide, you can adjust the
cutting angle)
6)track positioning ( Manual width adjustment , digital display , track with carbide tips , maintenance-free)
7)feed mechanism ( two-position control , uninterrupted production)
8)operation ( touch-screen control , Chinese interface , button operation blending)
9)the control cabinet ( integrated structure , transport and easy installation)
3 . Shearing process
Uncoiler reel relax, buffered Board automatically detects the material position and material conveying speed , Automatic unwinding speed , After PLC Calculation , Long feeding servo motor, by cutting the mold , Cutting tool, cut-meets the requirements of the drawings, then acting devices, stacked pile on the work desk, complete processing.
4. key Technical Specification
| ModelParameters | HJ-400 |
| Cut width | 30 - 420mm |
| Cut length | 10 - 1000mm |
| Cutting thickness | 0.23 - 0.5mm |
| Cutting length precision | ±0.1mm |
| Cutting Burr | ≤ 0.02mm |
| Shear angle accuracy | ±0.025° |
| Feed speed | 0 - 180m/min ( actual cutting speeds associated with tablets) |
| Each time you cut time | ≤ 0.23 Seconds |
| Tool life | 120 More than million |
| Positioning | Center location , Manually adjustable wide digital display |
| Man-machine interface | Touch screen / Soft keyboard |
| Installed capacity | 10kw |
5.Key Components
| PLC , Touch panel, servo motor, servo drives, frequency converter : | Huichuan; |
| Relay : | Schneider ; |
| Button : | Germany Moeller; |
| Bearings: | Germany FAG |
| Guide: | Taiwan's silver company products. |
Shanghai TRIHOPE International Co., Ltdwas registered in Shanghai China in the year of 2003. Its total investment is about USD 2 Million. Being a professional foreign trading company, TRIHOPE is also the marketing institute of its sister company M/s SENERGE Electric Equipment Co., Ltd,which is a professional equipment manufacturer.
SENERGE Electric Equipment Company (SENERGE) was established in 2009, located in Shanghai Zhang Jiang Pinghu Hi-Tech Zone. The total investment of SENERGE is more than 5 million USD. SENERGE has full range of good machines and tools to ensure its machining process and offer customer good quality products.
Chen Jiabing (Chief Designer)
More than 35 years working experience of design and manufacturing in transformer industry. Served as tranformer and transformer equipment design and technology in Shanghai Transformer Factory, ALSTOM, AREVA, and other domestic transformer factories.
Wei Wang (Chief Production Officer)
With 35 years working experience in transformer industry. Served as transformer manufacturing in Shanghai Transformer Factory, ALSTOM, AREVA, and other domestic transformer factories.
Wang Daming ( Chief Service Officer)
Master degree of enigneering. 25 years working experience. Once worked in Pakistan, Indonesia overseas factories; visited nearly 40 countries, traveling throughout Africa, South America, America, Oceania, Asia and other places, with a wealth of experience working overseas.
