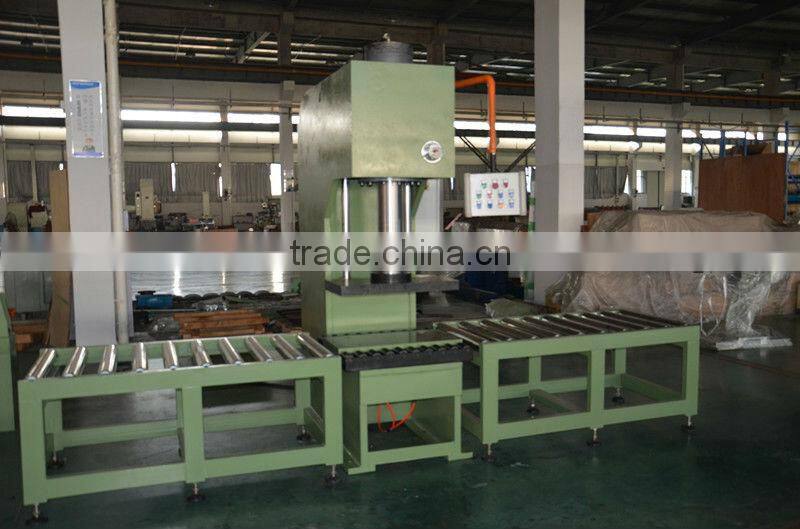

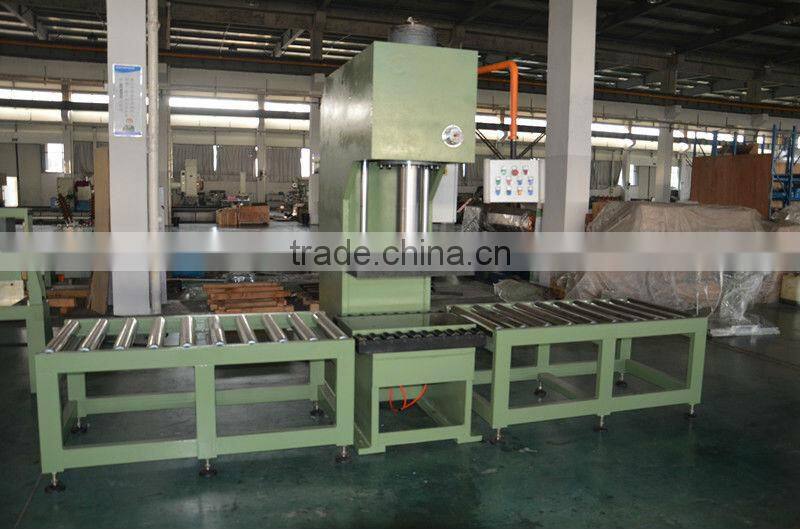

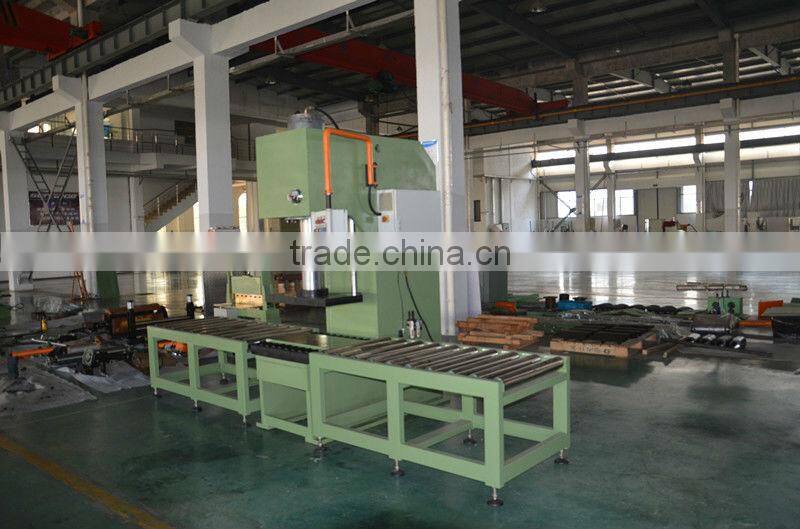

YFQ41-100 Coil Presses used in Transformer
1. equipment consists of: a large rack , countertops, slide, upper and lower plate , wire devices, power cylinders, hydraulic systems, electrical systems, pneumatic systems, such as left and right roller ;
2. The main performance parameters :
Nominal:100T
Hydraulic system rated pressure:25 Mpa
Maximum stroke: 500mm slide
Slider 800mm distance away from the table
Slider working speed:12 mm / s
Slider maximum downlink speed: 80mm / s
Slider Return speed: 50mm / s
Throat depth: 400mm
Surface height: 800mm
Table size ( length × width ) :800 * 700mm
Worksurface configuration sets controlled by a pneumatic roller device uplift , uplift force is greater than equal to 2000kg
Arranged on the table left and right two sets of roller sets , bearing each 1500kg, table height can be adjusted to make it match the height of the table
Equipment Dimensions 2200 * 2800 * 1500mm ( H * W * D )
Motor power ( pump motor ):11 kw,
Energy 15kw 380V 50Hz three-phase four-wire
Air source 0.6 Mpa 0.1 m3/min
Shanghai TRIHOPE International Co., Ltdwas registered in Shanghai China in the year of 2003. Its total investment is about USD 2 Million. Being a professional foreign trading company, TRIHOPE is also the marketing institute of its sister company M/s SENERGE Electric Equipment Co., Ltd,which is a professional equipment manufacturer.
SENERGE Electric Equipment Company (SENERGE) was established in 2009, located in Shanghai Zhang Jiang Pinghu Hi-Tech Zone. The total investment of SENERGE is more than 5 million USD. SENERGE has full range of good machines and tools to ensure its machining process and offer customer good quality products.
Chen Jiabing (Chief Designer)
More than 35 years working experience of design and manufacturing in transformer industry. Served as tranformer and transformer equipment design and technology in Shanghai Transformer Factory, ALSTOM, AREVA, and other domestic transformer factories.
Wei Wang (Chief Production Officer)
With 35 years working experience in transformer industry. Served as transformer manufacturing in Shanghai Transformer Factory, ALSTOM, AREVA, and other domestic transformer factories.
Wang Daming ( Chief Service Officer)
Master degree of enigneering. 25 years working experience. Once worked in Pakistan, Indonesia overseas factories; visited nearly 40 countries, traveling throughout Africa, South America, America, Oceania, Asia and other places, with a wealth of experience working overseas.
