Specifications

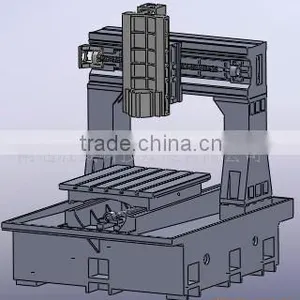

Fuselage of CNC routertable size:550x650mm
travel:600x600x250mm
spindle speed:600-24000rpm
working load:200kg
welcome to visit our website,the specification data of Fuselage of CNC router SW-DX6060 is as followed,if you need other information of our machine,please contact me freely or visit our factory by feild trip.
SW-DX6060 Specifications:
Model |
Table dimension (length×width)(mm) |
Table T groove (mm) |
Working load (kg) |
Travel(X,Y,Z)(mm) |
Spindle speed (rpm) |
SW-DX6060 |
550×650 |
5-14 |
200 |
600×600×250 |
600-24000 |
Details information:
Brand |
Sunway |
Model |
SW-DX6060 |
Weight |
1800 kg |
Motor power |
3.2/4.0kw |
Range of process dimension |
600×600(mm) |
Control system |
- |
Travel parameter(mm) |
600×600×250 |
Range of spindle speed |
- 600-24000 rpm |
Configurations:
|
Type NO. |
Name |
Brand Habitat |
Remarks |
1 |
High-speed electrical spindle |
Xingcheng |
4KW/3.2KW/Constant Power |
2 |
Coupling Shaft |
Mikipulley (Japan) |
|
3 |
Ball screw of three axles |
C3 level double nuts ball screw of 3 axis |
|
4 |
Beeline rail of three axles |
High Precision beeline guide of HIWIN (Taiwan) |
|
5 |
Lubrication way |
Nanjing (Jiangsu) |
Centralized Oiling |
6 |
Axletree |
Japan of NSK or NACHI |
P4 level of high accurate match axletrees |
7 |
Whole Machine Painting |
Plastic Spraying |
|
8 |
Accurate Round Nuts |
Taiwan |
|
9 |
Shield Of Y-axis |
Domestic |
Stainless Steel |
10 |
Bolts of whole machine |
High Intensity 12.9 Grade |
|
