Specifications

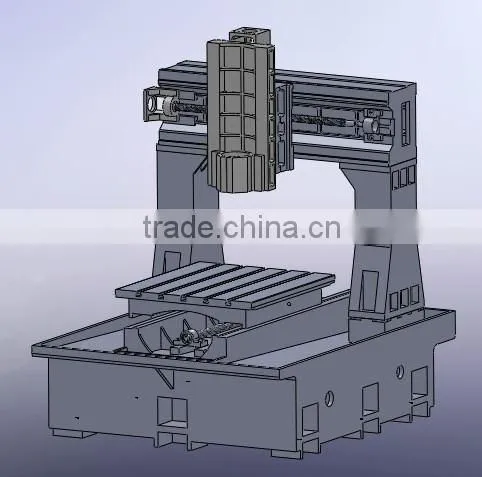

Frame of Engrave Milling Machine,the casting is from OEM factory of DMG with high rigid and quality.it is popular here.welcome to visit our website,the specification data of Frame of Engrave Milling Machine SW-DX6060 is as followed,if you need other information of our machine,please contact me freely or visit our factory by feild trip.
SW-DX6060 Specifications:
Model |
Table dimension (length×width)(mm) |
Table T groove (mm) |
Working load (kg) |
Travel(X,Y,Z)(mm) |
Spindle speed (rpm) |
SW-DX6060 |
550×650 |
5-14 |
200 |
600×600×250 |
600-24000 |
Details information:
Brand |
Sunway |
Model |
SW-DX6060 |
Weight |
1800kg |
Motor power |
-kw |
Range of process dimension |
600×600(mm) |
Control system |
- |
Travel parameter(mm) |
600×600×250 |
Range of spindle speed |
- 600-24000 rpm |
Configurations:
|
Type NO. |
Name |
Brand Habitat |
Remarks |
1 |
High-speed electrical spindle |
Xingcheng |
4KW/3.2KW/Constant Power |
2 |
Coupling Shaft |
Mikipulley (Japan) |
|
3 |
Ball screw of three axles |
C3 level double nuts ball screw of 3 axis |
|
4 |
Beeline rail of three axles |
High Precision beeline guide of HIWIN (Taiwan) |
|
5 |
Lubrication way |
Nanjing (Jiangsu) |
Centralized Oiling |
6 |
Axletree |
Japan of NSK or NACHI |
P4 level of high accurate match axletrees |
7 |
Whole Machine Painting |
Plastic Spraying |
|
8 |
Accurate Round Nuts |
Taiwan |
|
9 |
Shield Of Y-axis |
Domestic |
Stainless Steel |
10 |
Bolts of whole machine |
High Intensity 12.9 Grade |
|
