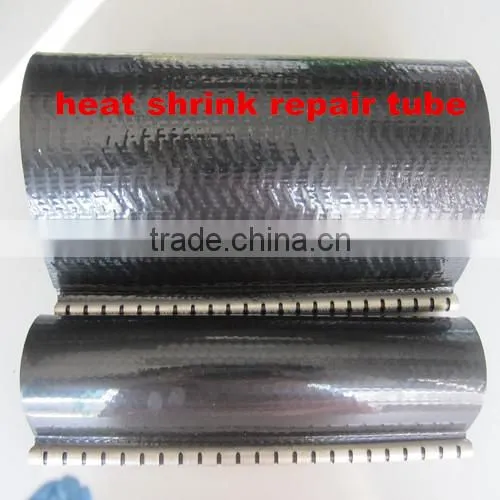

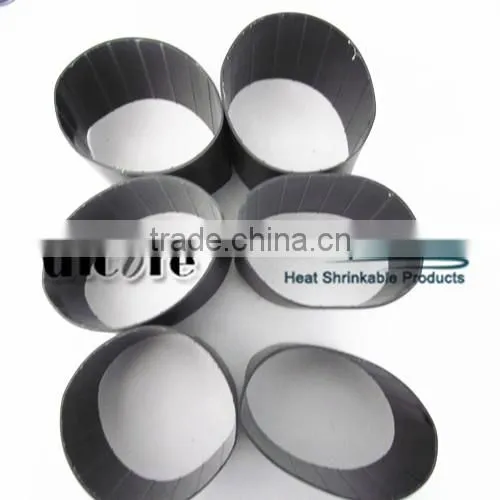

hdpe pipe protection tube / steel pipe fittings/ shrink tube pipe accessories
MHST-A is medium wall heat shrinkable tubing with hot melt adhesive, having properties of excellent insulating, environmental sealing, and resistant to impact and abrasion. It is designed for applications to seal and protect electrical splices, cable terminations and joints where electrical insulation and water proof are required. 3:1 shrink ratio allows it easily fit over irregular shape and large connectors.
Features
>Resistant to UV-radiation
>High electrical insulation
>Superior mechanical property
>Minimum fully recovery temperature: 120℃
>Standard color: Black
Property |
Test Method |
Typical Data |
Operating temperature |
IEC 216 |
-55℃ to +110℃ |
Tensile strength |
ASTM D 2671 |
≥14Mpa≥ |
Tensile strength after aging (150℃/168hrs.) |
ASTM D 2671 |
≥12MPa |
Elongation at break |
ASTM D 2671 |
≥400% |
Elongation at break after aging (150℃/168hrs.) |
ASTM D 2671 |
≥300% |
Density |
ASTM D 792 |
1.05g/cm3 |
Longitudinal shrinkage |
UL 224 |
0 to -10% |
Dielectric strength |
IEC 243 |
≥20kV/mm |
Volume resistance |
IEC 93 |
>1014Ω.cm |
Eccentricity |
ASTM D 2671 |
<30% |
Copper stability |
ASTM D 2671 |
Pass |
Resistance to stress cracking (50℃) |
ASTM D 1693 |
No cracking |
Water absorption (23℃/14days) |
ISO 62 |
<0.15% |
Property |
Test Method |
Typical Data |
Water absorption |
ISO 62 |
<0.2% |
Softening point |
ASTM D E28 |
85℃ |
Peel strength (PE) |
DIN 30672 |
4N/cm |
Copper stability |
ASTM D 2671 |
Non-corrosive |
Resistance to fungus and decay |
ISO 846 |
Pass |
|
Normal size (mm) |
As supplied(mm) |
After recovered (mm) |
Tube shape |
Standard length |
|
|
Inside diameter (Min.) |
Inside Diameter (Max.) |
Wall thickness (Min.) |
|||
MHST-A 8/2 |
8 |
2 |
1.7 |
O |
1000-1500mm |
MHST-A 12/3 |
12 |
3 |
2.0 |
O |
1000-1500mm |
MHST-A 16/5 |
16 |
5 |
2.2 |
O |
1000-1500mm |
MHST-A 19/5 |
19 |
5 |
2.5 |
O |
1000-1500mm |
MHST-A 22/6 |
22 |
6 |
2.5 |
O |
1000-1500mm |
MHST-A 28/6 |
28 |
6 |
2.5 |
O |
1000-1500mm |
MHST-A 33/8 |
33 |
8 |
2.5 |
O |
1000-1500mm |
MHST-A 40/12 |
40 |
12 |
2.5 |
O |
1000-1500mm |
MHST-A 55/16 |
55 |
16 |
2.7 |
O |
1000-1500mm |
MHST-A 65/19 |
65 |
19 |
2.8 |
O |
1000-1500mm |
MHST-A 75/22 |
75 |
22 |
3.0 |
O |
1000-1500mm |
MHST-A 85/25 |
85 |
25 |
3.0 |
O |
1000-1500mm |
MHST-A 95/25 |
95 |
25 |
3.0 |
O |
1000-1500mm |
MHST-A 115/34 |
115 |
34 |
3.0 |
O |
1000-1500mm |
MHST-A 140/42 |
140 |
42 |
3.0 |
O |
1000-1500mm |
MHST-A 160/50 |
160 |
50 |
3.0 |
O |
1000-1500mm |
MHST-A 180/58 |
180 |
58 |
3.0 |
O |
1000-1500mm |
MHST-A 205/65 |
205 |
65 |
3.0 |
O |
1000-1500mm |
MHST-A 235/65 |
235 |
65 |
3.0 |
O |
1000-1500mm |
MHST-A 265/75 |
265 |
75 |
3.0 |
O |
1000-1500mm |
MHST-A 300/85 |
300 |
85 |
3.0 |
O |
1000-1500mm |
MHST-A 350/100 |
350 |
100 |
3.0 |
O |
1000-1220mm |
Remarks:
1. MHST-A is with Hot Melting Adhesive, Without Adhesive product(MHST) is available upon request.
2. Cutting pieces are available on request.
3. Tube shape: “O” : Round or Oval, “—”: Flat
Packing: 1m/pc, 1.22m/pc, 1.5m/pc other packing on request
Shipping: Sample by Express, by air Large Volume by sea
Dicore is a professional supplier of various heat shrinkable products, including Different kinds of Heat Shrinkable Tubing/Sleevings, Heat Shrinkable Moulded Shapes products from kinds of material like Polyolefin, Silicone Rubber, PTFE, Polyvinylidene Fluoride(PVDF), Fluoroelastomer(Viton),etc. They are widely used in the field of Energy, Electronic, Automotive, Communications, Military, and Building&shipbuilding to provide effective insulation and protection the functional parts, components and systems.
1. Free sample can be offered.
2. Delivery time: 10days after payment receive.
1. What is Heat Shrink tube?
Heat Shrink Tubing is a tube that contracts when warmed. When heat is applied to heat shrink tubing, the adhesive material inside of the tube is activated. The material then secures it to the wire or cable. This allows the wire or cable and the heat shrink tube to become one unified product.
2. How do i shrink the tube?
There are various ways to shrink the tube but the most common is with a hot air gun. Apply the heat evenly around the tube working either from the middle out or from one end to the other until full recovery is achieved.
