Product Details
Place of Origin: | Guangdong, China | Brand Name: | Dicore | Model Number: | HHST |
Type: | Other, Insulation Sleeving, heat shrinkable | Material: | Other, PE, Polyolefin | Application: | Low Voltage |
Rated Voltage: | 600V | Tensile Strength: | 10.4Mpa |
Product Description

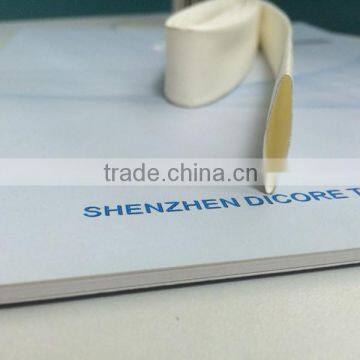

battery packs heat shrink insulation sleeve
Description:
Polyolefin Material, 125℃, UL/CSA VW-1, 2:1 or 3:1 shrink ratio, flexible, fast shrinking, flame-retardant, RoHs compliant, all kind of color, sizes from 0.8mm-120mm.
TEST STANDARD : | UL 224VW-1C-UL CSA C 22.2 OFT RoHs Compliant |
COLORS : | Black, Red, Blue, White, Yellow, Green, Clear, Yellow-Green, etc. (Other colors are available on request.) |
Shrinking Ratio : | 2:1, 3:1 |
Rated voltage: | 600V |
PROPERTY
Item | Value |
Shrinking temperature | Start at 70℃ |
Operating temperature | -55℃~125℃ |
Redial shrinking ratio | ≥50% |
Longitudinal shrinkage | ≤5% |
Tensile strength | ≥14Mpa |
Volume resistance | >1014 Ω/cm |
Dielectric strength | ≥15 KV/mm |
Flammability | UL224, VW-1 |

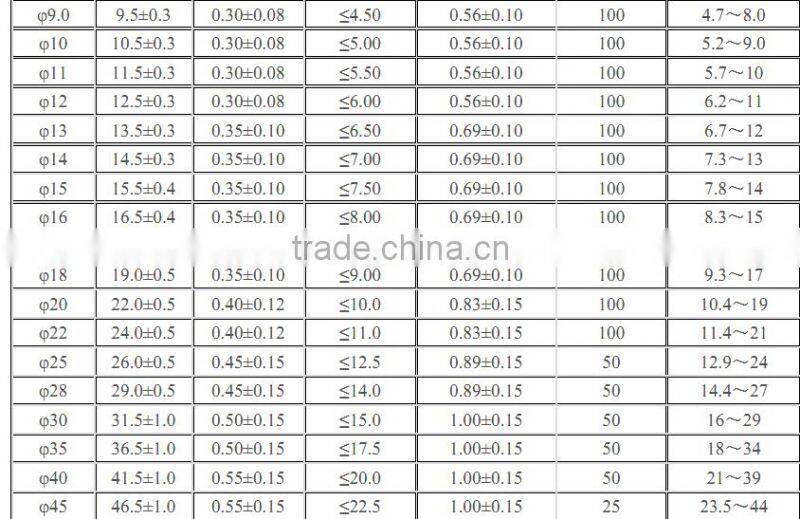

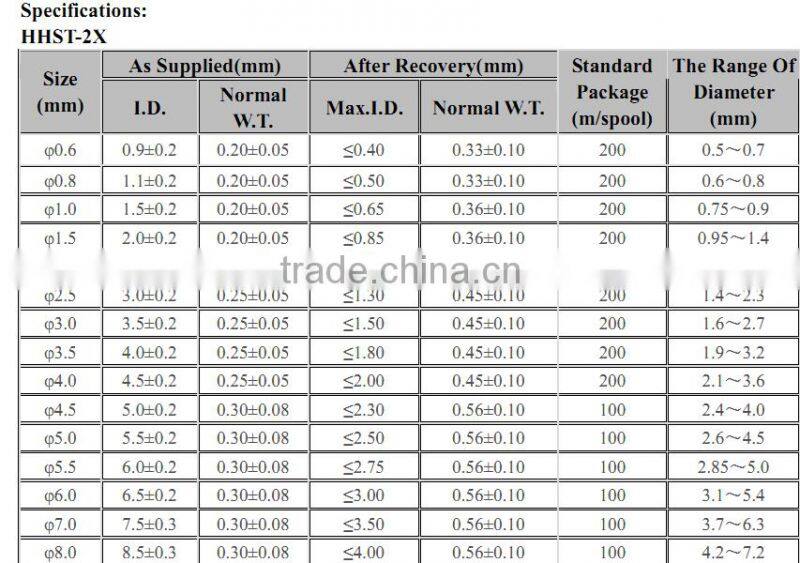

Other size is available on request
Dicore is a professional supplier of various heat shrinkable products, including Different kinds of Heat Shrinkable Tubing/Sleevings, Heat Shrinkable Moulded Shapes products from kinds of material like Polyolefin, Silicone Rubber, PTFE, Polyvinylidene Fluoride(PVDF), Fluoroelastomer(Viton),etc. They are widely used in the field of Energy, Electronic, Automotive, Communications, Military, and Building & ship building to provide effective insulation and protection the functional parts, components and systems.
Dicore has been dedicated to this field since 2003 as an exporter and distributor, and set up our own factory and technical engineering team in the year of 2007. All products presented to our clients have already passed our interior strict quality control examination, which enable our clients to easily choose suitable products with exceptional quality.
Dicore draws upon its powerful Technology team, big producing capacity, well-known purchasing ability and close relationship with manufactures to offer full line products with exceptional quality, and bring productivity improvements to our clients. As an One-Stop supplier, we have our special advantages in this field as following:
- One-Stop Supply of Heat Shrinkable Products and Wiring Harness.
- Competitive price and flexible payment terms.
- Abundant stocks and short delivery time.
- Professional exporting experience and best service quality.
