Heat Shrink Type Speaker Wire Cable Sleeve

Heat Shrink Type Speaker Wire Cable Sleeve thumbnail-1
Heat Shrink Type Speaker Wire Cable Sleeve thumbnail-2
Heat Shrink Type Speaker Wire Cable Sleeve photo-1
Heat Shrink Type Speaker Wire Cable Sleeve photo-2
US$ 0.1 - 10 MOQ: 100 Meters
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Dicore
Model Number:
DHST
Contact Supplier Request Quote Chat Now
Shenzhen Dicore Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Dicore
Model Number DHST
Type Other, Insulated, heat shrink
Application Heating
Conductor Material Other
Conductor Type Other
Insulation Material PE

heat shrink type speaker wire cable sleeve



Product Description

 Material:  co-extrusion of polyolefin and hot-melt adhesive

 Application: provide both insulation and sealing for protected articles, and  protectable bundles wires and metal tubes against water and moisture





>Shrinking Ratio: 2:1, 3:1, 4:1



>Approval: UL 125℃  VW-1 600V



>Meet: SAE-AMS-DTL-23053/4



>Operating temperature: -45℃to +125℃



>Minimum shrink temperature: 80℃



>Minimum fully recovery temperature: 120℃



>Standard color: Black



>Special color: Red, Blue, White, Yellow



>Clear (non-flame retardant jacket)



DHST-3X

       Specs.

As Supplied

I.D. (mm)

(Min)

       After Recovery (mm)

Standard length

(m/spool)

Size (mm)

Inch

W.T.

(Nom)

W.T of Adhesive

I.D.

(Max)

φ3.2

1/8

3.2

0.95±0.15

0.40±0.10

1.00

200

φ4.8

3/16

4.8

1.10±0.15

0.40±0.10

1.60

100

φ6.4

1/4

6.4

1.20±0.15

0.45±0.10

2.20

100

φ7.9

5/16

7.9

1.35±0.15

0.50±0.10

2.70

100

φ9.5

3/8

9.5

1.45±0.20

0.50±0.15

3.20

50

φ12.7

1/2

12.7

1.70±0.20

0.55±0.15

4.20

1.22

φ15.0

5/8

15.0

1.80±0.20

0.50±0.15

5.20

1.22

φ19.1

3/4

19.1

2.00±0.20

0.50±0.15

6.30

1.22

φ25.4

1

25.4

2.10±0.25

0.50±0.15

8.50

1.22

φ30.0

1-1/4

30.0

2.20±0.25

0.60±0.15

10.20

1.22

φ39.0

1-1/2

39.0

2.40±0.25

0.60±0.15

13.50

1.22

φ50.0

2

50.0

2.70±0.25

0.80±0.15

17.00

1.22



DHST-4X

Normal size

As supplied (mm)

Inside diameter

(Min.)

After recovered (mm)



Standard length

(m/spool)



(mm)



(inch)

Inside diameter

(Max.)

Total wall thickness



Adhesive thickness

(Nom.)

4/1

2/13

4.0

1.0

1.0±0.15

0.4±0.15

200

6/1.5

1/ 4

6.0

1.5

1.1±0.15

0.4±0.15

100

8/2

5/16

8.0

2.0

1.2±0.15

0.5±0.15

1.22

12/3

1/2

12.0

3.0

1.4±0.15

0.5±0.15

1.22

16/4

5/ 8

16.0

4.0

1.7±0.15

0.6±0.15

1.22

20/5

15/19

20.0

5.0

2.0±0.25

0.6±0.15

1.22

24/6

1

24.0

6.0

2.1±0.25

0.6±0.15

1.22

32/8

1-1/4

32.0

8.0

2.4±0.25

0.7±0.15

1.22

52/13

2

52.0

13.0

2.4±0.25

0.7±0.15

1.22

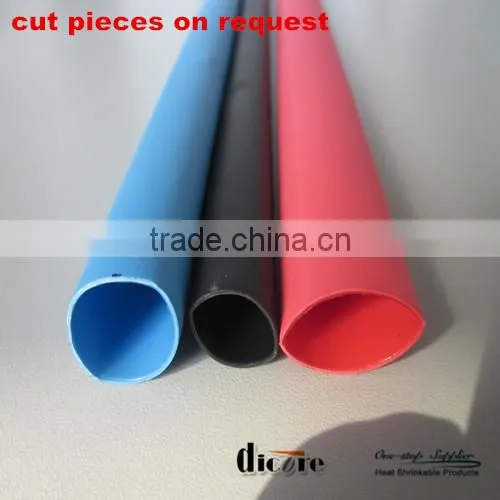

*Special size, cutting pieces are available on request.





Packaging & Shipping

 Packaging:  100m/roll  200m/roll  Special size, cutting pieces are available on request



 Shipping: Sample by Express Large volume by Sea



heat shrink type speaker wire cable sleeveheat shrink type speaker wire cable sleeve

















Company Information



Dicore is a professional supplier of various heat shrinkable products, including Different kinds of Heat Shrinkable Tubing/Sleevings, Heat Shrinkable Moulded Shapes products from kinds of material like Polyolefin, Silicone Rubber, PTFE, Polyvinylidene Fluoride(PVDF), Fluoroelastomer(Viton),etc. They are widely used in the field of Energy, Electronic, Automotive, Communications, Military, and Building & ship building to provide effective insulation and protection the functional parts, components and systems.

Dicore has been dedicated to this field since 2003 as an exporter and distributor, and set up our own factory and technical engineering team in the year of 2007. All products presented to our clients have already passed our interior strict quality control examination, which enable our clients to easily choose suitable products with exceptional quality.

Dicore draws upon its powerful Technology team, big producing capacity, well-known purchasing ability and close relationship with manufactures to offer full line products with exceptional quality, and bring productivity improvements to our clients. As an One-Stop supplier, we have our special advantages in this field as following:

  • One-Stop Supply of Heat Shrinkable Products and Wiring Harness.
  • Competitive price and flexible payment terms.
  • Abundant stocks and short delivery time.
  • Professional exporting experience and best service quality.
