heat shrink tube for fishing rod/ fishing rod sleeve Supplier's Choice
- 100000000 Meter / Meters per Month
- Shenzhen
- Credit Card
You May Like
Product Details
Place of Origin | Guangdong, China | Brand Name | DICORE | |
Model Number | NHST | Material | Other, PE, PE | |
Length (cm) | 4 |
Product Description

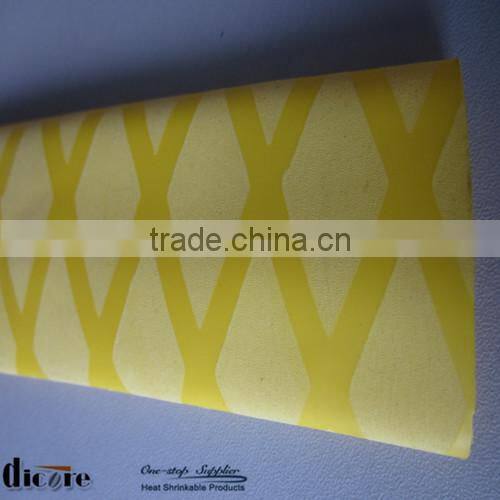

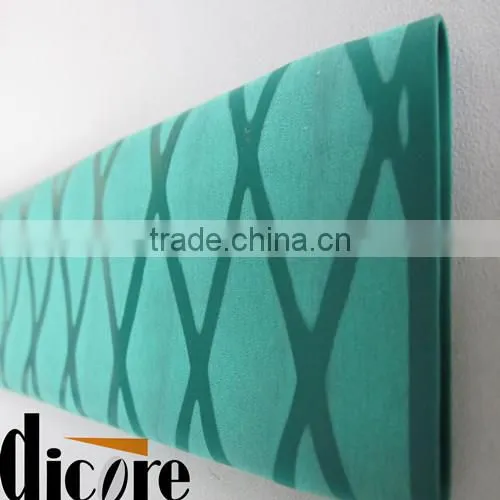

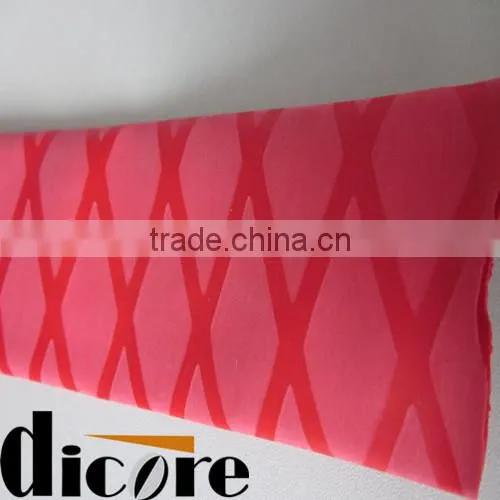

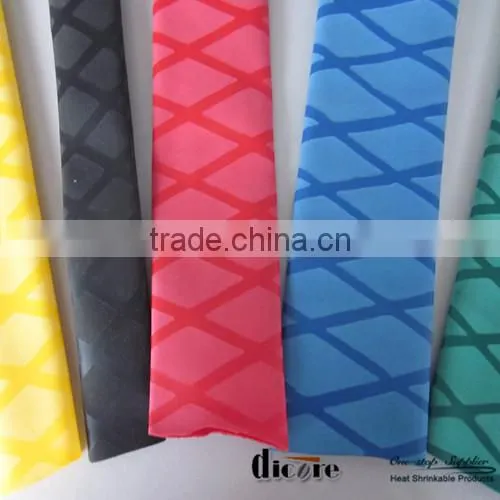

heat shrink tube for fishing rod/ fishing rod sleeve
Widely applied in tennis racket, badminton racket, fishing rod, baseball bat,
billiard cue, hockey stick, industrial hand tool, athletic equipment and various
handles. Increased friction and safety on smooth surfaces minimizes slipping.
Characteristics
>Unique surface designed by environment friendly PE material for durable abrasion.
>Flannel decorative surface provides excellent sweat absorption.
>Ratio 50% (2:1) will be conveniently applied in covering irregular shape.
>Avoiding and solving girdle loosen up from handle
>Innovatory material designed for excellent performance and upgrade product value.
>Different colors and private pattern are available on request for individual design.
>Economical and easy to install, it’s extremely proper to DIY market
Technical Data
Test item | Value |
Operation temperature | -55℃ to +110℃ |
Tensile strength | ≥14Mpa |
Shrinking temperature | Start at 60℃ |
Radial shrinking ratio | ≥ 50% |
Rated volume | 600V |
Dielectric strength | ≥25KV/mm |
Volume resistance | 1014Ω.cm |
Longitudinal shrinkage | <8% |
Specification
SIZE | As supplied(mm) | After shrinkage(mm) | Standard | ||
I.D | W.T | I.D | W.T | Length/M | |
Φ10 | ≥Φ10 | 0.45±0.15 | <Φ6.0 | 0.80±0.15 | 0.3 |
Φ15 | ≥Φ15 | 0.45±0.15 | <Φ8.0 | 0.85±0.15 | 1.0 |
Φ20 | ≥Φ20 | 0.50±0.15 | <Φ11.0 | 0.90±0.15 | 0.8/1.0/1.6 |
Φ22 | ≥Φ22 | 0.50±0.15 | <Φ12.5 | 0.90±0.15 | 0.8/1.0/1.6 |
Φ25 | ≥Φ25 | 0.50±0.15 | <Φ14.5 | 1.00±0.15 | 0.8/1.0/1.6 |
Φ28 | ≥Φ28 | 0.50±0.15 | <Φ15.5 | 1.00±0.15 | 0.8/1.0/1.6 |
Φ30 | ≥Φ30 | 0.60±0.15 | <Φ17.5 | 1.20±0.15 | 0.8/1.0/1.6 |
Φ35 | ≥Φ35 | 0.60±0.15 | <Φ20.0 | 1.20±0.15 | 0.8/1.0/1.6 |
Φ40 | ≥Φ40 | 0.60±0.15 | <Φ23.0 | 1.20±0.15 | 0.8/1.0/1.6 |
Φ45 | ≥Φ45 | 0.65±0.15 | <Φ25.0 | 1.25±0.15 | 0.8/1.0/1.6 |
Φ50 | ≥Φ50 | 0.65±0.15 | <Φ28.0 | 1.25±0.15 | 0.8/1.0/1.6 |
Packaging: 0.8m/pc, 1m/pc, 1.6m/pc
Shipping: Sample by Express air, Large Volume by Sea
Dicore is a professional supplier of various heat shrinkable products, including Different kinds of Heat Shrinkable Tubing/Sleevings, Heat Shrinkable Moulded Shapes products from kinds of material like Polyolefin, Silicone Rubber, PTFE, Polyvinylidene Fluoride(PVDF), Fluoroelastomer(Viton),etc. They are widely used in the field of Energy, Electronic, Automotive, Communications, Military, and Building & ship building to provide effective insulation and protection the functional parts, components and systems.
- One-Stop Supply of Heat Shrinkable Products and Wiring Harness.
- Competitive price and flexible payment terms.
- Abundant stocks and short delivery time.
- Professional exporting experience and best service quality.
