Hdpe Shrink Steel Pipe Plastic End Cap/ Cable Top Hat With Adhesive

Hdpe Shrink Steel Pipe Plastic End Cap/ Cable Top Hat With Adhesive thumbnail-1
Hdpe Shrink Steel Pipe Plastic End Cap/ Cable Top Hat With Adhesive thumbnail-2
Hdpe Shrink Steel Pipe Plastic End Cap/ Cable Top Hat With Adhesive photo-1
Hdpe Shrink Steel Pipe Plastic End Cap/ Cable Top Hat With Adhesive photo-2
US$ 0.01 - 10 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Material:
Other, PE, PE
Technics:
Casting
Type:
Other, Cap, Cable terminal
Contact Supplier Request Quote Chat Now
Shenzhen Dicore Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Material Other, PE, PE
Technics Casting
Type Other, Cap, Cable terminal
Place of Origin Guangdong, China
Model Number HSEC
Brand Name dicore
Connection Other, heat shrink
Shape Other, round
Head Code Square

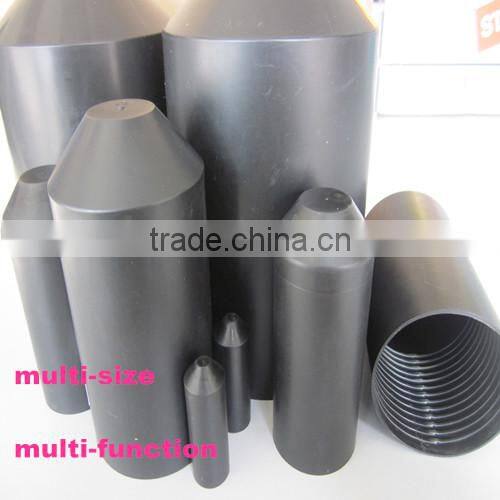

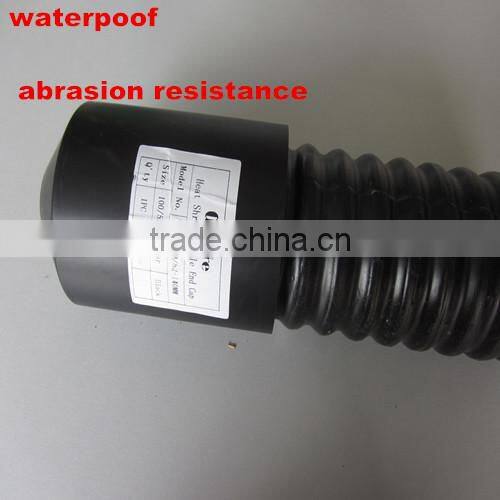

hdpe Shrink steel pipe plastic end cap/ cable top hat with adhesive



Product Description

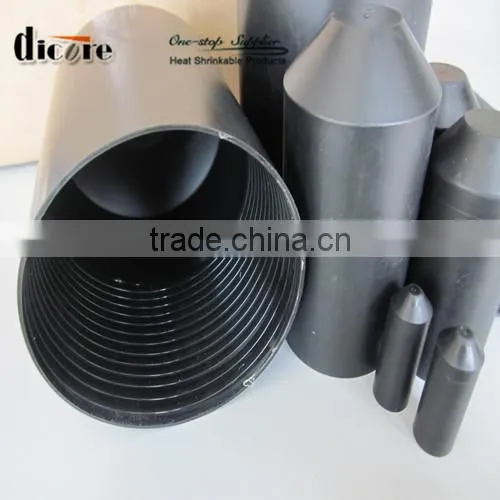

 Designed with a layer of spiral coated hot melt adhesive in the internal surface of the end cap, which provides highly resistant to moisture, fungus, and weathering, and recommended for use both in open air and on underground power distribution cables with PVC, lead or XLPE sheaths.

hdpe Shrink steel pipe plastic end cap/ cable top hat with adhesivehdpe Shrink steel pipe plastic end cap/ cable top hat with adhesive



hdpe Shrink steel pipe plastic end cap/ cable top hat with adhesive



Specification                                                      unit(mm)

Part No.

Inner Diameter

After fully

recovered Length

 ± 10%

After fully

recovered Width

 ± 10%

Cable diameter

As supplied

(min)

After fully

recovered (max)

Standard length end cap

H

EC-12/ 4

12

4.0

40

2.6

4-10

HSEC-14/ 5

14

5.0

45

2.2

5-12

HSEC-20/ 6

20

6.0

55

2.8

6-16

HSEC-25/ 8.5

25

8.5

68

2.8

10-20

HSEC-35/ 16

35

16.0

83

3.3

17-30

HSEC-40/ 15

40

15.0

83

3.3

18-32

HSEC-55/ 26

55

26.0

103

3.5

28-48

HSEC-75/ 36

75

36.0

120

4.0

45-68

HSEC-100/ 52

100

52.0

140

4.0

55-90

HSEC-120/ 60

120

60.0

150

4.0

65-110

HSEC-145/ 60

145

60.0

150

4.0

70-130

HSEC-160/ 82

160

82.0

150

4.0

90-150

HSEC-200/ 90

200

90.0

160

4.2

100-180

Extended length end cap

HSEC-L-14/ 5

14

5.0

55

2.2

5-12

HSEC-L-42/15

42

15.0

110

3.3

18-34

HSEC-L-55/ 23

55

23.0

140

3.8

25-48

HSEC-L-62/ 23

62

23.0

140

3.8

25-55

HSEC-L-75/ 32

75

32.0

150

4.0

40-68

HSEC-XL-75/ 36

75

36.0

170

4.2

45-68

HSEC-L-105/ 45

105

45.0

150

4.0

50-90


End cap with valve is available on request.







Packaging & Shipping

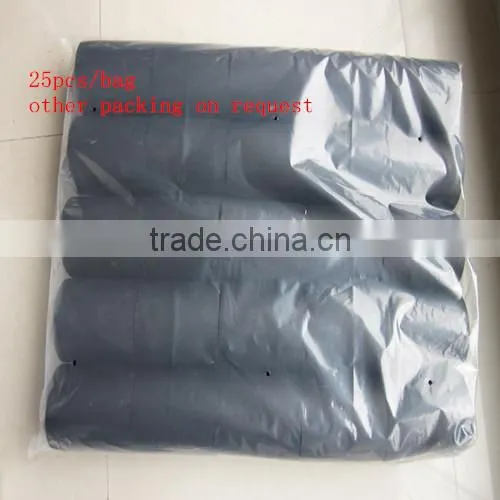

 Packing: 25pcs/bag, other packing on request



Shipping: Express (Samples)  By air By sea(large volume)

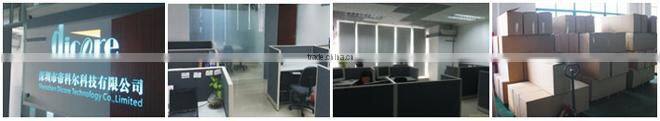

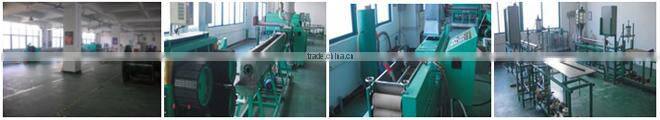

Company Information

  Dicore is a professional supplier of various heat shrinkable products, including Different kinds of Heat Shrinkable Tubing/Sleevings, Heat Shrinkable Moulded Shapes products from kinds of material like Polyolefin, Silicone Rubber, PTFE, Polyvinylidene Fluoride(PVDF), Fluoroelastomer(Viton),etc. They are widely used in the field of Energy, Electronic, Automotive, Communications, Military, and Building&shipbuilding to provide effective insulation and protection the functional parts, components and systems.



hdpe Shrink steel pipe plastic end cap/ cable top hat with adhesivehdpe Shrink steel pipe plastic end cap/ cable top hat with adhesive







Our Services

 a Reply you in 24 working hours



 b customizing are acceptable





FAQ

 1. What is your payment?



At present, Dicore only accept payment terms as below:

 a  T/T in advance.

 b. L/C at sight.

2. What kinds of heat shrink tube are available?

Please refer to our product selection guide,get on /products/.

Also,Dicore’s Heat Shrink Tubings are mainly used for Protecting Electrical Wire, Electric Cable,Fiber Optic, Automobile, High Temperature, you could choose these Catalogue for more.

3. How do I shrink the tube?

There are various ways to shrink the tube but the most common is with a hot air gun. Apply the heat evenly around the tube working either from the middle out or from one end to the other until full recovery is achieved.
