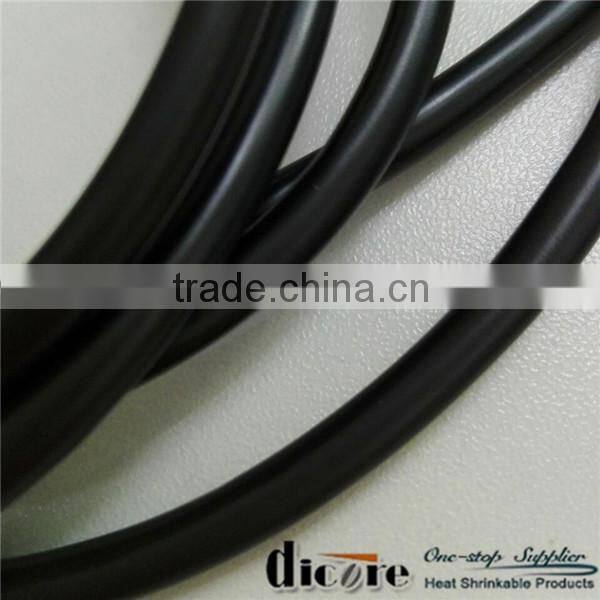

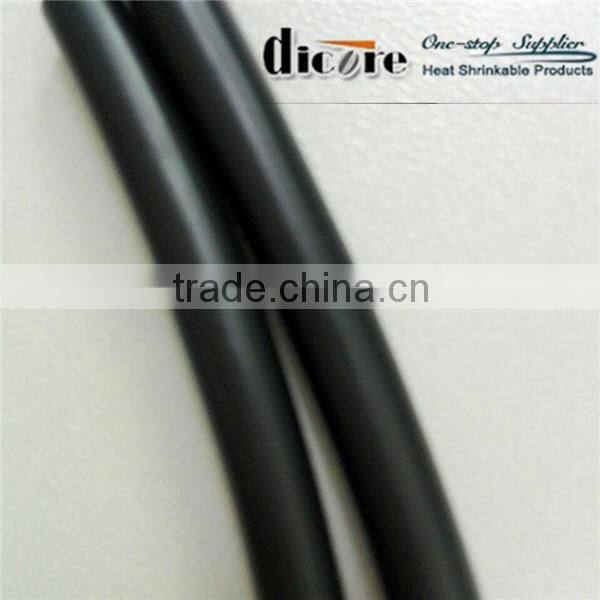

electrical wire sleeve/ shrinkable silicone rubber tubing
Model |
HSST |
Material |
Silicone Rubber heat shrink tubing |
Shrink ratio |
1.7:1 |
Tubing diameter |
1.0mm to 110mm |

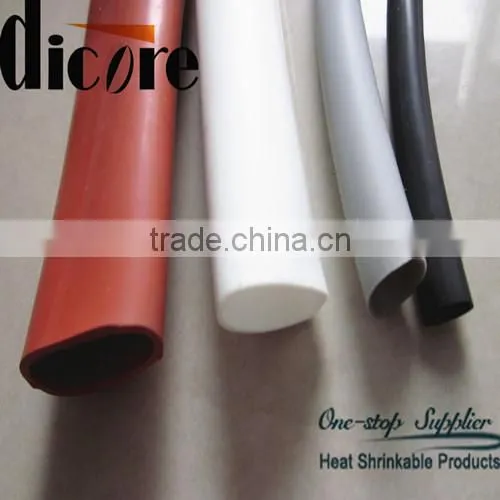

Standard color |
Black, red, gray |
1.Flexible electrical insulation sleeving and cable harnessing. | |

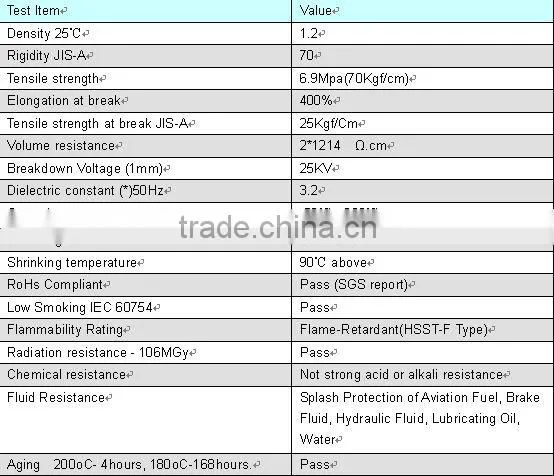

Property:
Specification:
|
Size (mm) |
Before Shrinking |
After Shrinking
|
||
I.D.(mm) |
Thickness(mm) |
I.D.(mm) |
Thickness(mm) |
|
φ1.0 |
1.0 |
0.5±0.1 |
0.6 |
0.7±0.1 |
φ1.5 |
1.5 |
0.5±0.1 |
0.8 |
0.7±0.1 |
φ2.0 |
2.0 |
0.5±0.1 |
1.2 |
0.7±0.1 |
φ2.5 |
2.5 |
0.5±0.1 |
1.5 |
0.7±0.1 |
φ3.0 |
3.0 |
0.5±0.1 |
1.8 |
0.7±0.1 |
φ3.5 |
3.5 |
0.5±0.1 |
2.0 |
0.7±0.1 |
φ4.0 |
4.0 |
0.5±0.1 |
2.5 |
0.7±0.1 |
φ4.5 |
4.5 |
0.5±0.1 |
2.8 |
0.7±0.1 |
φ5.0 |
5.0 |
0.5±0.1 |
3.0 |
0.7±0.1 |
φ6.0 |
6.0 |
0.5±0.1 |
3.8 |
0.7±0.1 |
φ7.0 |
7.0 |
0.5±0.1 |
4.0 |
0.7±0.1 |
φ8.0 |
8.0 |
0.5±0.1 |
4.8 |
0.7±0.1 |
φ9.0 |
9.0 |
0.5±0.1 |
5.0 |
0.7±0.1 |
φ10 |
10.0 |
1.0±0.1 |
6.5 |
1.7±0.1 |
φ12 |
12.0 |
1.0±0.1 |
7.0 |
1.7±0.1 |
φ15 |
15.0 |
1.0±0.1 |
9.0 |
1.7±0.1 |
φ18 |
18.0 |
1.0±0.1 |
11.0 |
1.7±0.1 |
φ20 |
20.0 |
1.0±0.1 |
13.0 |
1.7±0.1 |
φ25 |
25.0 |
1.0±0.1 |
15.0 |
1.7±0.1 |
φ30 |
30.0 |
1.0±0.1 |
18.0 |
1.7±0.1 |
φ35 |
35.0 |
1.0±0.1 |
20.0 |
1.7±0.1 |
φ40 |
38.0 |
1.0±0.1 |
25.0 |
1.7±0.1 |
φ50 |
47.0 |
1.0±0.1 |
30.0 |
1.7±0.1 |
φ60 |
57.0 |
1.5±0.1 |
38.0 |
2.5±0.1 |
φ70 |
67.0 |
1.5±0.1 |
45.0 |
2.5±0.1 |
φ80 |
77.0 |
1.5±0.1 |
48.0 |
2.5±0.1 |
φ90 |
87.0 |
1.5±0.1 |
52.0 |
2.5±0.1 |
φ100 |
97.0 |
1.5±0.1 |
57.0 |
2.5±0.1 |
φ110 |
107.0 |
1.5±0.1 |
63.0 |
2.5±0.1 |
Dicore is a professional supplier of various heat shrinkable products, including Different kinds of Heat Shrinkable Tubing/Sleevings, Heat Shrinkable Moulded Shapes products from kinds of material like Polyolefin, Silicone Rubber, PTFE, Polyvinylidene Fluoride(PVDF), Fluoroelastomer(Viton),etc. They are widely used in the field of Energy, Electronic, Automotive, Communications, Military, and Building&shipbuilding to provide effective insulation and protection the functional parts, components and systems.
