10 KV 35KV copper bus bar shrinkable sleeve/ bus bar tube
Model |
HBBT |
Material |
PE material |
Type |
1kv, 10kv, 15kv, 20kv, 25kv, 35kv |
Tubing diameter |
20mm to 300mm |
Standard color |
Red, green, yellow and black |
Operating temperature range |
-55°C to 125°C |
Shrink temp |
115°C |
Insulation and protect bus bar |

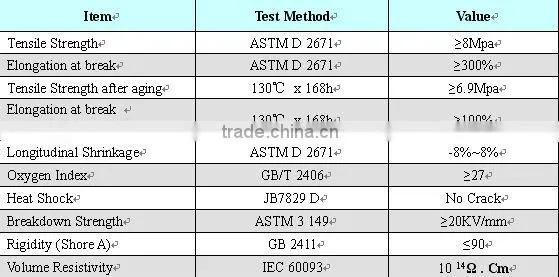

Property:
1KV
SIZE (mm) |
As Supplied(mm) |
After Recovery(mm) |
Packing (m/roll) |
|
I. D. |
I. D. (max) |
W. T. |
||
30 |
31.5±1.0 |
15.0 |
1.0±0.15 |
50 |
35 |
36.5±1.0 |
17.5 |
1.0±0.15 |
50 |
40 |
41.5±1.0 |
20.0 |
1.0±0.15 |
50 |
50 |
≥50 |
25.0 |
1.1±0.15 |
25 |
60 |
≥60 |
30.0 |
1.2±0.15 |
25 |
10kv, 20kv
SIZE (mm) |
As Supplied(mm) |
After Recovery(mm) |
Packing (m/roll) |
|
I. D. |
I. D. (max) |
W. T. |
||
15 |
≥15 |
6.0 |
2.5±0.20 |
25 |
20 |
≥20 |
8.0 |
2.5±0.20 |
25 |
25 |
≥25 |
10.0 |
2.5±0.20 |
25 |
30 |
≥30 |
12.0 |
2.5±0.20 |
25 |
40 |
≥40 |
16.0 |
2.8±0.30 |
25 |
50 |
≥50 |
20.0 |
2.8±0.30 |
25 |
65 |
≥65 |
26.0 |
2.8±0.30 |
25 |
75 |
≥75 |
30.0 |
2.8±0.30 |
25 |
85 |
≥85 |
34.0 |
2.8±0.30 |
25 |
100 |
≥100 |
40.0 |
2.8±0.30 |
25 |
120 |
≥120 |
48.0 |
2.8±0.30 |
25 |
150 |
≥150 |
60.0 |
2.8±0.30 |
25 |
180 |
≥180 |
72.0 |
2.8±0.30 |
25 |
210 |
≥210 |
84.0 |
2.8±0.30 |
20 |
230 |
≥230 |
92.0 |
2.8±0.30 |
20 |
250 |
≥250 |
100 |
2.8±0.30 |
20 |
300 |
≥300 |
120 |
2.8±0.30 |
15 |

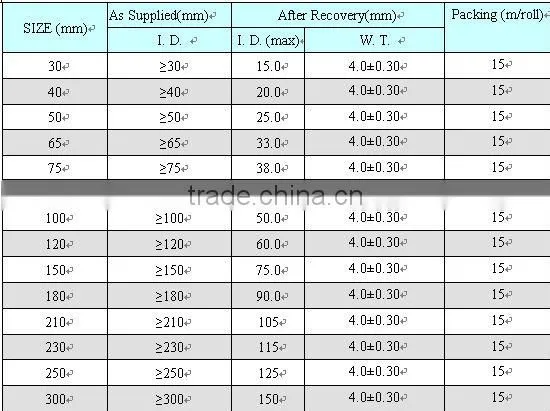

35kv
