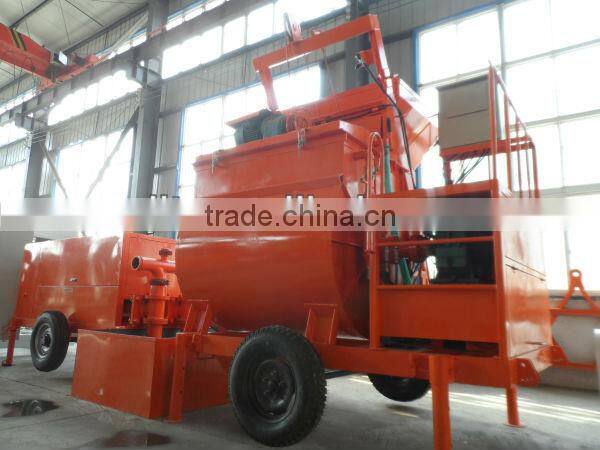

Lightweight Foam Concrete Wall Making Machine(mixer&pump)
- QINGDAO
- T/T Credit Card
You May Like
Product Details
| Condition | New | Type | Other, lightweight foam concrete | |
| Brick Raw Material | Cement | Processing | Brick Production Line | |
| Method | Other, Water curing | Automatic | Yes | |
| Capacity | 30m3/h | Place of Origin | Henan, China | |
| Brand Name | Anjit | Model Number | SYT-30 | |
| Voltage | 380V/50HZ | Power | 30kw | |
| Dimension(L*W*H) | 3100*920*1300mm | Certification | BV | |
| Warranty | 12months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

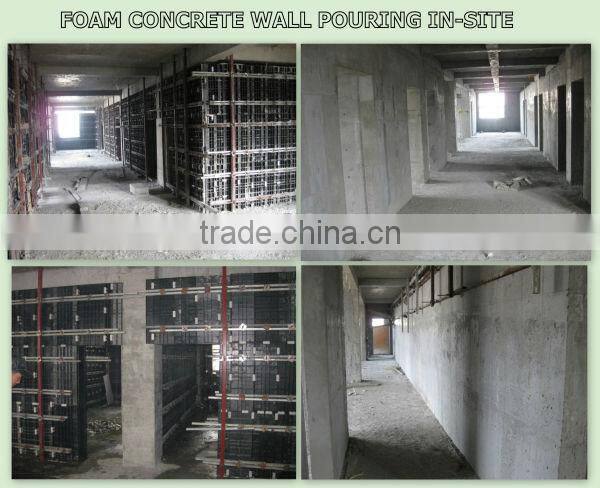

Foam Concrete Wall Pouring Machine in whole set:

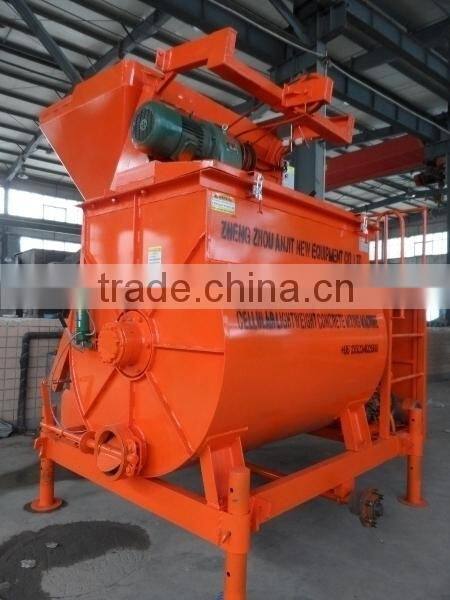

Foam Concrete mixer
Foam generator, mixer hopper, feeder hopper, water pump and control panel are included in the foam concrete machine.
Specification:
Specification of Combined Foam Concrete Mixing Machine | |||
Model | SYT-20 | Mixing motor | 11kw |
Output volume | 1500L | Winding motor | 5.5kw |
Material input volume | 2000L | Water pump motor | 1.1kw |
Capacity | 5-10m3/h(feed by manual) 10-15m3/h (feed by batcher) | Vibrating motor | 0.55kw |
Main shaft revolution | 32r/min | Foam pump | 3kw |
Hopper lifting speed | 22m/min | Air compressor | 5.5kw |
Overall dimension | 2600*2250*2800mm | Max. moved speed | ≤15km/h |
Total weight | 2800kg |
|
|

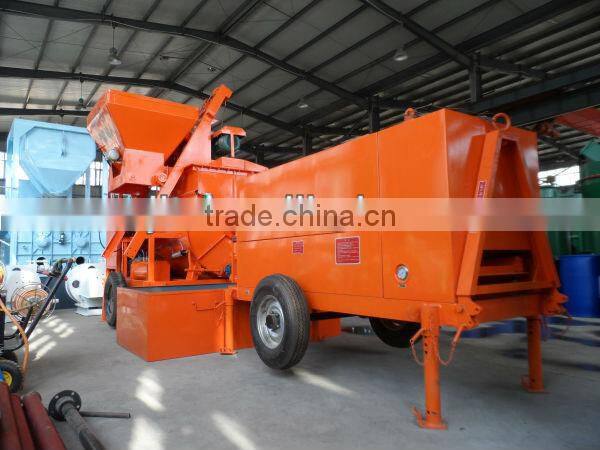

Foam Concrete Hydrulic Pump
A. Features
1. Adopting wear resistant metal, sturdy and durable.
2. Full automatic control system, to adjust the foam concrete density easily.
3. Adopting the famous brand good quality components, reliable quality.
4. Adopting hydraulic two cylinders single conveying way to send the foam concrete to the construction plant on-site, stable flow, small fluctuation.
5. Equipped with travelling wheel, easy moving and position.
6. Equip the remote control handle with the electric cabinet, convenient operation.
Technical Data:
Hydraulic Foam Concrete Conveying Pump | |
SPECIFICATION | |
Capacity | 20 m³/h |
Max. theoretical conveying pressure | 8 Mpa |
Max. theoretical horizontal distance | 500 m |
Max. theoretical vertical distance | 180 m |
Conveying pipe inside diameter | Φ70/Φ64 |
Max. particle size of aggregates | 8 mm |
Pump head quantity | 2 Pcs |
Oil cylinder (material cylinder) quantity | 2 Pcs |
Oil cylinder inside diameter*stroke | Φ80*1000 mm |
Material cylinder inside diameter*stroke | Φ140*1000 mm |
Max. pressure of hydraulic system | 24 Mpa |
Oil pressure box volume | 320L |
Motor power | 30 KW |
Dimension (L*W*H) | 4200*1420*1750 mm |
Weight (whole machine) | 1900 kg |
