Specifications
Material elevatorControl monitor unit
Weight limit device
Fall protection device
Microcomputer speed

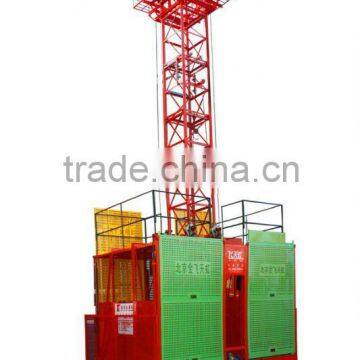

Material elevator
The SS100,SS100/100 material hoist is a verical lifting machinery specialized materials,it’s widely used at building construction, industrial and mining enterprises, multilayer workplace,warehouse,station, ports and so on. It’s convenient, economical, efficient, safe, stable.
This type of material hoist is armed a series of safety protection device,like lifting weight limiter, safe protection device against rope break ,parking device,cushioning device upper and lower height limiter and so on.Especially the safe protection device against rope break is designed by renowned professors in this industry grounded on a comprehensive analysis of the advantages and disadvantages of the current protection device. The maximum braking distance can reach far below 200mm, the standard of DBJ14-015-2002. In actual test, the drop distance reached as low as 70mm, without damaging the track. Thus, our product is very safe and reliable.
This machine is also equiped with complete GPS which automated and simplifized floor-selection and leveling, which reduces difficulty and therange of manipulation, while promotes the accuracy of floor-selection, and thus, it improves the working efficiency, because traditionally, this system was operated by hand or vehicle. This machine is ropeless. instead, it is attached to the wall, and has its own device of set-up and removal (mast and hand winch), easy for dismounting and transportation.
This machinery have two type,one is single cage,other is double cage. Mast section tube of the double cage is seamless steel tube Φ76×4.In the mast section tube of the single cage ,two of them is seamless steel tubeΦ76×4,the other two is Φ51×4.
The seamless steel tube also can be as lead rail for the cage running. It is selected according to the user’s requirements.
| Name |
parameter |
|
| Model |
SS100/100 |
SS100 |
| Height (m) |
50 |
50 |
| Maximum height of lift(m) |
80(Enhanced type can reach 130m) |
80(Enhanced type can reach 130m) |
| Standard height(m) |
24 |
24 |
| Max lift weight(kg) |
1000/1000 |
1000 |
| Rated speed(m/min) |
23.5 |
23.5 |
| Cage demension(m) |
2.8×1.5×1.9 |
2.8×1.5×1.9 |
| Mast section demension(m |
0.8×0.8×1.5 |
0.8×0.8×1.5 |
| Working temperature |
-20~40 |
-20~40 |
| Motor power(kw) |
15 |
7.5 |
| Seamless tube dimeter(mm) |
Φ76×4 |
TWO Φ76×4 |
| Whole machinery weight(24m) |
4350 |
3340 |
| Wall frame price(USD) |
176*4 |
176*4 |
