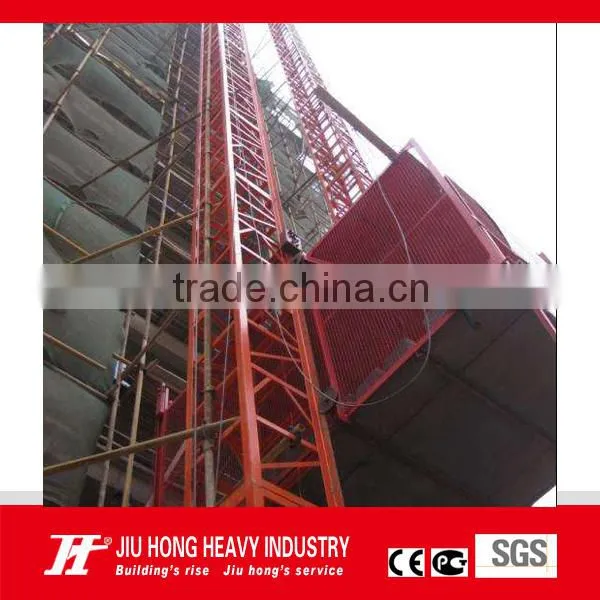

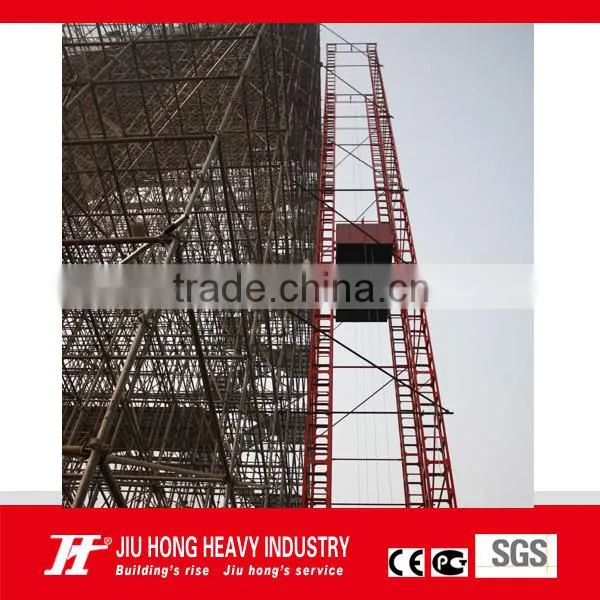

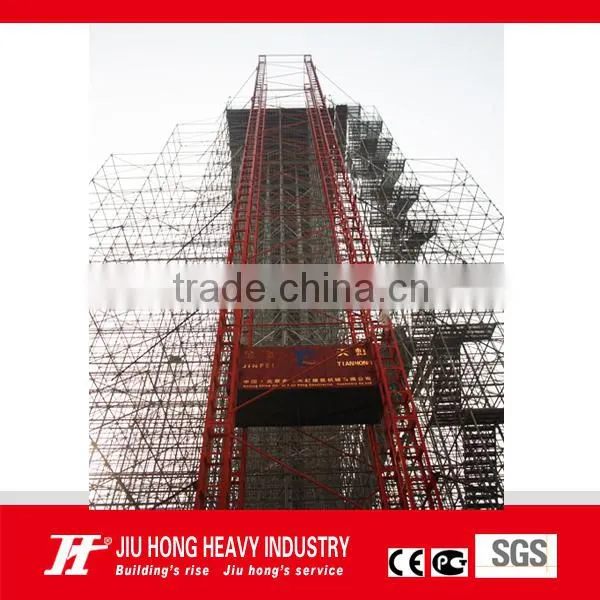

SMZ150-1 Self-propelled Jack Gantry Lift

Specifications

1. construction lifter, jack lift system, jack to lift appliance
2. easy to handle, operate, and maintain

SSE-160 series Self-propelled Jack Gantry Lift of Beijing jiu hong company



1. Equipped with self-lifting system; Self-erection and removal; Height adjusts with the building; Labor-saving and economic.

2. Adopting the attached rod instead of wind rope; improved construction conditions.

3. Two vertical posts unite whenever mounting or dismounting; safe and reliable.

4. Labor saving with manual winch for lifting stage and derrick for mounting standard sections.

5. Adopting rope protection device; the jam boards on both sides of the cage would lock the cage and prevent it from crash once the rope breaks.

6. Stop device is available on request for floor parking.

7. Adopting separate lifting navigation to avoid direct friction between wheels and basket body, thus prolongs the service time.

8. Adopting Overload Limiter to avoid overload accidents.

9. Equipped with a bi-way travel limiter  supporting the use of winch, which can efficiently prevent punch and crash accidents.

10. The hanging basket is completely closed  with protection screen and floor to prevent  material slide and guarantees the personnel.



Iterm	Technical parameter
Install height(m)	24
Max lifting height (m)	60
Rated lifting load(t)	1.5t
Master size (m)	0.6*0.5*3.0
Winch power input (Kw)	11Kw
Lifter cage area(m)	3.3×1.75x2.3
Hoist model	JK1.5  JK2
Lifting speed (m/min)	≈23
Power supply	380v
Safety device	safety falling protection
Work temperature (℃)	-20~40

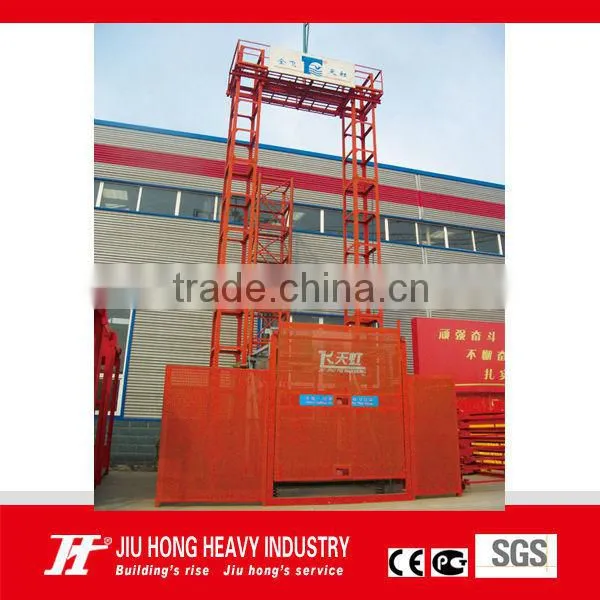

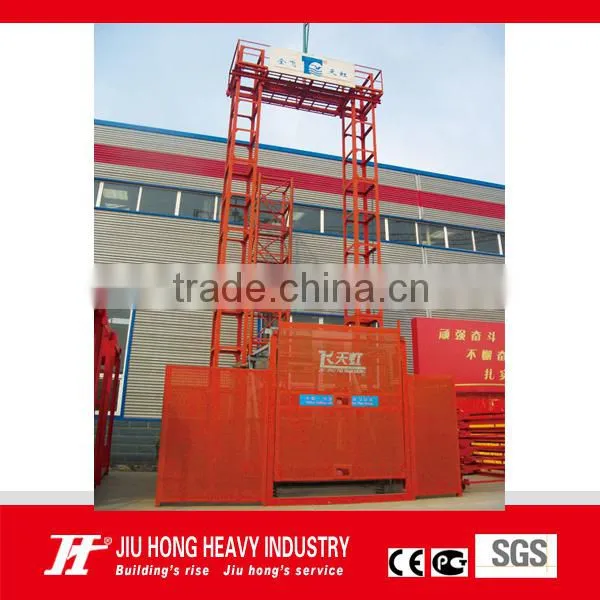

Portal frame of Beijing jiu hong company

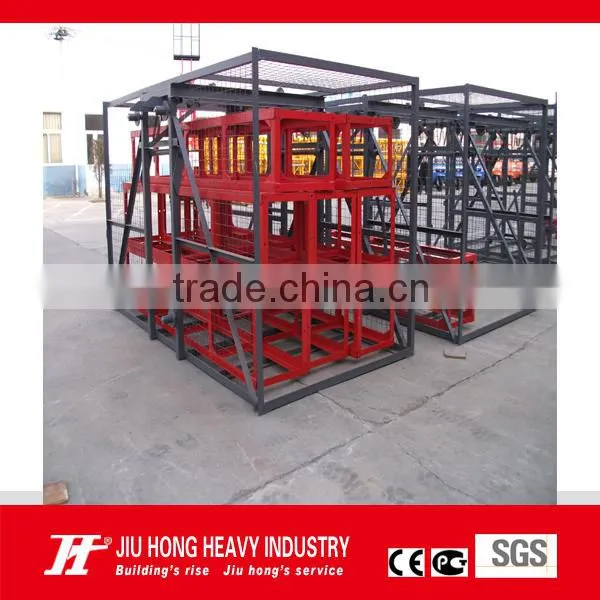

Parts of portal frame

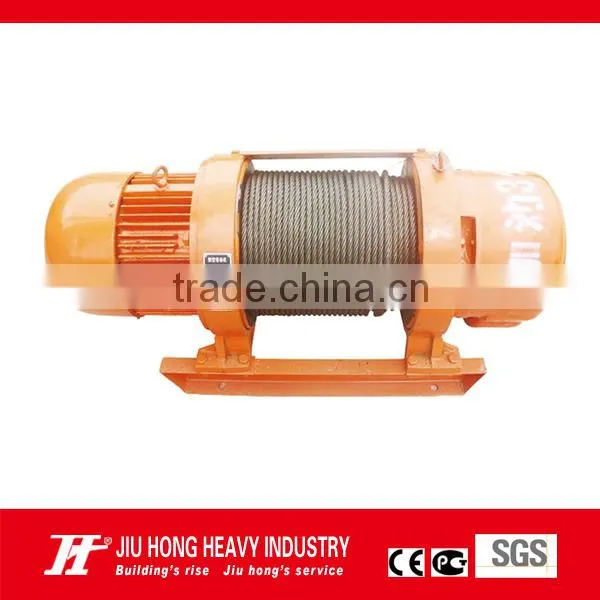

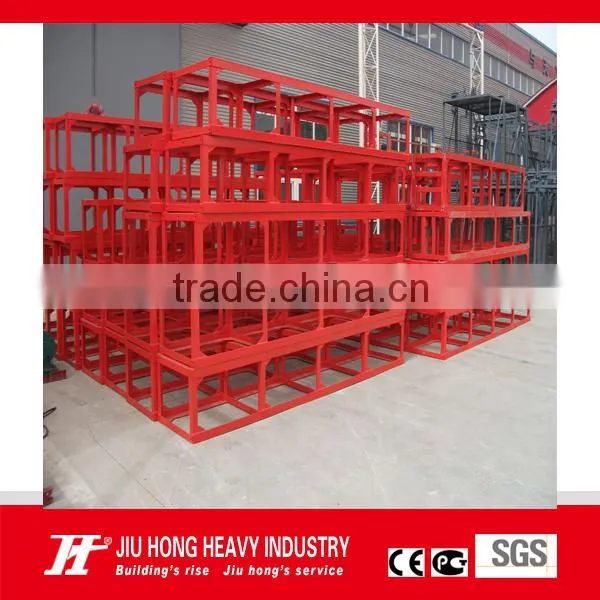

Mast Section  and motor
