External passenger elevator for buildings
- Tianjin
- T/T
You May Like
Product Details
| Place of Origin | Beijing, China | Brand Name | Jinfei Tianhong | |
| Model Number | SC200/200 |
Product Description

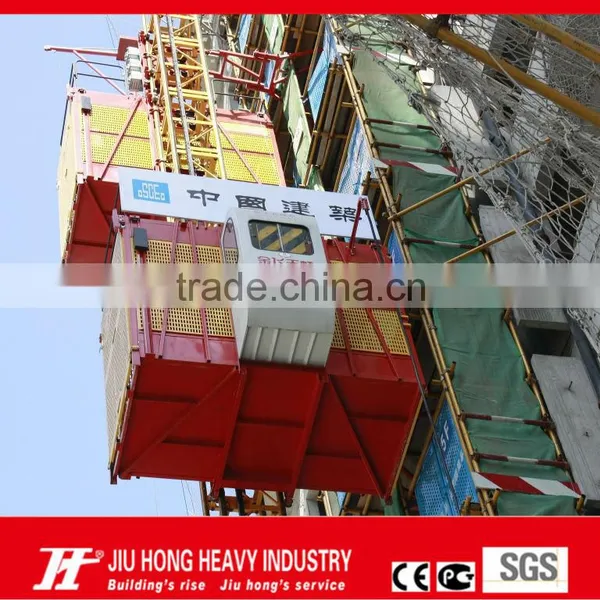

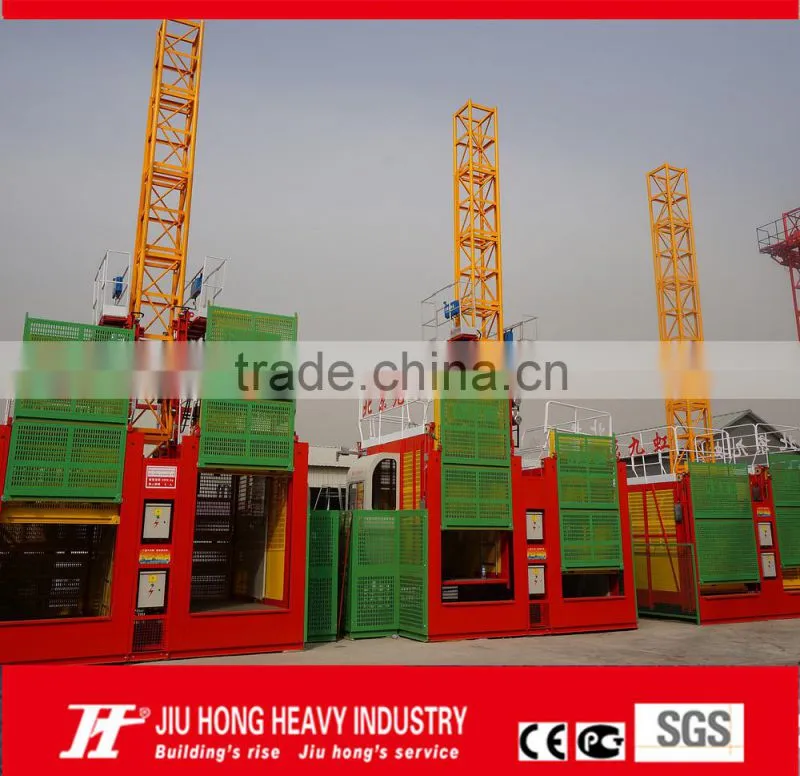

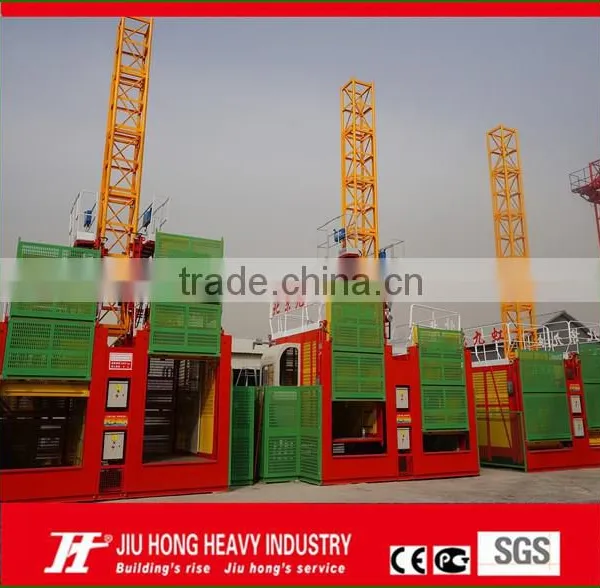

External passenger elevator for buildings
Name: construction passenger elevator
Model: Cage Capacity (ton) :
SC100 elevator (Single cage) 1 T
SC100/100 elevator (Double cage) 1T+1T
SC150 elevator (Single cage) 1.5T
SC150/150 elevator (Double cage) 1.5T+1.5T
SC200 elevator (Single cage) 2T
SC200/200 elevator (Double cage) 2T+ 2T
- Capacity – 1T, 1.5T, 2T, 3T & 4T
- Cage
- Single
- Double
- Cage Dimension
- Standard - 3 X 1.4 X 2.4 Mtrs.
- Customized upto 4.5 x 2.5 x 3.5 Mtrs.
SC200/200 Building passenger elevator adopted computer aided design.
Comparing with traditional building hoists, it is attractive, light, easy to handle, secure, applicable, and popular.
Depending on special needs of regular or irregular sections, the lifting capacity can reach up to 1~2 tons, and the running speed can reach 28~38m/min.
Moreover, VVVF speed regulation and PLC enable 0~68 limitless speed, automatic layer selecting and leveling as required.
SC200/200 Building Hoist is excellent in technical performance, more secure in operating mechanism, and more compact in structure.
Name | Unit | SC100 | SC100/100 | SC200 | SC200/200 |
Rating loading capacity | Kg | 1000 | 2×1000 | 2000 | 2×2000 |
Passenger number | Person | 12 | 2×12 | 16 | 2×16 |
Rating rising rate | M/min | 36 | 36 | 36 | 36 |
Max. promoting height | M | 200 | 200 | 200 | 200 |
Motor power | KW | 2×11 | 2×2×11 | 3×11 | 2×3×11 |
Voltage | V/ HZ | 380/50 | 380/50 | 380/50 | 380/50 |
Cage size | M | 3*1.3*2.5 | 3*1.3*2.5 | 3*1.5*2.5 | 3*1.5*2.5 |
650 mast section weight | Kg | 128 | 150 | 128 | 150 |
650 mast section length (painted) | M | 0.65×0.65 ×1.508 | 0.65×0.65 ×1.508 | 0.65×0.65 ×1.508 | 0.65×0.65 ×1.508 |
Steeve rating rising weight | Kg | 200 | 200 | 200 | 200 |
Containers for Shipment | pcs | 1*40’HQ | 1*40’HQ | 1*40’HQ | 1*40’HQ |
We can make 30m,50m,60m,70m,72m to 90m.
Main parts as below:

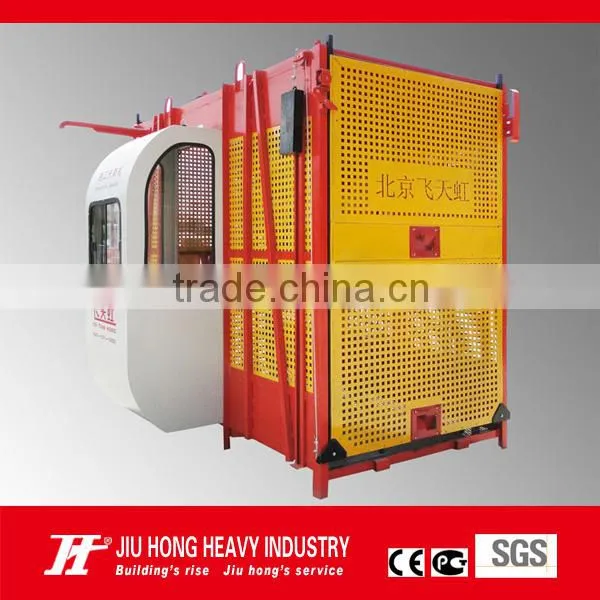

A: Cage with wheelhouse

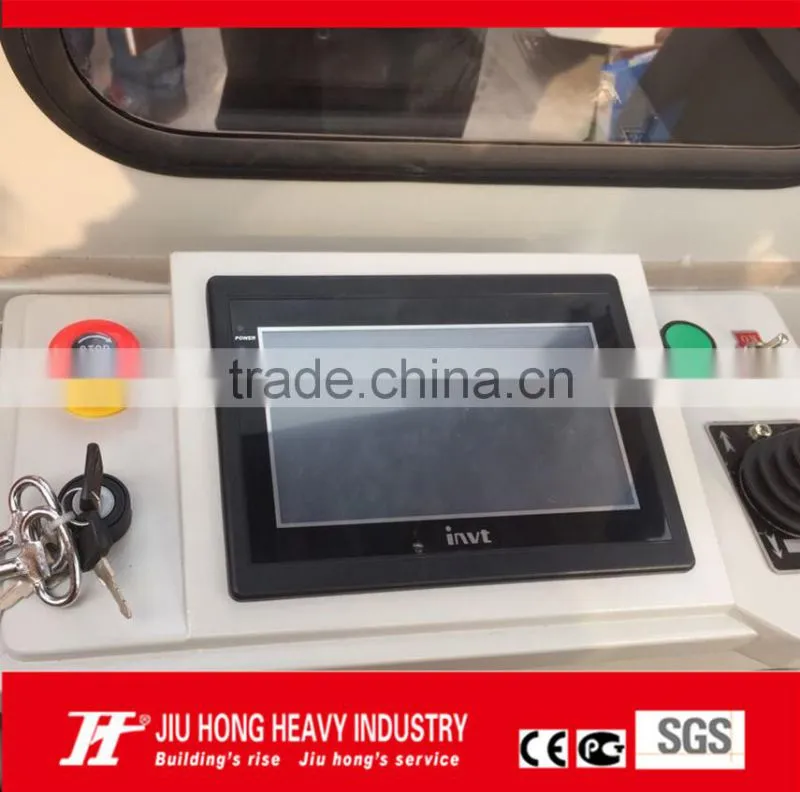

B:The information display system :
If the elevator don't work,you can see the rouble of elevator through the system.

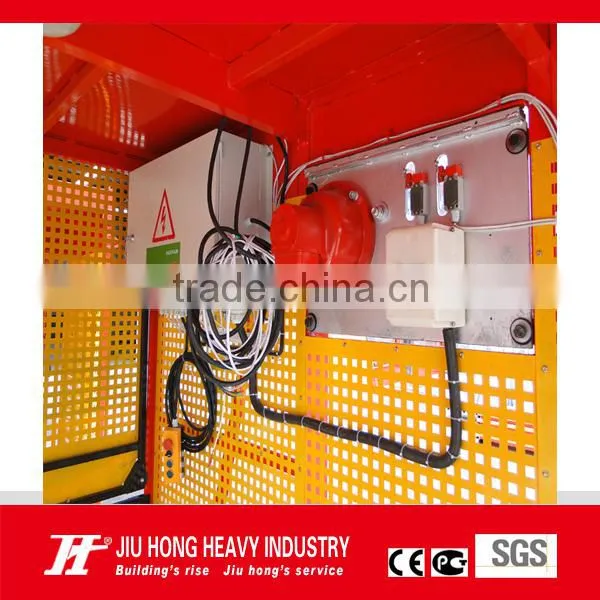

C:safety device in cage: against the elevator fall.

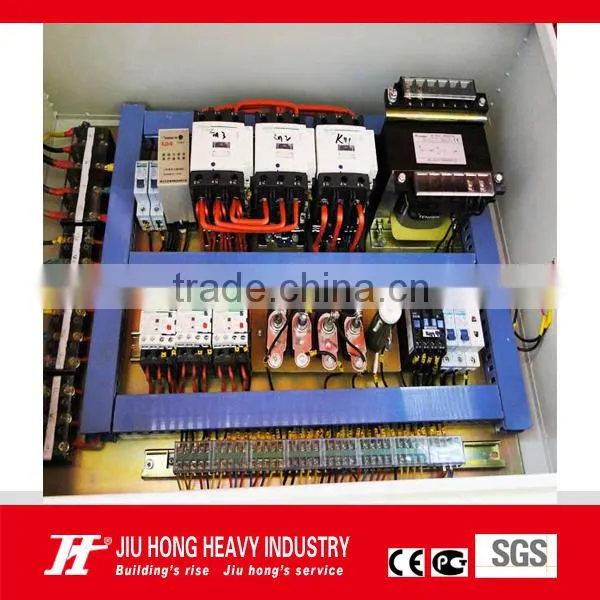

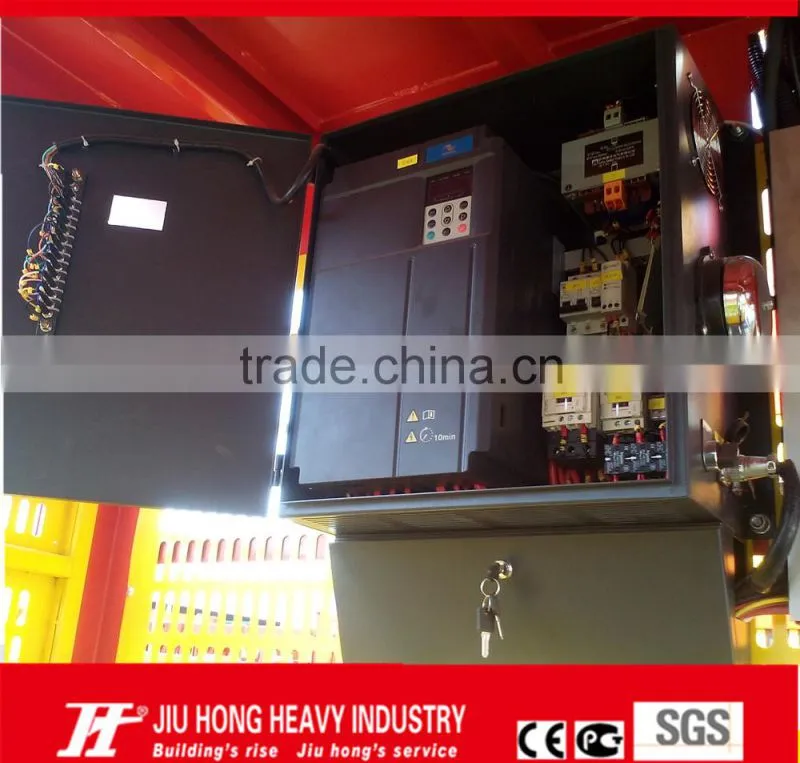

Breaker of high quality

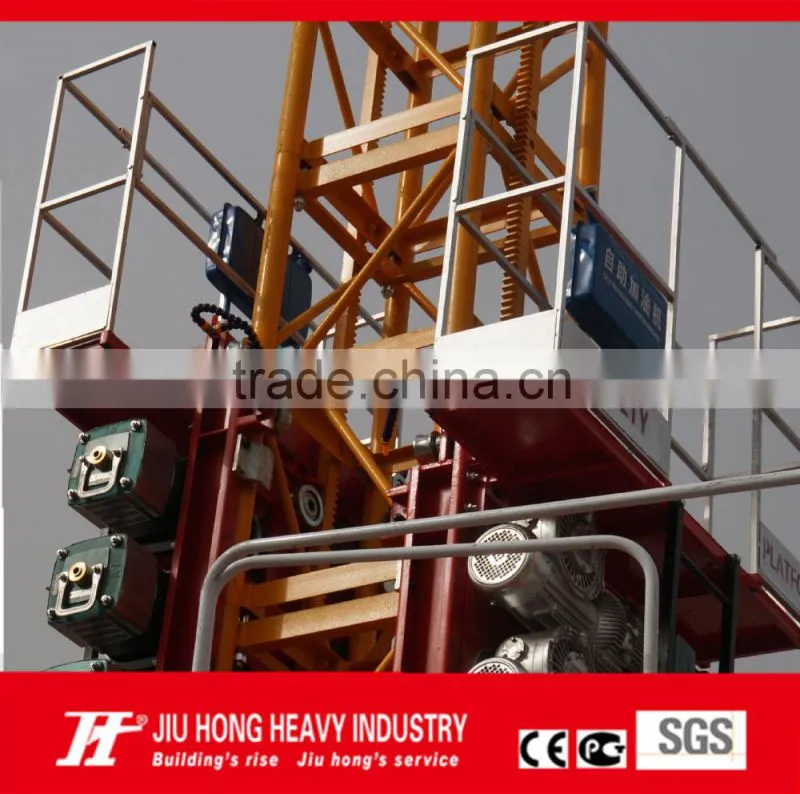

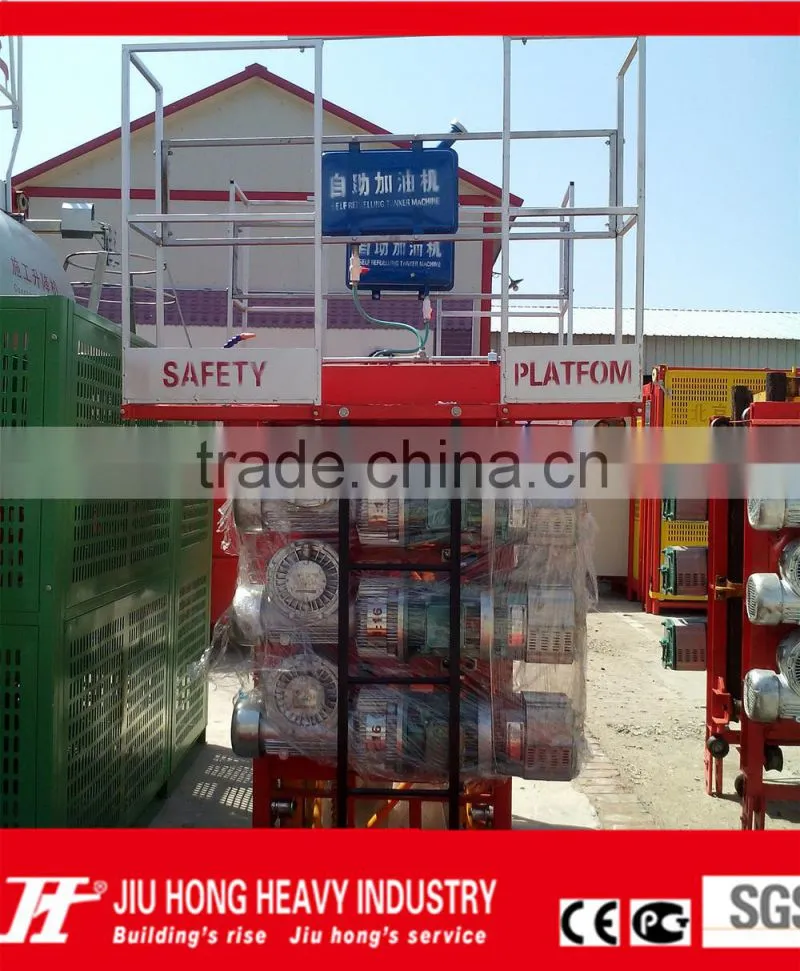

Wonderful power motor with tanker:

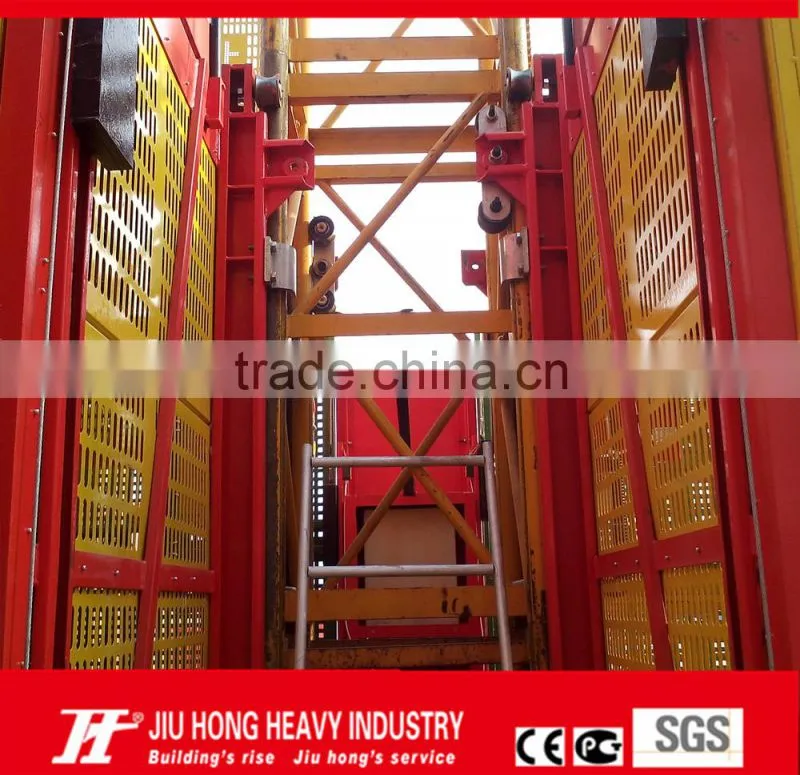

Mast section with good material
Certification of CE,GOST,CCC and so on
IF YOU WANT KNOW MORE INFORMATION:
my skype: bjfth4
whatsapp: +86 18610345964
Mobile No.: +86 18610345964
