Construction Elevators,Construction Lifter

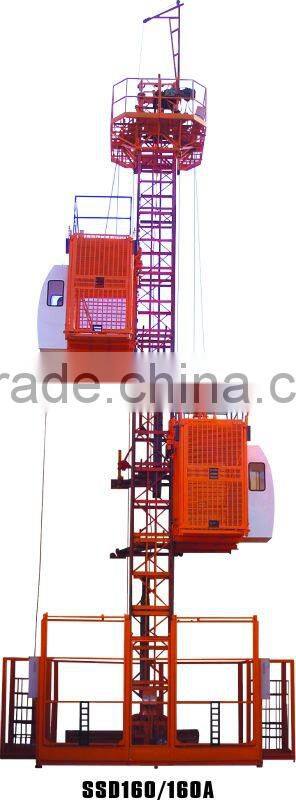

Name: Construction Elevators,Construction Lifter
Brand: MINELINE
SKU: 137878607
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Henan, China

Brand Name:

MINELINE

Model Number:

SSD160/160A

Zhengzhou Jinhe Machinery Manufacture Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Henan, China

Brand Name MINELINE

Model Number SSD160/160A

Usage Other, Construction Elevator

Specifications

1.SSD160/160A :Rated capacity:1600kg Lifting Speed:0~35m/min
2.Motor Power:11kw*2
3.Maximum Lifting height:150m

Construction Elevator,Construction lifters

Product Feature

Construction lift is mainly used to transport people or goods or both to multistoried building.

Our lifts are for both for people and cargo. It includes two kinds: SSD160/160A and SC200/200

Compare with the general lift, the advantage of SSD160/160A are as follow:

Convenient to both assemble and disassemble: self-lifting to assemble or disassemble; when do

the second-time rising, the other side cage will work normally, so that construction will not be delayed.

Steady when go up and down: it is as steady as indoor elevator.
Safe Operation: four rate-limiting to avoid cage falling; have progressive anti-falling safe device;

eight electric interlock to stop the cage dashing top.

Energy-saving: it can save electricity 100-150 thousand KWH with same elevating speed and same weight.

Technical Specification of SSD160/160A

Item	Specification	Item	Specification
Rated Load(KG)	1600/1600	People Allowed	2*20
Elevating Speed(m/min)	0-35	Maximum height(m)	150
Inside Size of Cage (mm)	300013002100	Standard Knot Size(mm)	9169161508
Motor Power(kw)	11*2	Counter-weight (KG)	1600*2
Cage Weight (KG)	750/750	Bottom Cage Size (mm)	5720*3405
Small Lift Weight (KG)	150	Total Height of Standard Knot (mm)	9000
Working Temperature(°C)	-20-40	Total Weight (Standard Height:50m) (KG)	18000
