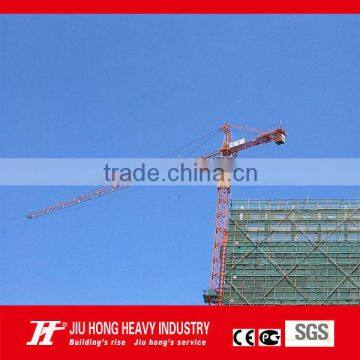

China Factory High Quality Construction Building small tower crane QTZ5610 Manufacturers

FOB Price

US$ 65,000 - 75,000 / Set

1 Set(Min. Order)

Port tianjin Qingdao
Payment TermsT/T L/C D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Application	construction, Construction
Rated Loading Capacity	6t	Rated Lifting Moment	56, 630 KN.M
Max. Lifting Load	6t, 6T	Max. Lifting Height	141
Place of Origin	Beijing, China	Brand Name	JIuhong
Model Number	QTZ5610	Certification	CE
Warranty	one year	After-sales Service Provided	Engineers available to service machinery overseas
Span	56M

Product Description

Specifications

6t Tower Crane
1.With Hydraulic Self-raising Mechanism,
2.Variable-frequency Slewing Mechanism,
3.Safet

Construction Building Tower Crane Technical Parameters

Model	QTZ63B(5610)	QTZ63B(5013)
Jib Length (M)	56	50
Free Height (M)	41	41
Max. Possible Height (M)	161	161
Max. Load (T)	6	6
Tip Load (T)	1.0	1.3
Wall-attached Device for Max Height (sets)	6	6
Main Material (mm)	Standard Mast Section 135×135×10 (Square Steel Tube) Reinforcing Mast Section 135×135×12 (Square Steel Tube)	Standard Mast Section 135×135×10 (Square Steel Tube) Reinforcing Mast Section 135×135×12 (Square Steel Tube)
Mast Section Dimension (m)	1.835×1.835 ×2.5	1.835×1.835 ×2.5
Hoisting Speed (a=2) (m/min)	80/40/10	80/40/10
Min. Stable Falling Speed (m/min)	5	5
Slewing Speed (r/min)	0-0.62	0-0.62
Radius-changing Speed (m/min)	40/20	40/20
Jacking-up Speed (m/min)	0.6	0.6
Total Motor Power (kw)	55.2	55.2
Power Supply	380V/50HZ	380V/50HZ
Weight of Independent Structure (T)	36.80	36.80
Counterweight (T)	14.85	14.85
Base Form	Embedded Type (Outrigger Stationary)	Embedded Type (Outrigger Stationary)
Number of Containers Needed for Shipment (Free Height)	6 * 40HC containers	6 * 40HC containers

Outstanding Features:

The tower crane is a combination of advanced technologies of the present day. It is equipped with a hydraulic self-raising mechanism and a frequency-converting slewing mechanism.

The electric control system of the tower crane adopts the advanced “PLC + frequency converter” control mode of the present day,

which has realized the stepless speed regulation and greatly improves the reliability, maneuverability and stability of the control s

ystem and the work efficiency of the tower crane.

The tower crane is equipped with all kinds of reliable safety devices, such as hoisting height limiter, slewing range limiter and

multifunctional limiter to control the load moment, hoisting capacity and trolley traveling range. Its PLC (Programmable Logic

Controller) unit can diagnose the cause of breakdowns. Its Safety Monitoring System (also known as Black Box) displays

thedata of working radiuses, heights, moments and weights.
