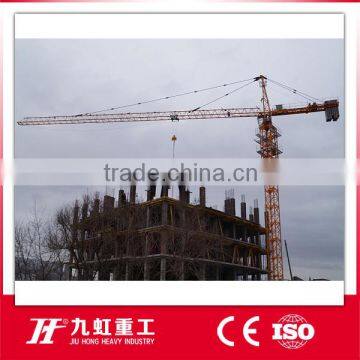

China Factory Construction Machinery QTZ63 Tower Crane
A. Product Introduction of JIUHONG Brand QTZ Series tower crane:
QTZ series of tower cranes has a horizontal jib frame, a jib-trolley radius - changing mechanism and a hydraulic self-raising mechanism. It is original in design, reliable in operation and satisfactory in shape. Equipped with all necessary safety devices, these cranes show a good speed-control capacity, satisfactory operating stability and high work efficiency. They can be widely used for the construction of high - rise hotels, residential buildings, high-rise industrial buildings, large-span factory buildings and tower-like buildings like all chimneys.
B. Advantages of JIUHONG Brand QTZ Series tower crane:
1. QTZ Series tower crane is one of the key products of JIUHONG company, which have competitive price and excellent quality, suitable for all kinds of construction project and can work under all kinds of working conditions.
2. It has high working speed, good speed- adjusting performance, steady operation and high efficiency.
3. The crane has complete set of safety devices.
4. The machine has scientific layout and beautiful appearance.
C. Parameters of JIUHONG Brand QTZ Series tower crane:
| Model | Unit | QTZ5610 tower crane | QTZ5210 tower crane | QTZ5010 tower crane | QTZ4808 tower crane | |
| Max Working Radius (m) | m | 56 | 52 | 50 | 48 | |
| Hoisting height | m | 40 | 40 | 30 | 30 | |
| Max lifting load | T | 6 | 5 | 5 | 4 | |
| Max working scope | m | 3-56 | 3-52 | 3-50 | 3-48 | |
| Slewing speed | M/min | 0.63 | 0.63 | 0.63 | 0.62 | |
| hoisting speed | a=2 | R/min | 79.4/37.7/8.5 | 79.4/37.7/8.5 | 60/30/8.2 | 60/29/8.2 |
| a =4 | 39.7/19.9/4.3 | 39.7/19.9/4.3 | 30/15/4.1 | 30/15/4.1 | ||
| Luffing speed | M/min | 48/24 | 40/22 | 45/23.5 | 38/26 | |
| Total motor power | KW | 39.6 | 39.6 | 32.6 | 25.1 | |
| Main Material Specs | mm | 135*135*12 | 160*160*14 | 160*160*14 | 140*140*12 | |
| square steel tube | angle steel | angle steel | angle steel | |||
| Mast section Dimension | mm | 1800*1800*2800 | 1600*1600*2500 | 1600*1600*2500 | 1500*1500*2200 | |
| Counter weight | t | 15.6 | 11.5 | 9 | 8.1 | |
| Working temperature | ℃ | -20~+40 | -20~+40 | -20~+40 | -20~+40 | |
D. Product pictures

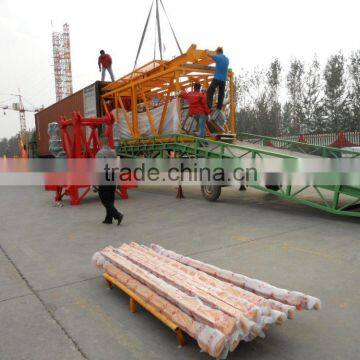

Delivery
The lifting mechanism

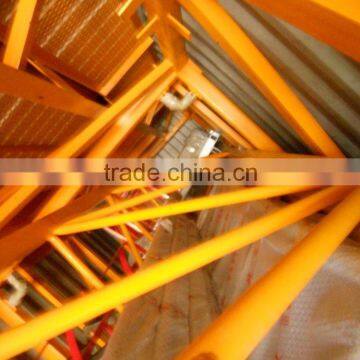

The mast section

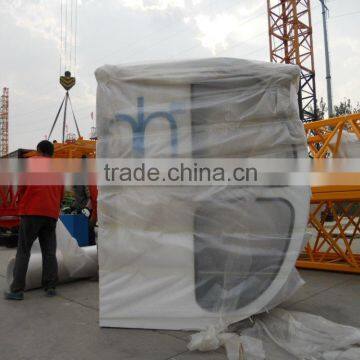

The operation room

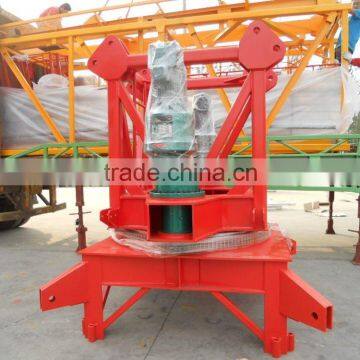

The slewing mechanism
EXHIBITION
Factory Picture
ServiceS
1: Before sales serviceS
a: provide you with expert sugestion for choosing the most suitable tower crane.
b: answer your question patiently and professionally.
2: In the process of sale serviceS
a: notify you the latest progress of your order
b: in time delivery, shipmment
c: send you necessary documents for custom-clearance timely
3: After-sale serviceS
a: provide you professional installation guide.
b: any question or promblem come out, we will be on line for help you at any time.
c: any feedback or comment or suggestion is very precious for us.
Welcome your inquiry if you are interested in our Tower Crane. I will do my best to help you!
