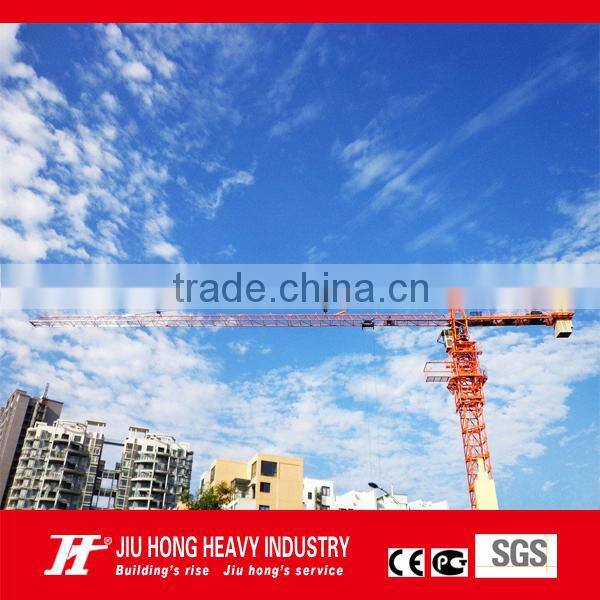

New TC5013 Dismantle Tower Crane, 5t Tower Crane

Name: New TC5013 Dismantle Tower Crane, 5t Tower Crane
Brand: JIuhong
Availability: InStock

FOB Price

US$ 39,000 - 75,000 / Set

1 Set(Min. Order)

Port Tianjin Or Qingdao
Payment TermsT/T L/C D/P D/A Money Gram Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Application	construction, Construction
Rated Loading Capacity	6t	Rated Lifting Moment	56, 630 KN.M
Max. Lifting Load	6t, 6T	Max. Lifting Height	141
Span	56m, 56M	Place of Origin	Beijing, China
Brand Name	JIuhong	Model Number	QTZ5610
Certification	CE	Warranty	one year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Construction Building Tower Crane

Technical Parameters

Model	QTZ63B(5610)	QTZ63B(5013)
Jib Length (M)	56	50
Free Height (M)	41	41
Max. Possible Height (M)	161	161
Max. Load (T)	6	6
Tip Load (T)	1.0	1.3
Wall-attached Device for Max Height (sets)	6	6
Main Material (mm)	Standard Mast Section 135×135×10 (Square Steel Tube) Reinforcing Mast Section 135×135×12 (Square Steel Tube)	Standard Mast Section 135×135×10 (Square Steel Tube) Reinforcing Mast Section 135×135×12 (Square Steel Tube)

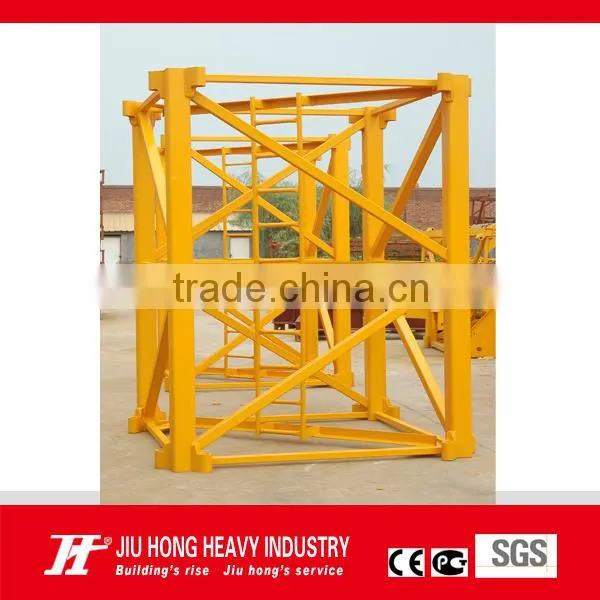

Mast Section Dimension (m)	1.835×1.835 ×2.5	1.835×1.835 ×2.5
Hoisting Speed (a=2) (m/min)	80/40/10	80/40/10
Min. Stable Falling Speed (m/min)	5	5
Slewing Speed (r/min)	0-0.62	0-0.62
Radius-changing Speed (m/min)	40/20	40/20
Jacking-up Speed (m/min)	0.6	0.6
Total Motor Power (kw)	55.2	55.2
Power Supply	380V/50HZ	380V/50HZ
Weight of Independent Structure (T)	36.80	36.80
Counterweight (T)	14.85	14.85
Base Form	Embedded Type (Outrigger Stationary)	Embedded Type (Outrigger Stationary)

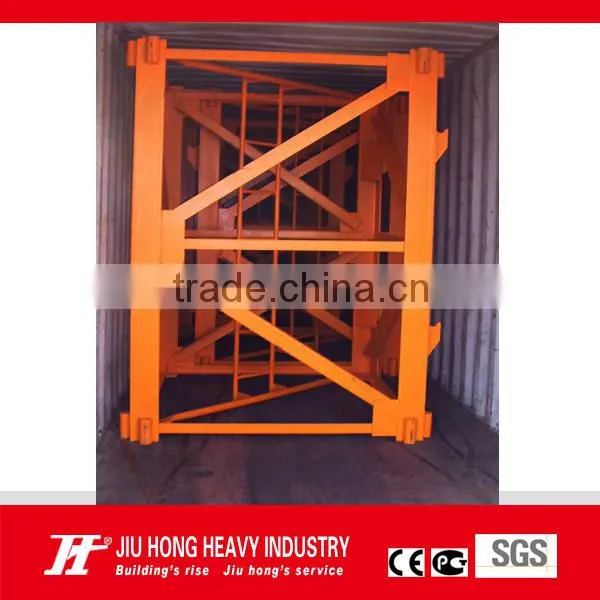

Number of Containers Needed for Shipment (Free Height)	6 * 40HC containers	6 * 40HC containers

Our Services

Outstanding Features: Innner Climbing 6t Tower Crane

The tower crane is a combination of advanced technologies of the present day. It is equipped with a hydraulic self-raising mechanism and a frequency-converting slewing mechanism.

The electric control system of the tower crane adopts the advanced “PLC + frequency converter” control mode of the present day,

which has realized the stepless speed regulation and greatly improves the reliability, maneuverability and stability of the control s

ystem and the work efficiency of the tower crane.

The tower crane is equipped with all kinds of reliable safety devices, such as hoisting height limiter, slewing range limiter and

multifunctional limiter to control the load moment, hoisting capacity and trolley traveling range. Its PLC (Programmable Logic

Controller) unit can diagnose the cause of breakdowns. Its Safety Monitoring System (also known as Black Box) displays

thedata of working radiuses, heights, moments and weights.
