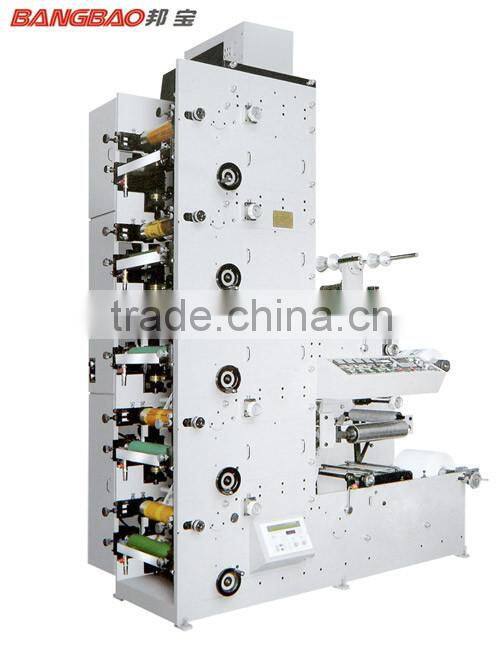

automatic label 4 colour flexo printing machine
A. CHARACTERISTIC
1, Ceramic anilox cylinder are adopted for ink transferring.
2, The unwinding and rewinding units are designed with magnetic powder brakes and clutchs for tension control, and flexo machine equipped with Mitsubishi auto tension controller.
3, Each printing unit is adopted 360°printing plate-adjustment.
4, All printing units are equipped with a group of hot air dryer.(UV dryer is for option)
5, The machine has one die-cutting station, and it can make printing and die cutting finished in one process.
6, The ink rollers will be automatically separated from the printing roller, and it will keep rotating at a low speed, thus preventing ink from drying.
7, The main motor is equipped with an imported variable frequency stepless speed govermor.This guarantees the stable performance of flexo press.
8, The machine can finish material-feeding, printing, vanishing, drying, laminating, die-cutting and rewinding at one stroke. It is an ideal machine for printing trade invoice and top-grade adhesive label.
B. MAIN TECHNICAL SPECIFICATION
Model |
TXR-320 |
TXR-450 |
Printing speed |
60m/min |
60m/min |
Printing color |
5colours |
5colours |
Max. Web Width |
320mm |
320mm |
Max .printing width |
310mm |
310mm |
Max. unwinder/rewinder diameter |
600mm |
600mm |
Printing length |
175-355mm |
175-355mm |
Thickness of flexo plate |
1.7mm or 1.14mm |
1.7mm or 1.14mm |
Precision of chromatography |
±0.1mm |
±0.1mm |
Dimensions |
2.0mX1.1m X2.6 m |
2.6mX1.1m X2.6 m |
Machine weight |
About 2200kgs |
About 3350kgs |
C. OPTION:
1, Web guiding system
2, UV dryer
3, add one color
4, one die-cutting station
5, Cold stamping unit
OTHER RELATED PRODUCTS IN OUR FACTORY,AND WELCOME TO CLICK.
Printed Samples
Our service:
Our machine quality is guaranteed for one year.
We will offer spare parts for you which is enough for one year running.
And we can also send the technician to customer's factory to help installation at the cost of buyer.
And other than the above, we also supply the 24 hours online service.
We will offer the most professional suggestion to help you start and expand your business!
We assure you of our best service at all times.
Company view

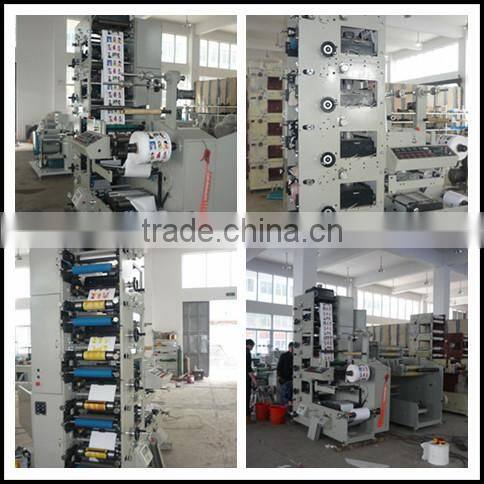

Machine pictures
1. ARE YOU MANUFACTURE FACTORY OR TRADING COMPANY ?
we are one of the leading manufacturer of automatic water-based flexo printing machine,automatic self-adhesive label die-cutting machine,automatic cutting machine,reel-type water-solube adhesive laminating machine in China.
2. WHERE IS YOUR FACTORY LOCATION?
WE ARE LOCATE IN NO.6,YONGFENG ROAD,ZHENGLOU INDUSTRIAL ZONE, PINGYANG,ZHEJIANG PROVINCE, CHINA. OUR NEAREST HIGH WAY EXIT IS PINGYANG, OUR NEAREST TRAIN STATION IS RUIAN STATION, OUR NEAREST AIRPORT IS WENZHOU AIRPORT.
