Product Description:
Shanghai Dingbo Machinery Co., LTD specializes in manufacturing, developing and selling stone jaw crusher of various models.With the communication and cooperation among international mechanical technologies ,advanced German machine and our domestic creation and invention, Dingbo Jaw crusher has been improved greatly in its perfect quality service and high efficient energy-consumption reduction.

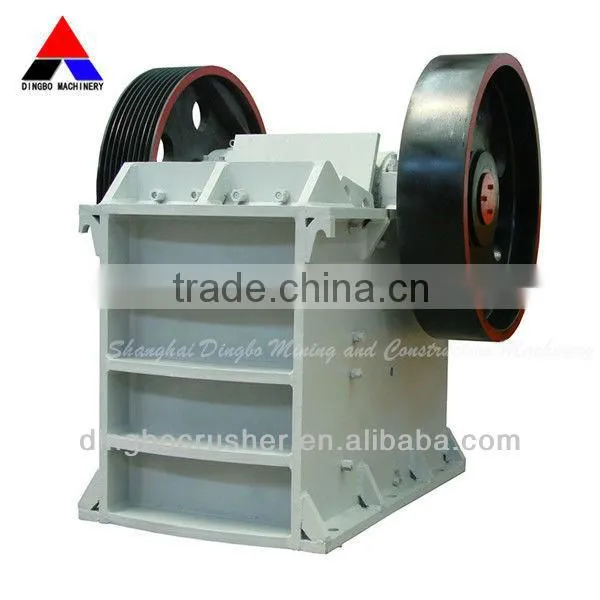

Dingbo Jaw Crusher PE Series
Jaw crusher is one of the most popular stone-crushing equipments in the world. It is ideally suitable for primary and secondary crushing processing machine selection. The highest anti-pressure strength of crushed material is 320MPA.
Working principle
Jaw crusher’s working type is of moving and squeezing. The working principle is as follows: jaw crusher uses motor as its power. Through the motor’s wheels, the eccentric shaft is driven by the triangle belt and slot wheel to make the movable jaw plate move by a regulated track. Therefore, the material in the crushing cavity composed of fixed jaw plate, movable jaw plate and side-lee board can be discharged through the discharging opening.
Features and Advantages:
1. The application of world-class manufacturing processes and high-tech materials.
2. Integrated steel structures are used for the base of bearing;

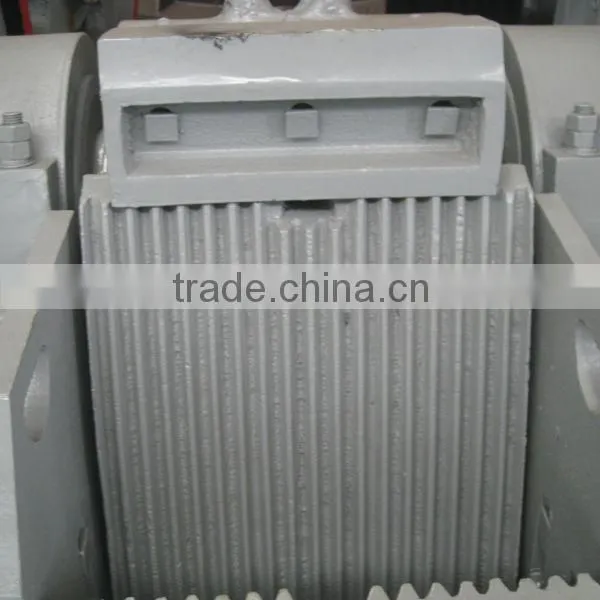

3. The broken cavity using "V"-shaped structure, so that the actual width of feed is same as nominal width;
Advanced CNC Control System:

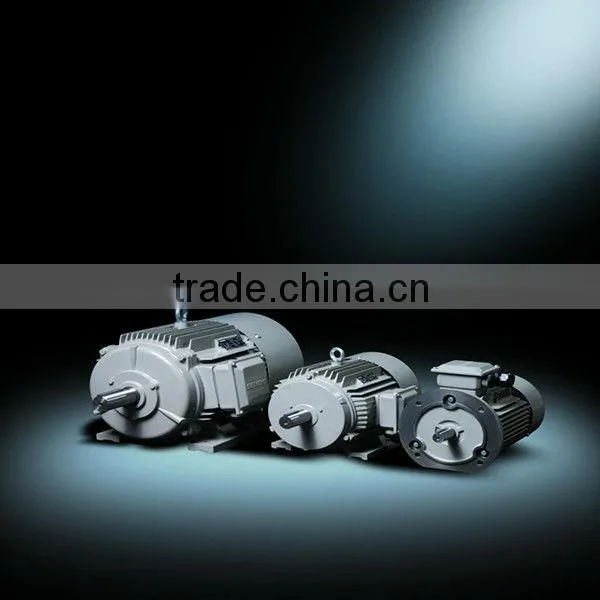

Trustworthy Machine Motor Brand-German Siemens:
The reason you chooes us:
Chose happens because of quality, then price, we can give you both
Additionally, we can also offer professional products inquiry, products knowledge train(for agents), smooth goods delivery, excellent customer solution proposals.
Our service formula: good quality+good price+good service=customer’s trust.
The model:
Model |
Feeding Opening Size (mm) |
Max Feeding Size (mm) |
Adjustment Range of Discharge Openin (mm) |
Capacity (t/h) |
Electric Motor(kw) |
Overall Dimension(mm) |
Weight (t) |
|||
PE250×400 |
400×250 |
210 |
20-80 |
5-20 |
15 |
1450×1315×1296 |
2.8 |
|||
PE400×600 |
600×400 |
350 |
40-100 |
15-65 |
30 |
1700×1732×1653 |
6.2 |
|||
PE500×750 |
750×500 |
425 |
50-100 |
45-110 |
55 |
2035×1921×2000 |
11 |
|||
PE600×900 |
900×600 |
500 |
65-140 |
90-180 |
55-75 |
2290×2206×2370 |
16 |
|||
PE750×1060 |
1060×750 |
630 |
80-160 |
110-320 |
110 |
2655×2302×3110 |
29 |
|||
PE900×1200 |
900×1200 |
750 |
220-500 |
200-400 |
132 |
3380×2870×3330 |
54.5 |
|||
PE1000×1200 |
1200×1000 |
850 |
195-260 |
220-450 |
160 |
3480×3876×3330 |
58 |
|||
PE1200×1500 |
1500×1200 |
1020 |
150-300 |
400-800 |
180-220 |
4200×3750×3820 |
100.9 |
|||
