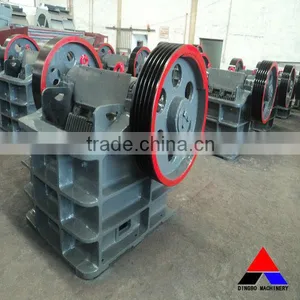

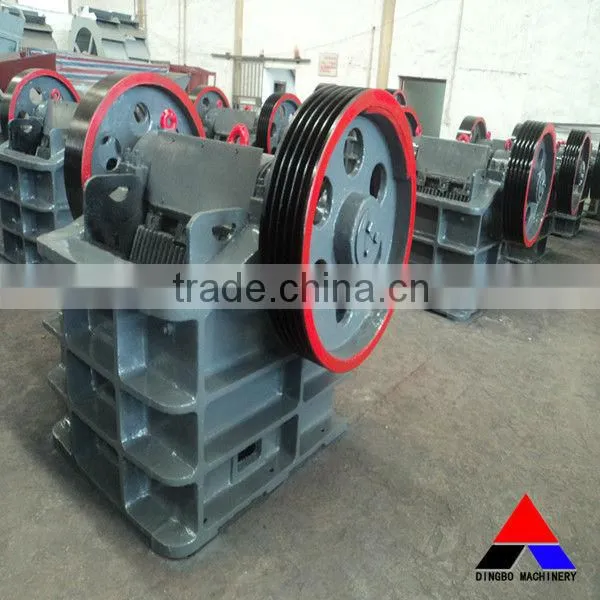

used small jaw crusher for sale
Shanghai Dingbo Mining and Construction Machinery Co., LTD specializes in manufacturing, developing and selling stone jaw crusher of various models.With the communication and cooperation among international mechanical technologies ,advanced German machine and our domestic creation and invention, DBM Jaw crusher has been improved greatly in its perfect quality service and high efficient energy-consumption reduction.
Dingbo Jaw Crusher ,PE Series Crusher,JC Crusher,Mini Jaw crusher,PE Crusher
Hardstone Jaw crusher Product Description:
Jaw crusher is one of the most popular stone-crushing equipments in the world. It is ideally suitable for primary and secondary crushing processing machine selection. The highest anti-pressure strength of crushed material is 320MPA.
Based on many years' experience and technology development, Dingbo jaw crusher series are of 8 different types, which can meet most of the crushing requirements in primary and secondary crushing. Flexible discharge opening setting of jaw crusher allows perfect match with relative equipments. Dingbo jaw crushing machine is easy to install, operate and maintain. As each feedback, our experts will make continuous improvements on our products to meet customers' different needs. Primary Jaw Crusher is widely used in fields of mining, metallurgy, construction, smelting, hydropower and chemical industries etc.
Our Main jaw crushing machines include: PE-250×400 small jaw crusher(mini jaw crusher ), PE400×600 small crusher, PE500×750, PE600×900, PE750×1060, PE900×1200, PE1000×1200, PE1200×1500 etc.
Working principle:

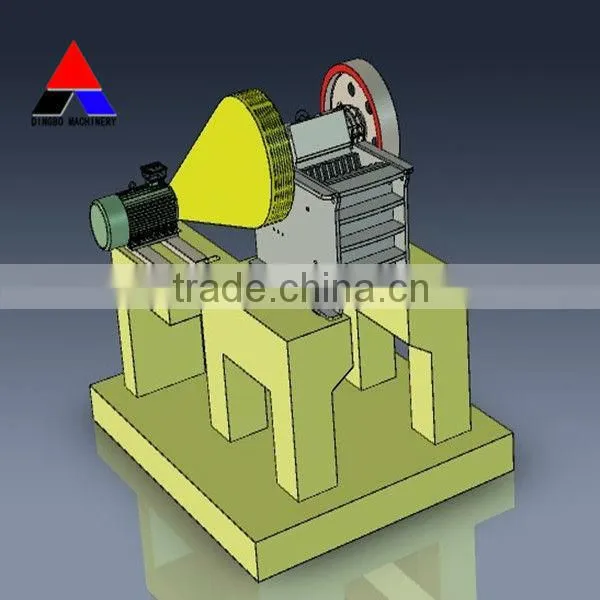

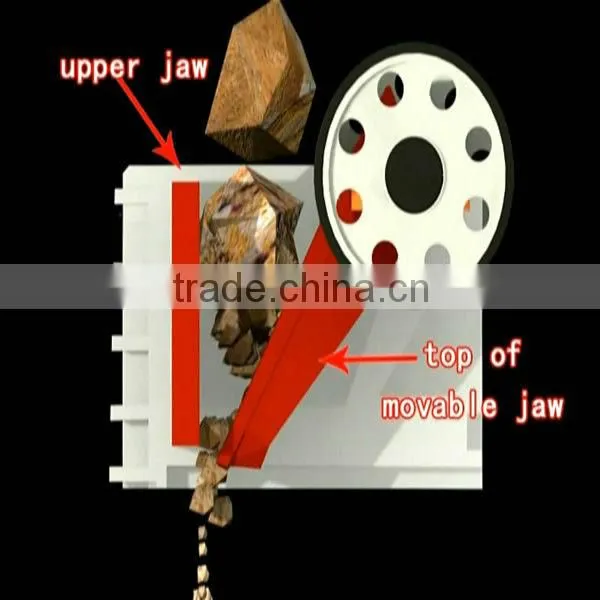

Jaw crusher’s working type is of moving and squeezing. The working principle is as follows: jaw crusher uses motor as its power. Through the motor’s wheels, the eccentric shaft is driven by the triangle belt and slot wheel to make the movable jaw plate move by a regulated track. Therefore, the material in the crushing cavity composed of fixed jaw plate, movable jaw plate and side-lee board can be discharged through the discharging opening.

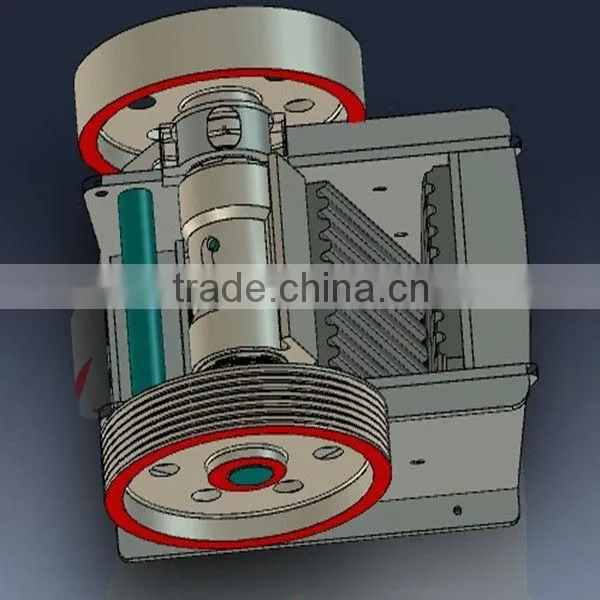

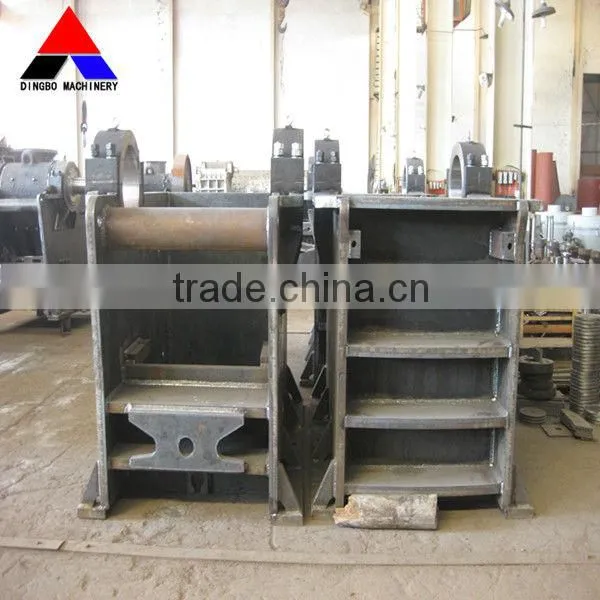

Jaw crusher mainly consists of frame, eccentric shaft, jaw plate, connecting bar, adjustment part and spring. The movable jaw goes upward and downward through eccentric shaft when belt and belt wheel are driven by the motor. The angle between movable jaw and bracket turns big when the movable jaw goes upward, which pushes the movable jaw plate to come close to fixed jaw plate. At the same time, materials are crushed with the movement of the movable jaw.
When the movable jaw goes downward, the angle between movable jaw and bracket turns small. Under the force of spring and connecting bars, the movable jaw plate leaves fixed jaw plate, and the crushed materials with qualified size are discharged from the crushing cavity. With the continuous rotation of the motor, the movable jaw crushers and discharges materials, in turn, realizes the goal of mass production.
Hardstone Jaw Crusher Technical Specifications:
Model |
Feeding Opening Size (mm) |
Max Feeding Size (mm) |
Adjustment Range of Discharge Openin (mm) |
Capacity (t/h) |
Electric Motor(kw) |
Overall Dimension(mm) |
Weight (t) |
|||
PE250×400 |
400×250 |
210 |
20-80 |
5-20 |
15 |
1450×1315×1296 |
2.8 |
|||
PE400×600 |
600×400 |
350 |
40-100 |
15-65 |
30 |
1700×1732×1653 |
6.2 |
|||
PE500×750 |
750×500 |
425 |
50-100 |
45-110 |
55 |
2035×1921×2000 |
11 |
|||
PE600×900 |
900×600 |
500 |
65-140 |
90-180 |
55-75 |
2290×2206×2370 |
16 |
|||
PE750×1060 |
1060×750 |
630 |
80-160 |
110-320 |
110 |
2655×2302×3110 |
29 |
|||
PE900×1200 |
900×1200 |
750 |
220-500 |
200-400 |
132 |
3380×2870×3330 |
54.5 |
|||
PE1000×1200 |
1200×1000 |
850 |
195-260 |
220-450 |
160 |
3480×3876×3330 |
58 |
|||
PE1200×1500 |
1500×1200 |
1020 |
150-300 |
400-800 |
180-220 |
4200×3750×3820 |
100.9 |
|||

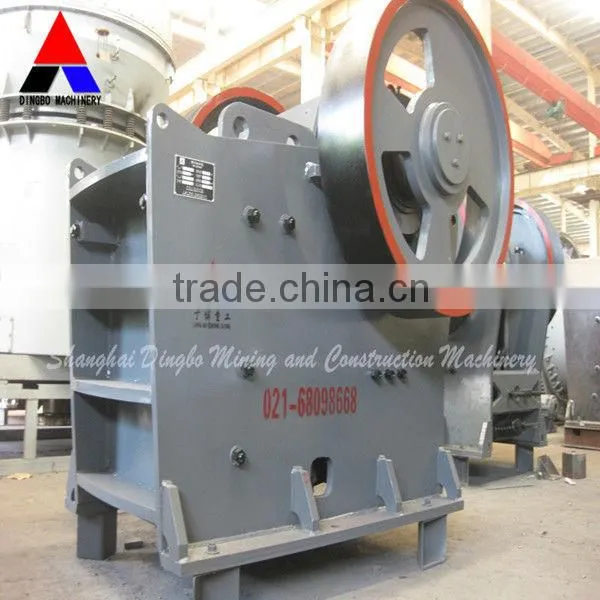

PE500X750 JAW CRUSHER SHOWROOM
