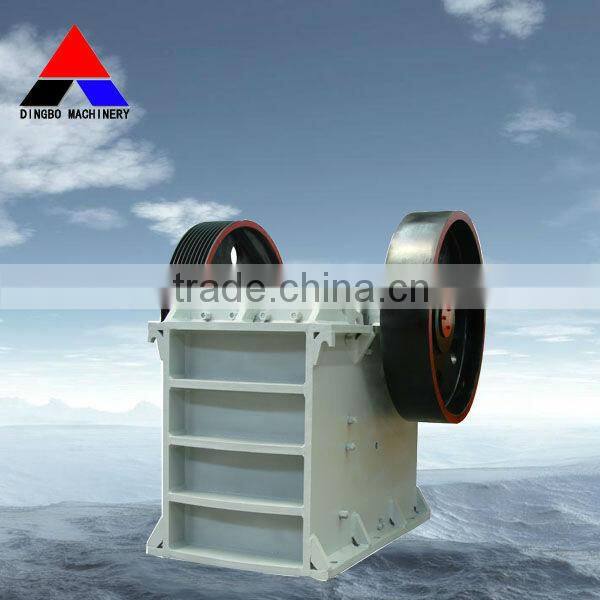

Tungsten Ore Crusher
Shanghai Dingbo Machinery Company is a high-technology enterprise of Shanghai city. It is a professional manufacturer of mining crushers and industrial grinding mills, located in beautiful Pudong New District,. The company features advanced CAD and computer simulation test system, which ensures the quality of design, development, manufacturing and after-sale service. The company has formed a complete production-chain that takes crushers and mills as the main products and vibrating screen, vibrating feeder, etc. as supplementary products.
Dingbo Crusher:
Dingbo stone crusher is used to break down and reduce the size of material(stone). Breaking stones into smaller/more particles through primary and secondary crushing can use jaw crusher, cone crusher, impact crusher, new fine crusher, roll crusher etc.
Working Principle:

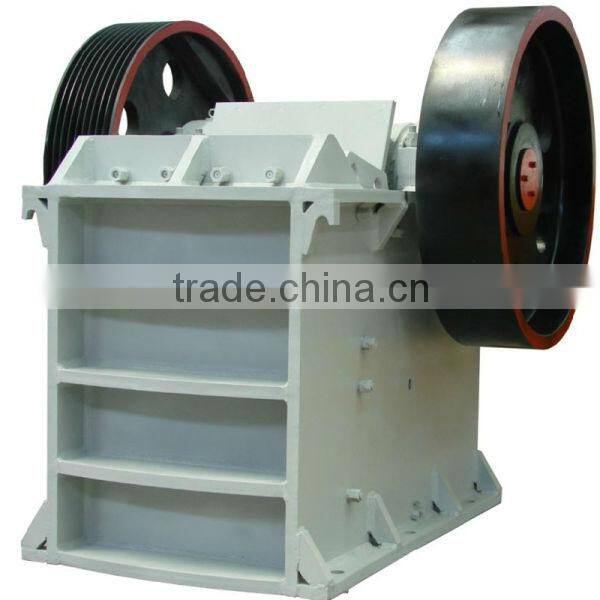

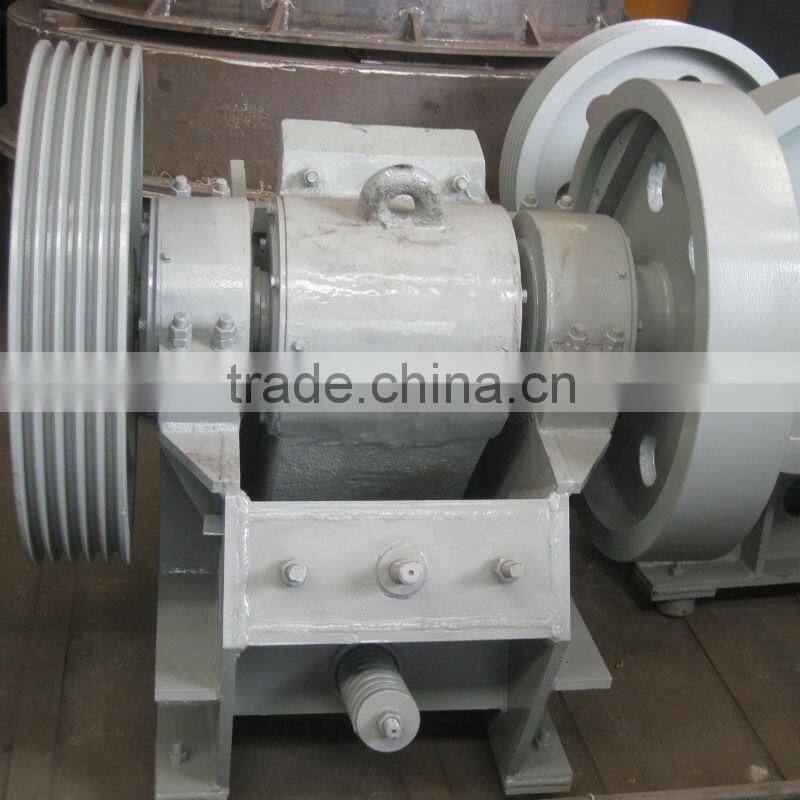

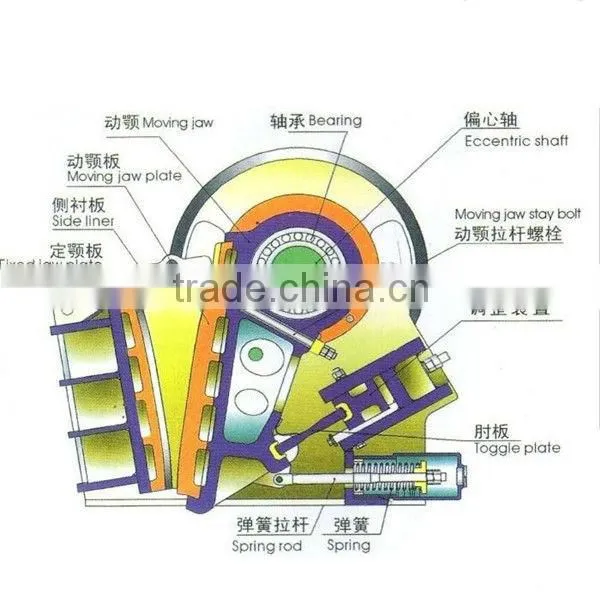

Jaw crusher mainly consists of frame, eccentric shaft, jaw plate, connecting bar, adjustment part and spring. The movable jaw goes upward and downward through eccentric shaft when belt and belt wheel are driven by the motor. The angle between movable jaw and bracket turns big when the movable jaw goes upward, which pushes the movable jaw plate to come close to fixed jaw plate. At the same time, materials are crushed with the movement of the movable jaw.
When the movable jaw goes downward, the angle between movable jaw and bracket turns small. Under the force of spring and connecting bars, the movable jaw plate leaves fixed jaw plate, and the crushed materials with qualified size are discharged from the crushing cavity. With the continuous rotation of the motor, the movable jaw crushers and discharges materials, in turn, realizes the goal of mass production.
Advantages and Features:
1. The application of world-class manufacturing processes and high-tech materials.
2. Integrated steel structures are used for the base of bearing;
3. The broken cavity using "V"-shaped structure, so that the actual width of feed is same as nominal width;
4. The broken cavity is deep and without dead zone, increased capacity and output feed;
5. Lubrication system is safe and reliable, convenient of replace parts, easy to maintenance;
6. The outlet employs pad-style adjustment devices, convenient and reliable, and increase the flexibility of the equipment;
7. Low noise, less dust;
Technical Data:
Model |
Feeding Opening Size (mm) |
Max Feeding Size (mm) |
Adjustment Range of Discharge Openin (mm) |
Capacity (t/h) |
Electric Motor(kw) |
Overall Dimension(mm) |
Weight (t) |
|||
PE250×400 |
400×250 |
210 |
20-80 |
5-20 |
15 |
1450×1315×1296 |
2.8 |
|||
PE400×600 |
600×400 |
350 |
40-100 |
15-65 |
30 |
1700×1732×1653 |
6.2 |
|||
PE500×750 |
750×500 |
425 |
50-100 |
45-110 |
55 |
2035×1921×2000 |
11 |
|||
PE600×900 |
900×600 |
500 |
65-140 |
90-180 |
55-75 |
2290×2206×2370 |
16 |
|||
PE750×1060 |
1060×750 |
630 |
80-160 |
110-320 |
110 |
2655×2302×3110 |
29 |
|||
PE900×1200 |
900×1200 |
750 |
220-500 |
200-400 |
132 |
3380×2870×3330 |
54.5 |
|||
PE1000×1200 |
1200×1000 |
850 |
195-260 |
220-450 |
160 |
3480×3876×3330 |
58 |
|||
PE1200×1500 |
1500×1200 |
1020 |
150-300 |
400-800 |
180-220 |
4200×3750×3820 |
100.9 |
|||
Welcome to contact with us!
Trust your judgments and look forward to your selection, I wish our cooperation a pleasant one!
