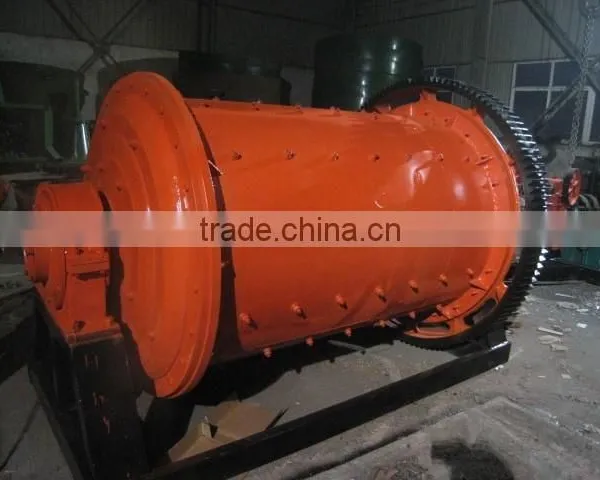

Help CenterBall Mill for Iron Oxide Red, Iron Oxide Red Processing Plant
Related Products
-
Glass Ceramics Ball Mill From Professional ManufacturerUS$ 10,000 - 100,000MOQ: 1 Set -
Forged Steel Balls for Ball Mill,small Ball Mill,ball Mill BallsUS$ 10,000 - 100,000MOQ: 1 Set
-
Ball Mill Construction,ball Mill Working,ball Mill for GlassUS$ 10,000 - 100,000MOQ: 1 Set
-
Rubber Fine Grinder,fine Powder Grinder,powder GrinderUS$ 10,000 - 100,000MOQ: 1 Set
-
Small Fine Grinder,fine Rubber Powder Grinder,fine Grinder MillUS$ 10,000 - 100,000MOQ: 1 Set
New type ore grinding ball mill hotsale
Product Description
1 Ball mill is an efficient toll for grinding many materials into fine power. The ball mill is used to grind many kinds of mine and other material, or to select the mine.
2 It is widely used in building material, chemical industry, etc. there are two ways of grinding: the dry process and the wet process.
3 It can divided into tabular type and flowing type according to different forms of discharging material.
Ball Mill Application
a) Minerals: limestone, calcite, barite, dolomite, potassium feldspar, marble, talcum, gypsum, kaoline, medical stone, rock phosphate, etc.
b) Metallurgy materials: manganese ore, iron ore, etc.
c) Chemical materials: active carbon, carbon black, etc.
Working Principle
1. The ball mill, a horizontal type and tubular running device, has two warehouses. This machine is grid type and its outside rens along gear.
2. The material enters spirally and evenly the first warehouse of the milling machine along the input material hollow axis by input material device. In this warehouse, there is a ladder scale board or ripple scale board.
3. When the barrel body rotates and then produces centrifugal force, at this time, the steel ball is carried to some height and falls to grind and strike the materials.
4. After being grinded coarsely in the first warehouse, the material then enter into the second warehouse for regrinding with the steel ball and scale board.
5. In the end, the power is discharged by output material board and the end products are competed.
Main Technical Parameter
| Model | Max.Feeding Size(mm) | Output Size(t/h) | Ball Load (t) | Rotary Speed (r/min) | Motor Power (kw) | Capacity (t/h) | Weight(t) |
| 900*1800 | ≤15 | 0.075-0.89 | 1.9 | 37 | 15 | 0.5-2 | 3.4 |
| 900*2100 | ≤15 | 0.075-0.4 | 2.3 | 37 | 18.5 | 0.4-2 | 3.9 |
| 1200*2000 | ≤25 | 0.075-0.4 | 3.85 | 35 | 30 | 1.1-2.5 | 7.78 |
| 1200*2400 | ≤25 | 0.075-0.4 | 4.6 | 35 | 30 | 1.3-3.2 | 8.65 |
| 1200*2800 | ≤25 | 0.075-0.4 | 5.4 | 35 | 37 | 1.5-3.7 | 10.02 |
| 1200*4500 | ≤25 | 0.075-0.4 | 8.6 | 35 | 45 | 2.7-6.79 | 14 |
| 1500*3000 | ≤25 | 0.047-0.4 | 9 | 29 | 75 | 3.3-8.2 | 14.122 |
| 1500*3500 | ≤25 | 0.047-0.4 | 10.5 | 29 | 75 | 3.3-8.5 | 15.636 |
| 1500*4500 | ≤25 | 0.047-0.4 | 13.5 | 29 | 90 | 4.5-12 | 20 |
| 1500*5700 | ≤25 | 0.047-0.4 | 17 | 29 | 110 | 2.6-14 | 25 |
| 1830*3000 | ≤25 | 0.047-0.4 | 13.5 | 24 | 135 | 4-15 | 28 |
| 1830*4500 | ≤25 | 0.047-0.4 | 20 | 24 | 155 | 4-19 | 32 |
| 1830*7000 | ≤25 | 0.047-0.4 | 31.5 | 24 | 210 | 6.22 | 37.5 |
| 2100*3000 | ≤25 | 0.075-0.4 | 18 | 22 | 210 | 6.4-28 | 40.79 |
| 2100*3600 | ≤25 | 0.047-0.4 | 21.5 | 22 | 210 | 7.6-28 | 43.454 |
| 2200*3600 | ≤25 | 0.047-0.4 | 25 | 20.7 | 245 | 5.2-32 | 44 |
| 2200*7000 | ≤25 | 0.047-0.4 | 46 | 20.7 | 380 | 15-38 | 54 |
| 2400*3600 | ≤25 | 0.047-0.4 | 28 | 19 | 320 | 8-60 | 47 |
| 2400*4500 | ≤25 | 0.047-0.4 | 35 | 19 | 380 | 8.5-60 | 65 |
| 2700*4000 | ≤25 | 0.047-0.4 | 40 | 20.7 | 400 | 12-80 | 94 |
| 2700*4500 | ≤25 | 0.047-0.4 | 48 | 20.7 | 430 | 12-90 | 102 |
| 3200*4500 | ≤25 | 0.047-0.4 | 65 | 18 | 800 | According to the process conditions | 137 |
ABOUT US
SHANGHAI Dingbo MACHINERY CO., LTD is one high-tech enterprise, which involves R&D, production, sales and service as well. In the past 20 years, we devote to producing mining equipments, sand making machines and industrial grinding mills, offering expressway, rail way and water conservancy projects the solution of making high grade sand and matched equipments.

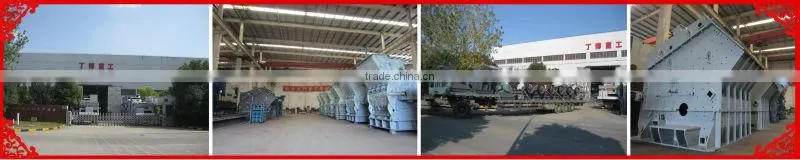

Dingbo factory
Dingbo attend Exhibition in Urumuqi
Certificate
