forged steel balls for ball mill,small ball mill,ball mill balls
- 100 Set / Sets per Month
- Shanghai port
- T/T L/C D/P D/A Credit Card PayPal
- ball mill construction,ball mill working,ball mill for glass
- rubber fine grinder,fine powder grinder,powder grinder
- small fine grinder,fine rubber powder grinder,fine grinder mill
- concrete grinder price,mill grinder price,grinder machine
- Mining stone ball mill,silicate ball mill from professional manufacturer
- Gold ore ball mill
Product Details
Condition: | New | Type: | Ball Mill | Motor Type: | Other, Siemens |
Power(W): | 800 | Capacity(t/h): | 10-15 | Place of Origin: | China |
Brand Name: | Dingbo Machinery | Model Number: | 900*1800 | Dimension(L*W*H): | 13900*4000*6200 |
Weight: | 3.4t | Certification: | CE& ISO | Warranty: | 1 year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
forged steel balls for ball mill,small ball mill,ball mill ballsPacking:The products will be processed to be rustproof and moisture proof before delivery. The small parts are packed into wooden crates-the big parts are wrapped by plastic sheeting
Product Description
forged steel balls for ball mill,small ball mill,ball mill balls
Cone ball mill is the material to be broken, and then to smash the key equipment.
The ball mill is widely used in cement, silicate products, new building materials, refractory materials, fertilizer, black and non-ferrous metal processing and glass ceramics production industry, a variety of ores and other grind-able materials dry or wet grinding.
Cone Ball Mill Working principle
This machine is a horizontal cylindrical rotating device, outer gear, the two positions, lattice-type ball mill.
Material from the feed device into the compound empty-axis spiral evenly into the mill first warehouse, the warehouse there are ladder liner or corrugated liner, built with different specifications steel ball, rotating cylinder produces centrifugal force to the ball a certain height after the fall, have severe impact on the material and abrasive.
Material in the first position, the coarse grinding, single-compartment plate into the second warehouse, the warehouse lined with flat lining, the steel ball, the material further grinding.
Powder discharged through the discharge grate plate.
Horizontal Grinding Ball Mill Specification:
Model |
Max Feeding Size (mm)
| Output Size (mm) | Ball Load (t) | Rotary Speed (r/min) | Capacity (t/h) | Power (kw) | Weight (t) |
900×1800 | ≤15 | 0.075-0.89 | 1.9 | 37 | 0.5-2 | 15 | 3.4 |
900×2100 | ≤15 | 0.075-0.4 | 2.3 | 37 | 0.4-2 | 18.5 | 3.9 |
1200×2000 | ≤25 | 0.075-0.4 | 3.85 | 35 | 1.1-2.5 | 30 | 7.78 |
1200×2400 | ≤25 | 0.075-0.4 | 4.6 | 35 | 1.3-3.2 | 30 | 8.65 |
1200×2800 | ≤25 | 0.075-0.4 | 5.4 | 35 | 1.5-3.7 | 37 | 10.02 |
1200×4500 | ≤25 | 0.075-0.4 | 8.6 | 35 | 2.7-6.79 | 45 | 14 |
1500×3000 | ≤25 | 0.047-0.4 | 9 | 29 | 3.3-8.2 | 75 | 14.122 |
1500×4500 | ≤25 | 0.047-0.4 | 10.5 | 29 | 3.3-8.5 | 75 | 15.636 |
1500×5700 | ≤25 | 0.047-0.4 | 13.5 | 29 | 4.5-12 | 90 | 20 |

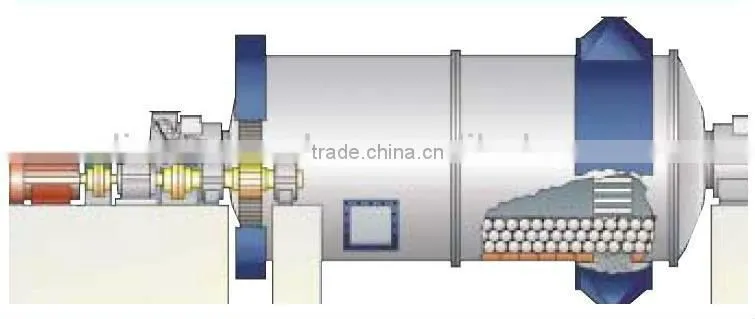

Horizontal Grinding Ball Mill Working principle:
This grinding ball mill is horizontal type and tubular running device, has two warehouses. This machine is grid type and its outside runs along gear.
The material enters spirally and evenly the first warehouse of the milling machine along the input material hollow axis by input material device.
In this warehouse , there is a ladder scaleboard or ripple scaleboard, and different specification steel balls are installed on the scaleboard, when the barrel body rotates and then produces centrifugal force ,at this time , the steel ball is carried to some height and falls to make the material grinding and striking.
After grinded coarsely in the first warehouse, the material then enters into the second warehouse for regrinding with the steel ball and scaleboard. In the end, the powder is discharged by output material board and the end products are completed.

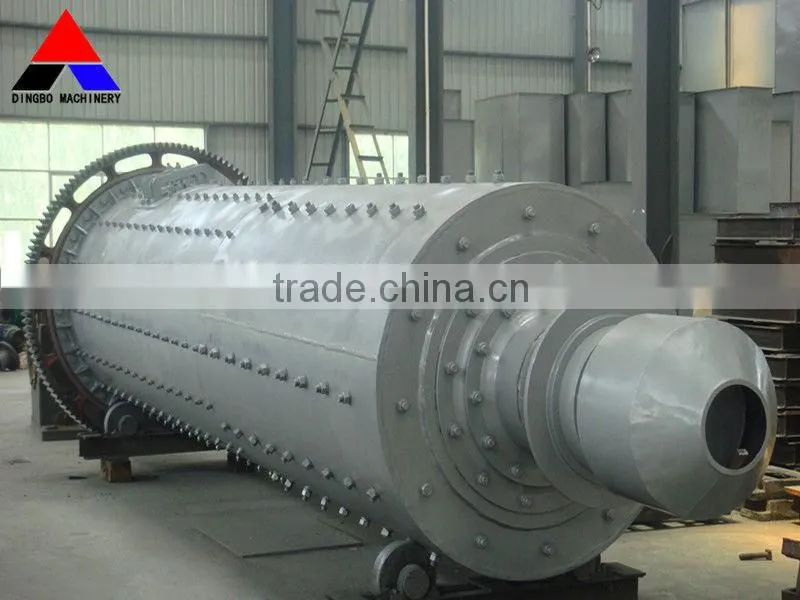

Picture for our ball mill grinder products
Picture for the final Powder products

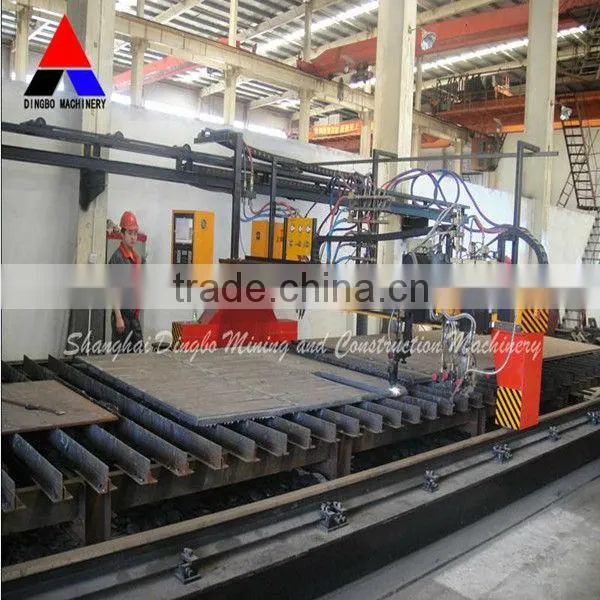

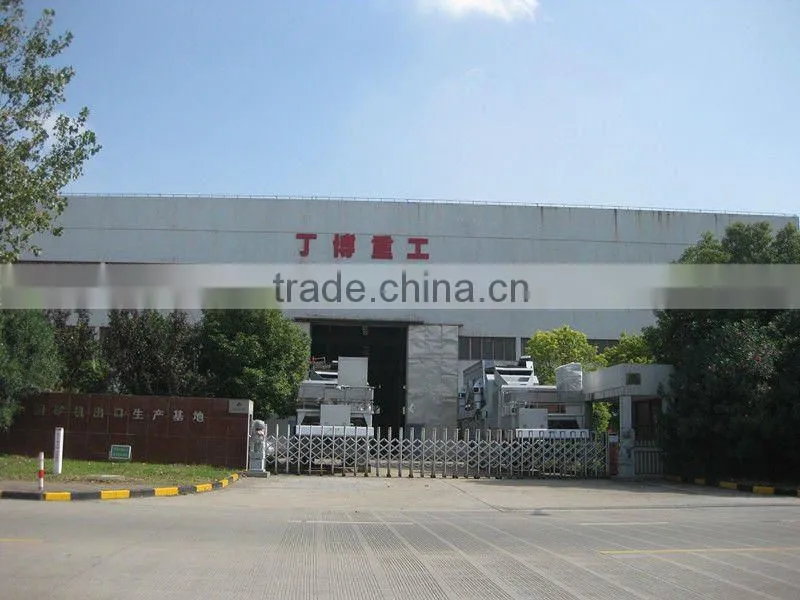

Picture for the factory
Company Profile
Shanghai Dingbo Heavy Industry Machinery Co., Ltd., located in Pudong New District of Shanghai, China, is a large enterprise specialized in the research, manufacture and sales of stone crushing and screening plants,coarse grinding mill and ultrafine powder mill equipments, covering an area of forty thousand square meters.
As one of the pioneer manufacturers, we have been engaged in crushers and micron grinding mills for over 20 years. And we still insist on the communication and cooperation with prestigious scientific research institutions to strengthen the ability in machinery design, production, maintenance, testing and reform. With several years' efforts, Dingbo now grows to be a first-class manufacturer of machineries with a complete advanced production system for superb equipment.
Our popular products include:
1) Stone crushers: jaw crushers, hammer crushers, impact crushers, roller crushers, cone crushers, fine stone crushers, vertical combination crushers, vertical impact crushers and so on.
2) Grinding mills: ball mills, cement mills, ceramic mills, raymond mills, micropowder mills and so on.
3) Ore beneficiation machines: magnetic separators, flotation machines, spiral chutes, spiral classifiers, shaking tables, mixed barrels, jiggers, centrifugal separators and so on.
4) Screens: vibrating screens, drum screens, rotary screens, linear screens and so on.
