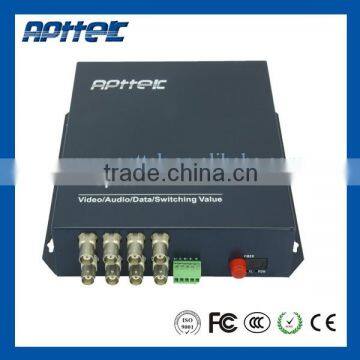

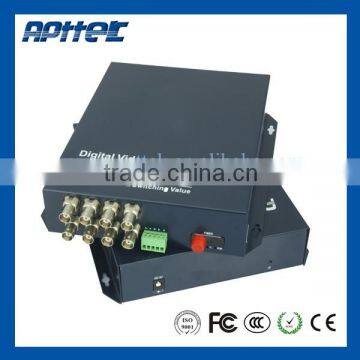

FTTH lightning 8 channel ftth optical receiver 12 months warranty
ftth optical receiver FTTH lightning 8 channel ftth optical receiver 12 months warranty
APT prosper Technology Co.,Ltd was founded in 2004,located at the central part of Longgang District,Shenzhen.We are a high tech enterprise and specialize in the research,production marketing and service in optical communication field with our independent brands APTTEK.Main product are:Ethernet media converter,Digital video optic transceiver and optical module.
With the unceasing development,APT provide service and management with the purpose of MUTUAL BENEFITS and the mission of SKILL IN QUALITY SEPCIALIZED IN SERVICE,offering best service and exquisite products to you-our honored customers.
To make the quality guaranteed and improvement,we strictly operated according to the ISO9001:2008 quality control system,CCC,CE standard.We pay great attention to the cultivation of talents,maximizing the employees potential with humanized management to boost staffs greatly;and providing a comprehensive training and guidance,continuously improving our process increase efficiency and reduce the waste to strength competitive power.Our constantly introducing data and video optical transmissions are widely used among the domestic operators and industry users with customer’s praise.The strategy of going out,our oversea sales department successful enlarge overseas users as a global partner.
Our goal is continuously satisfy our customers,provide high quality products and services to global partners,with first class technical support and solutions promote the development of the information of the information net construction.
ftth optical receiver FTTH lightning 8 channel ftth optical receiver 12 months warranty
Features:
8 bit digital video coding
All-digital uncompressed video transfer,stable reliable function
Wall-hung type and 19 inches/2U chassis card for choice
Adaptive data rate,without setting
Automatic compatible with PAL,NTSC and SECAM video format
With a APC circuit,Output optical power constant,widely dynamic range
Statue LED can indicate system work status
Fiber transfer technology with WDM/CWDM/DWDM
Designed as industry-specific module,function expend easily
Special lightning protection design
No debugging after installing,easily for maintain
Support with customized and OEM machining
Video Characters:
Video port QTY:1,2,4,8,16 Channel can do as command
Video port type:BNC
Input/output impedance:75 Ω(unbalance)
Input/output voltage:1 Vp-p (Peak-peak)
Video banwidth:8 MHz
Sampling rate:16 MHz high speed
Differential gain:(10~90% APL)DG<10%(typical)
Differential phase:(10~90%APL)DP<0.7 o(Typical)
Video SNR(Weighting):S/N≥70dB(Max optical link loss)
ftth catv optical receiver FTTH lightning 8 channel ftth optical receiver 12 months warranty
General Index:
Data port port type:Standard industrial connector
Data signal format:RS232,RS422,RS485
Bit rate:0~256
Bit error rate:≤10-9
Working temperature:-20~70 ℃
Humidity:0~95%(No condensation)
Power supply:AC85V~265 V/DC 5V
Power rate:2.5 W
MTBF:≥10,000 hours
ftth optical receiver related parameter FTTH lightning 8 channel ftth optical receiver 12 months warranty
Fiber type |
Interface |
Emission wavelength (nm) |
Transmitting power (dBm) |
Receiving sensitivity (dBm) |
Light degree of Saturation (dB) |
Light Loss (dBm/Km) |
Reach distance (Km) |
Multi mode |
ST/FC |
1310 |
-18~-16 |
-31 |
-9 |
1 |
0~3 |
|
FC/FC |
1310 |
-18~-8 |
-35 |
-8 |
0.5 |
0~20 |
Single mode |
FC/FC |
1310 |
-8~-3 |
-35 |
-3 |
0.5 |
0~40 |
|
FC/FC |
1550 |
-5~0 |
-35 |
+2 |
0.25 |
0~60 |
FTTH lightning 8 channel ftth optical receiver 12 months warranty common question
Q1 . What your MOQ?
A1 .1 set is ok,whatever how many you need,and we will also give you the best service.
Q2.What certification did you get?
A2 : Our product strict operate the ISO9001:2008 quality control system and we passed the CE,CCC,ROHS and SGS test,you can trust us.
Q3 :What about your package and delivery,will it broke during shipping?
A3:You don't need to worry about the package,we will use shockproof case for delivering.
Q4.What your common delivery way?
A4:By air,sea and express(Ups,Fedex,TNT,EMS...)We will make a perfect delivery plan for you.
Q5.Tell me some detail about warrant time.
A5:We give you the promise if any question during 1 year and not cause by human factors,we will fix it.
Any question,contact me directly.
