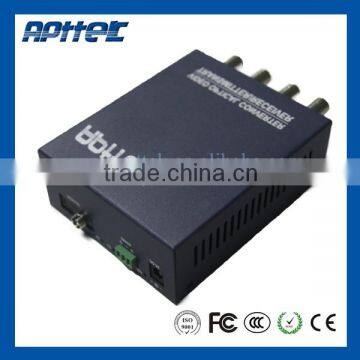

Durable rs 485 audio to fiber converter with 20 Km reach distance
Durable rs 485 audio to fiber converter with 20 Km reach distance
Application
Durable rs 485 audio to fiber converter with 20 Km reach distance Features
1.8 bit digital video coding
2.All-digital uncompressed video transfer,stable reliable function
3.Wall-Hung type and 19-inches/2U chassis card pack for choice
4.Adaptive data rate,without setting
5.Automatic compatible with PAL,NTSC and SECAM video format
6.With a APC circuit,output optical power constant,widely dynamic range
7.Status LED can indicate system work status
8.Fiber transfer technology with WDM/CWDM/DWDM
9.Designed as Industry-specific module,function expand easily
10.Special lightning protection design
11.Support with customized and OEM machining
Durable rs 485 audio to fiber converter with 20 Km reach distance General Index
1.Working temperature:-20~70 ℃
2.Store temperature:-40~85 ℃
3.Relative humidity:0~95%
4.Size:Wall-Hung (80*95*26mm)
5.Power:AC 85V~265V,DC 5V
6.Power rate:2.5 W
7.MTBF:≥10,000 hours
Durable rs 485 audio to fiber converter with 20 Km reach distance Video Characters:
Video port QTY:1,2,4,8,16 Channel can do as command
Video port type:BNC
Input/output impedance:75 Ohm(unbalance)
Input/output voltage:1 Vp-p (Peak-peak)
Video banwidth:8 MHz
Sampling rate:16 MHz high speed
Differential gain:(10~90% APL)DG<10%(typical)
Differential phase:(10~90%APL)DP<0.7 o(Typical)
Video SNR(Weighting):S/N>70dB(Max optical link loss)
Durable rs 485 audio to fiber converter with 20 Km reach distance related products
Fiber type |
Interface |
Emission wavelength (nm) |
Transmitting power (dBm) |
Receiving sensitivity (dBm) |
Light degree of Saturation (dB) |
Light Loss (dBm/Km) |
Reach distance (Km) |
Multi mode |
ST/FC |
1310 |
-18~-16 |
-31 |
-9 |
1 |
0~3 |
|
FC/FC |
1310 |
-18~-8 |
-35 |
-8 |
0.5 |
0~20 |
Single mode |
FC/FC |
1310 |
-8~-3 |
-35 |
-3 |
0.5 |
0~40 |
|
FC/FC |
1550 |
-5~0 |
-35 |
+2 |
0.25 |
0~60 |
Durable rs 485 audio to fiber converter with 20 Km reach distance common questions
Q1 . What your MOQ?
A1 .1 set is ok,whatever how many you need,and we will also give you the best service.
Q2.What certification did you get?
A2 : Our product strict operate the ISO9001:2008 quality control system and we passed the CE,CCC,ROHS and SGS test,you can trust us.
Q3 :What about your package and delivery,will it broke during shipping?
A3:You don't need to worry about the package,we will use shockproof case for delivering.
Q4.What your common delivery way?
A4:By air,sea and express(Ups,Fedex,TNT,EMS...)We will make a perfect delivery plan for you.
Q5.Tell me some detail about warrant time.
A5:We give you the promise if any question during 1 year and not cause by human factors,we will fix it.
