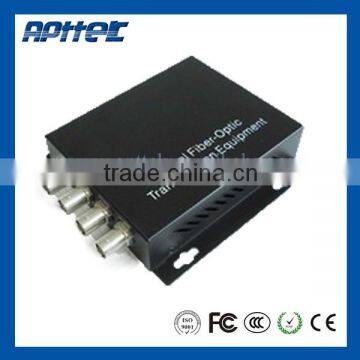

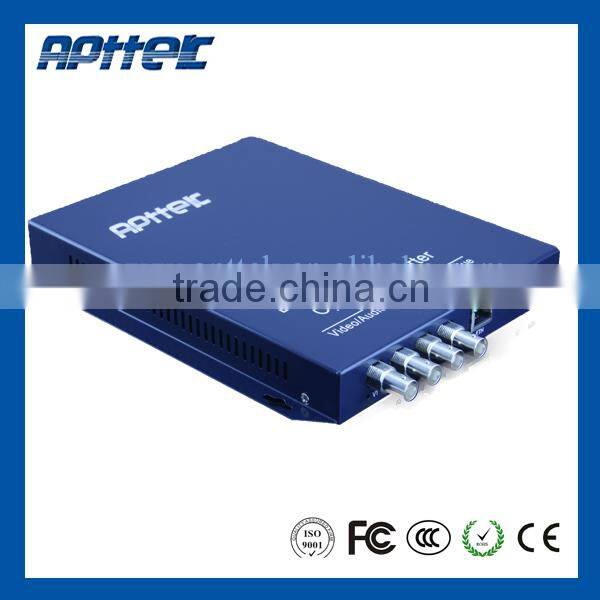

Ftth 4 channel bnc to fiber video converter
Application
Features
1.8 bit digital video coding
2.All-digital uncompressed video transfer,stable reliable function
3.Wall-Hung type and 19-inches/2U chassis card pack for choice
4.Adaptive data rate,without setting
5.Automatic compatible with PAL,NTSC and SECAM video format
6.With a APC circuit,output optical power constant,widely dynamic range
7.Status LED can indicate system work status
8.Fiber transfer technology with WDM/CWDM/DWDM
9.Designed as Industry-specific module,function expand easily
10.Special lightning protection design
11.Support with customized and OEM machining
General Index
1.Working temperature:-20~70 ℃
2.Store temperature:-40~85 ℃
3.Relative humidity:0~95%
4.Size:Wall-Hung (80*95*26mm)
5.Power:AC 85V~265V,DC 5V
6.Power rate:2.5 W
7.MTBF:≥10,000 hours
Video Characters:
Video port QTY:1,2,4,8,16 Channel can do as command
Video port type:BNC
Input/output impedance:75 Ohm(unbalance)
Input/output voltage:1 Vp-p (Peak-peak)
Video banwidth:8 MHz
Sampling rate:16 MHz high speed
Differential gain:(10~90% APL)DG<10%(typical)
Differential phase:(10~90%APL)DP<0.7 o(Typical)
Video SNR(Weighting):S/N>70dB(Max optical link loss)
Fiber type |
Interface |
Emission wavelength (nm) |
Transmitting power (dBm) |
Receiving sensitivity (dBm) |
Light degree of Saturation (dB) |
Light Loss (dBm/Km) |
Reach distance (Km) |
Multi mode |
ST/FC |
1310 |
-18~-16 |
-31 |
-9 |
1 |
0~3 |
|
FC/FC |
1310 |
-18~-8 |
-35 |
-8 |
0.5 |
0~20 |
Single mode |
FC/FC |
1310 |
-8~-3 |
-35 |
-3 |
0.5 |
0~40 |
|
FC/FC |
1550 |
-5~0 |
-35 |
+2 |
0.25 |
0~60 |
Q1 . What your MOQ?
A1 .1 set is ok,whatever how many you need,and we will also give you the best service.
Q2.What certification did you get?
A2 : Our product strict operate the ISO9001:2008 quality control system and we passed the CE,CCC,ROHS and SGS test,you can trust us.
Q3 :What about your package and delivery,will it broke during shipping?
A3:You don't need to worry about the package,we will use shockproof case for delivering.
Q4.What your common delivery way?
A4:By air,sea and express(Ups,Fedex,TNT,EMS...)We will make a perfect delivery plan for you.
Q5.Tell me some detail about warrant time.
A5:We give you the promise if any question during 1 year and not cause by human factors,we will fix it.
Need more information,leave me an inquiry or contact me directly.
