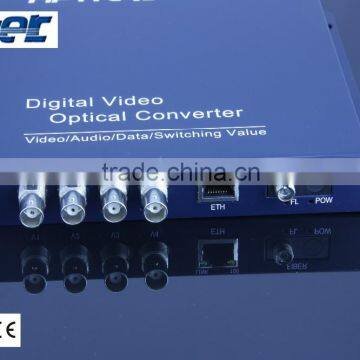

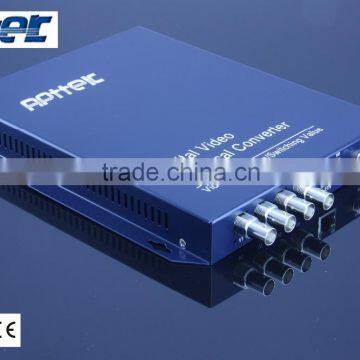

20Km BNC video converter analog to fiber optic converter audio without radio

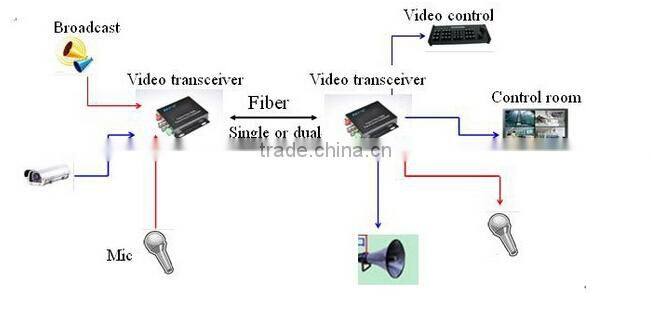

Application field
• Intelligent Transportation System
• Connection of Sub-network for Surveillance Center
• Public Security Surveillance
• High way&Toll Station Surveillance
• High Quality Video Conference
• Industrial Closed Circuit Television Surveillance
• TV-live,audio,phone,ethernet,transmission
Features:
8 bit digital video coding
All-digital uncompressed video transfer,stable reliable function
Wall-hung type and 19 inches/2U chassis card for choice
Adaptive data rate,without setting
Automatic compatible with PAL,NTSC and SECAM video format
With a APC circuit,Output optical power constant,widely dynamic range
Statue LED can indicate system work status
Fiber transfer technology with WDM/CWDM/DWDM
Designed as industry-specific module,function expend easily
Special lightning protection design
No debugging after installing,easily for maintain
Support with customized and OEM machining
Video Characters:
Video port QTY:1,2,4,8,16 Channel can do as command
Video port type:BNC
Input/output impedance:75 Ω(unbalance)
Input/output voltage:1 Vp-p (Peak-peak)
Video banwidth:8 MHz
Sampling rate:16 MHz high speed
Differential gain:(10~90% APL)DG<10%(typical)
Differential phase:(10~90%APL)DP<0.7 o(Typical)
Video SNR(Weighting):S/N≥70dB(Max optical link loss)
General Index:
Data port port type:Standard industrial connector
Data signal format:RS232,RS422,RS485
Bit rate:0~256
Bit error rate:≤10-9
Working temperature:-20~70 degree
Humidity:0~95%(No condensation)
Power supply:AC85V~265 V/DC 5V
Power rate:2.5 W
MTBF:≥10,000 hours
Package:
Main body *1
Manual *1
Charger * 1
Warranty card *1
All this in a carton case
Delivery:
Leading time:5~15 working days
Delivery way:By air,sea and express(DHL,EMS,Ups,Fedex,Tnt)
Payment:
T/T,Paypal,Western Union
Q1 . What your MOQ?
A1 .1 set is ok,whatever how many you need,and we will also give you the best service.
Q2.What certification did you get?
A2 : Our product strict operate the ISO9001:2008 quality control system and we passed the CE,CCC,ROHS and SGS test,you can trust us.
Q3 :What about your package and delivery,will it broke during shipping?
A3:You don't need to worry about the package,we will use shockproof case for delivering.
Q4.What your common delivery way?
A4:By air,sea and express(Ups,Fedex,TNT,EMS...)We will make a perfect delivery plan for you.
Q5.Tell me some detail about warrant time.
A5:We give you the promise if any question during 1 year and not cause by human factors,we will fix it.
Need more information,leave me an inquiry or contact me directly.
